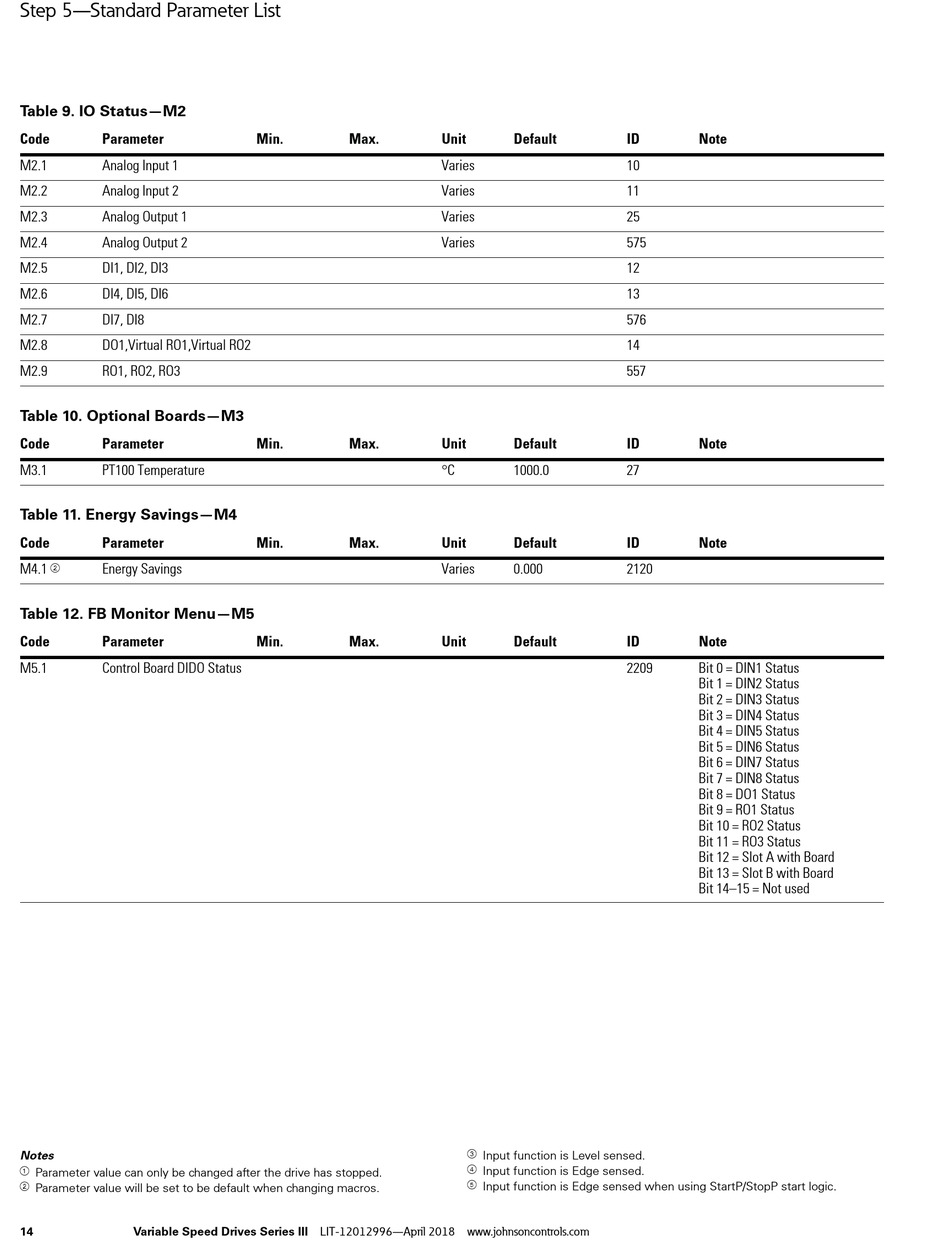

Step 5—Standard Parameter List
Table 9. IO Status—M2
Code Parameter
M2.1 Analog Input 1
M2.2 Analog Input 2
M2.3 Analog Output 1
M2.4 Analog Output 2
M2.5 DI1, DI2, DI3
M2.6 DI4, DI5, DI6
M2.7 DI7, DI8
M2.8 DO1,Virtual RO1,Virtual RO2
M2.9 RO1, RO2, RO3
Table 10. Optional Boards—M3
Code Parameter
M3.1 PT100 Temperature
Table 11. Energy Savings—M4
Code Parameter
M4.1 2 Energy Savings
Table 12. FB Monitor Menu—M5
Code Parameter
M5.1 Control Board DIDO Status
Notes
1
Parameter value can only be changed after the drive has stopped.
2
Parameter value will be set to be default when changing macros.
14 Variable Speed Drives Series III LIT-12012996—April 2018 www.johnsoncontrols.com
Min. Max.
Min. Max.
Min. Max.
Min. Max.
Unit Default
Varies
Varies
Varies
Varies
Unit Default
°C 1000.0
Unit Default
Varies 0.000
Unit Default
3
Input function is Level sensed.
4
Input function is Edge sensed.
5
Input function is Edge sensed when using StartP/StopP start logic.
ID Note
10
11
25
575
12
13
576
14
557
ID Note
27
ID Note
2120
ID Note
2209 Bit 0 = DIN1 Status
Bit 1 = DIN2 Status
Bit 2 = DIN3 Status
Bit 3 = DIN4 Status
Bit 4 = DIN5 Status
Bit 5 = DIN6 Status
Bit 6 = DIN7 Status
Bit 7 = DIN8 Status
Bit 8 = DO1 Status
Bit 9 = RO1 Status
Bit 10 = RO2 Status
Bit 11 = RO3 Status
Bit 12 = Slot A with Board
Bit 13 = Slot B with Board
Bit 14–15 = Not used
