Johnson Controls VS3-005-4-UL1-0 Quick Start Manual page 41

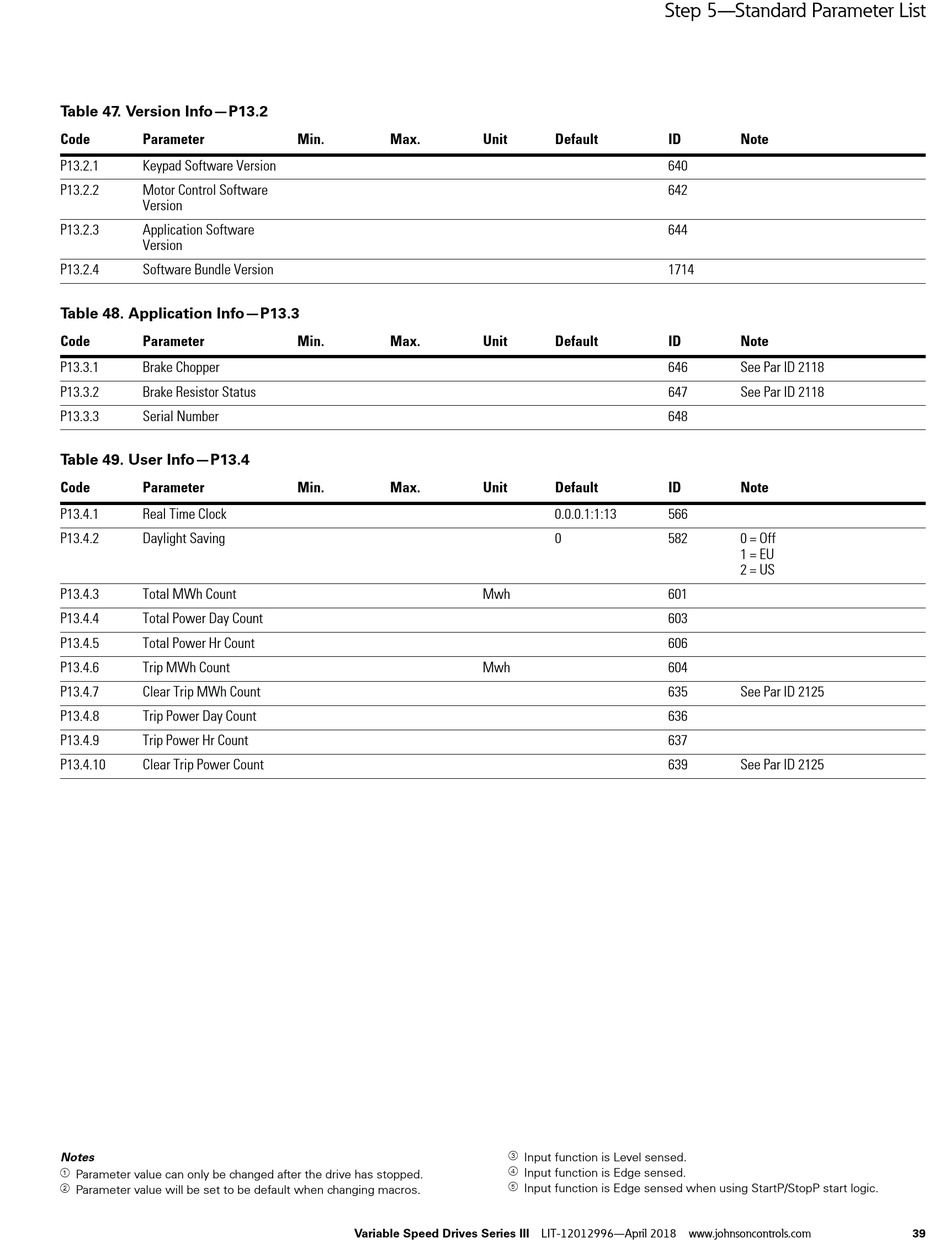

Table 47. Version Info—P13.2
Code Parameter
P13.2.1 Keypad Software Version
P13.2.2 Motor Control Software
Version
P13.2.3 Application Software
Version
P13.2.4 Software Bundle Version
Table 48. Application Info—P13.3
Code Parameter
P13.3.1 Brake Chopper
P13.3.2 Brake Resistor Status
P13.3.3 Serial Number
Table 49. User Info—P13.4
Code Parameter
P13.4.1 Real Time Clock
P13.4.2 Daylight Saving
P13.4.3 Total MWh Count
P13.4.4 Total Power Day Count
P13.4.5 Total Power Hr Count
P13.4.6 Trip MWh Count
P13.4.7 Clear Trip MWh Count
P13.4.8 Trip Power Day Count
P13.4.9 Trip Power Hr Count
P13.4.10 Clear Trip Power Count
Notes
1
Parameter value can only be changed after the drive has stopped.
2
Parameter value will be set to be default when changing macros.
Min. Max.
Min. Max.
Min. Max.
Variable Speed Drives Series III LIT-12012996—April 2018 www.johnsoncontrols.com
Unit Default
Unit Default
Unit Default
0.0.0.1:1:13
0
Mwh
Mwh
3
Input function is Level sensed.
4
Input function is Edge sensed.
5
Input function is Edge sensed when using StartP/StopP start logic.
Step 5—Standard Parameter List
ID Note
640
642
644
1714
ID Note
646 See Par ID 2118
647 See Par ID 2118
648
ID Note
566
582 0 = Off
1 = EU
2 = US
601
603
606
604
635 See Par ID 2125
636
637
639 See Par ID 2125
39
