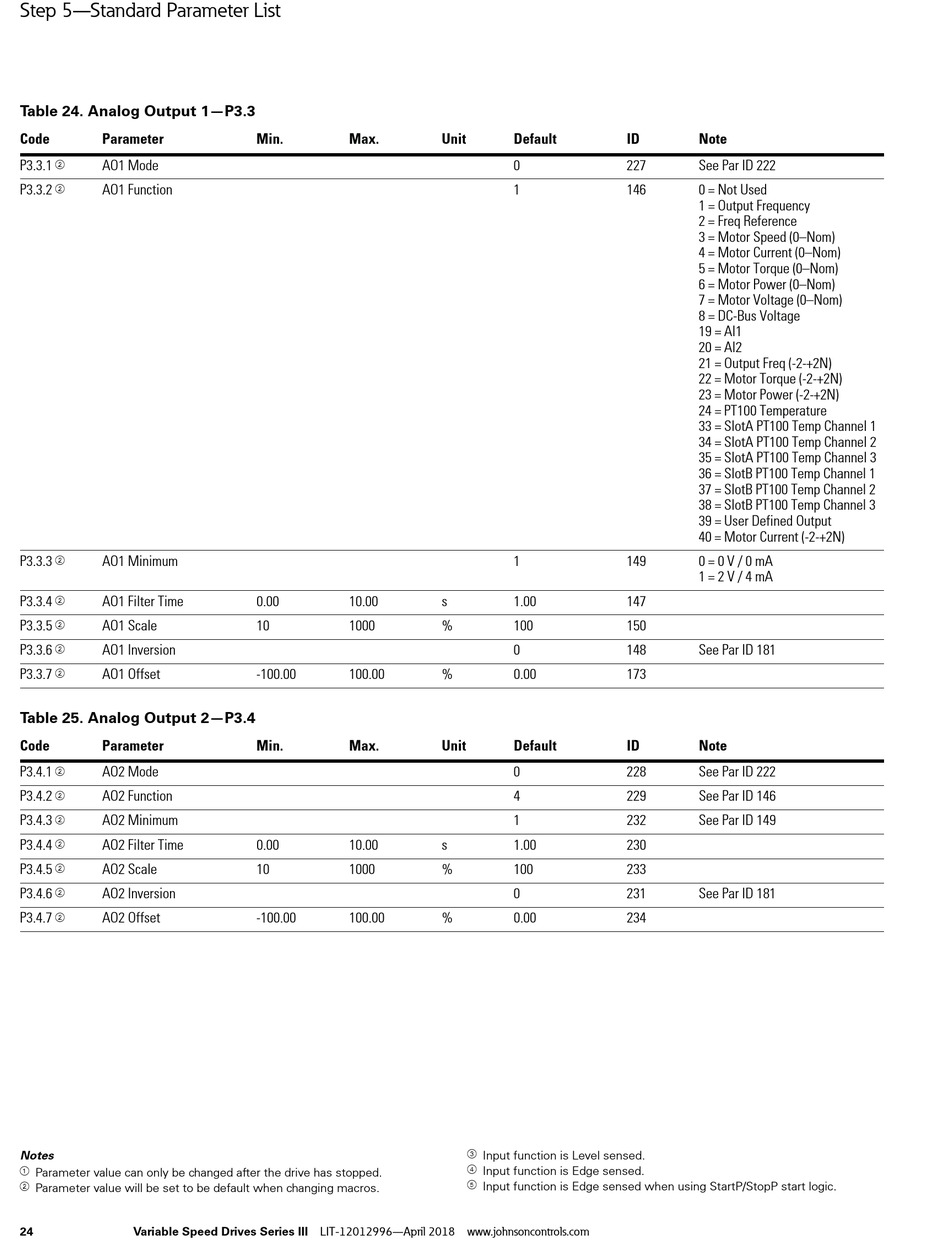

Step 5—Standard Parameter List
Table 24. Analog Output 1—P3.3
Code Parameter
P3.3.1 2 AO1 Mode
P3.3.2 AO1 Function
2
P3.3.3 2 AO1 Minimum
P3.3.4 AO1 Filter Time
2
P3.3.5 2 AO1 Scale
P3.3.6 AO1 Inversion
2
P3.3.7 2 AO1 Offset
Table 25. Analog Output 2—P3.4
Code Parameter
P3.4.1 2 AO2 Mode
P3.4.2 AO2 Function
2
P3.4.3 2 AO2 Minimum
P3.4.4 AO2 Filter Time
2
P3.4.5 2 AO2 Scale
P3.4.6 AO2 Inversion
2
P3.4.7 2 AO2 Offset
Notes
1
Parameter value can only be changed after the drive has stopped.
2
Parameter value will be set to be default when changing macros.
24 Variable Speed Drives Series III LIT-12012996—April 2018 www.johnsoncontrols.com
Min. Max.
0.00 10.00
10 1000
-100.00 100.00
Min. Max.
0.00 10.00
10 1000
-100.00 100.00
Unit Default
0
1
1
s 1.00
% 100
0
% 0.00
Unit Default
0
4
1
s 1.00
% 100
0
% 0.00
3
Input function is Level sensed.
4
Input function is Edge sensed.
5
Input function is Edge sensed when using StartP/StopP start logic.
ID Note
227 See Par ID 222
146 0 = Not Used
1 = Output Frequency
2 = Freq Reference
3 = Motor Speed (0–Nom)
4 = Motor Current (0–Nom)
5 = Motor Torque (0–Nom)
6 = Motor Power (0–Nom)
7 = Motor Voltage (0–Nom)
8 = DC-Bus Voltage
19 = AI1
20 = AI2
21 = Output Freq (-2-+2N)
22 = Motor Torque (-2-+2N)
23 = Motor Power (-2-+2N)
24 = PT100 Temperature
33 = SlotA PT100 Temp Channel 1
34 = SlotA PT100 Temp Channel 2
35 = SlotA PT100 Temp Channel 3
36 = SlotB PT100 Temp Channel 1
37 = SlotB PT100 Temp Channel 2
38 = SlotB PT100 Temp Channel 3
39 = User Defined Output
40 = Motor Current (-2-+2N)
149 0 = 0 V / 0 mA
1 = 2 V / 4 mA
147
150
148 See Par ID 181
173
ID Note
228 See Par ID 222
229 See Par ID 146
232 See Par ID 149
230
233
231 See Par ID 181
234
