Step 4—Startup Wizard
Step 4—Startup Wizard
Startup Wizard
In the Startup Wizard, you will be prompted for essential
information needed by the drive so that it can start
controlling your process. In the Wizard, you will need

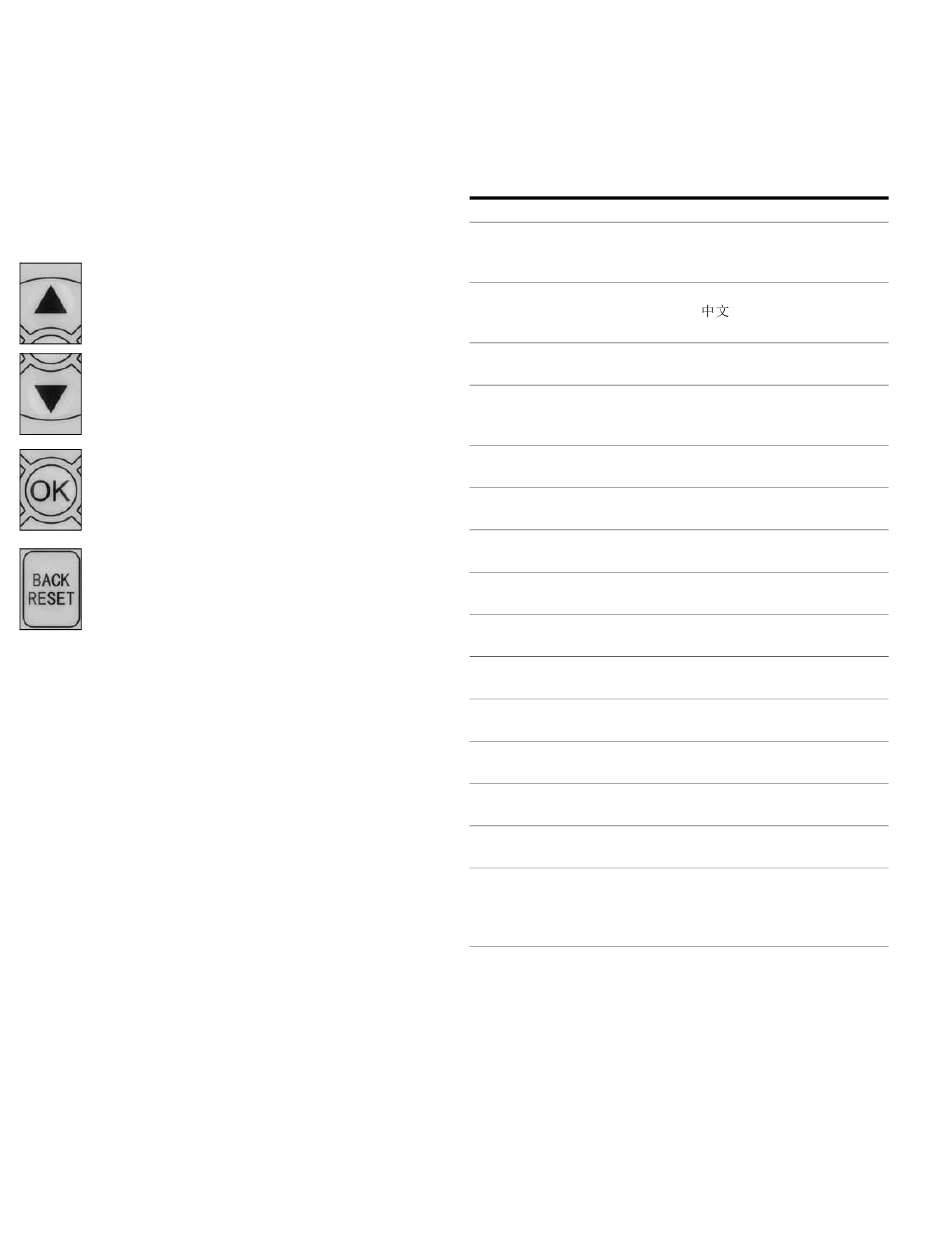

the following keypad buttons:
Up/Down buttons.
Use these to change value.
OK button.
Confirm selection with this button, and enter into
next question.
Back/Reset button.
If this button was pressed at the first question,
the Startup Wizard will be cancelled.
Once you have connected power to your frequency
converter, and the Startup Wizard is enabled, follow
these instructions to easily set up your drive.
8 Variable Speed Drives Series III LIT-12012996—April 2018 www.johnsoncontrols.com
Table 5. Startup Wizard Instructions
Item Description
1 Startup Wizard
2 Application
3 Language
4 Real Time Clock
5 Daylight Saving
6 Min Frequency
7 Max Frequency
8 Motor Nom Current
9 Current Limit
10 Motor Nom Speed
11 Motor PF
12 Motor Nom Voltage
13 Motor Nom Frequency
14 Accel Time 1
15 Decel Time 1
16 Hand Control Place
Press OK?
0 = Basic
1 = PID
2 = Advanced
0 = English
1 =
2 = Deutsch
yy.mm.dd
hh:mm:ss
0 = Off
1 = EU
2 = US
Min: 0.00Hz
Max: Max Frequency
Min: Min Frequency
Max: 400.00Hz
Min: 0.1A
Max: 500.0A
Min: Ih*1/10
Max: Ih*2
Min: Ih*1/10
Max: Ih*2
Min: 0.30
Max: 1.0
Min: 180V
Max: 690V
Min: 30.00 Hz
Max: 400.00 Hz
Min: 0.1 sec
Max:3000.0 sec
Min: 0.1 sec
Max:3000.0 sec
0 = Keypad
1 = I/O Terminal Start 1
2 = I/O Terminal Start 2
3 = Fieldbus
