Johnson Controls VS3-005-4-UL1-0 Quick Start Manual page 39

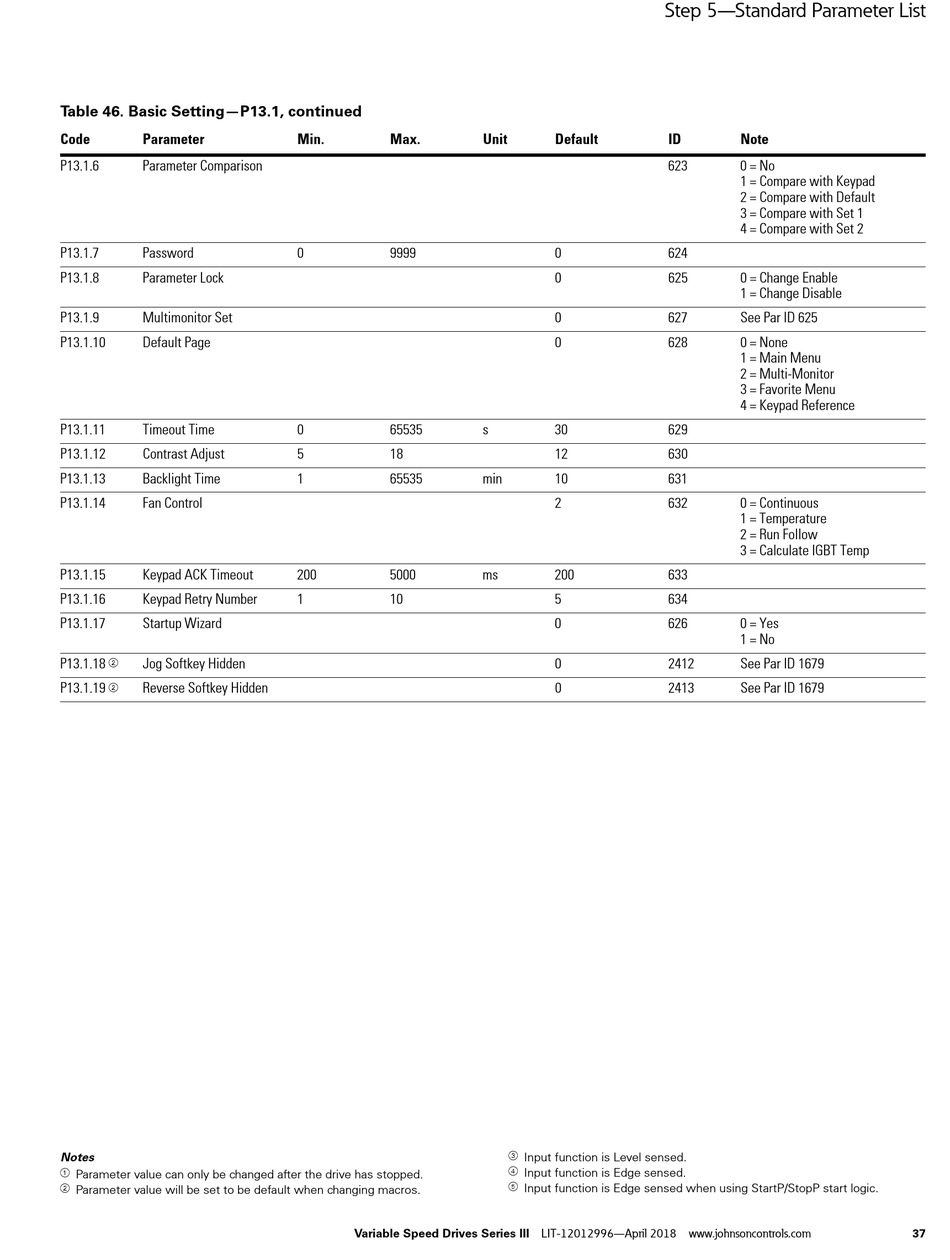

Table 46. Basic Setting—P13.1, continued
Code Parameter
P13.1.6 Parameter Comparison
P13.1.7 Password
P13.1.8 Parameter Lock
P13.1.9 Multimonitor Set
P13.1.10 Default Page
P13.1.11 Timeout Time
P13.1.12 Contrast Adjust
P13.1.13 Backlight Time
P13.1.14 Fan Control
P13.1.15 Keypad ACK Timeout
P13.1.16 Keypad Retry Number
P13.1.17 Startup Wizard
P13.1.18 2 Jog Softkey Hidden
P13.1.19 Reverse Softkey Hidden
2
Notes
1
Parameter value can only be changed after the drive has stopped.
2
Parameter value will be set to be default when changing macros.
Min. Max.
0 9999
0 65535
5 18
1 65535
200 5000
1 10
Variable Speed Drives Series III LIT-12012996—April 2018 www.johnsoncontrols.com
Unit Default
0
0
0
0
s 30
12
min 10
2
ms 200
5
0
0
0
3
Input function is Level sensed.
4
Input function is Edge sensed.
5
Input function is Edge sensed when using StartP/StopP start logic.
Step 5—Standard Parameter List
ID Note
623 0 = No
1 = Compare with Keypad
2 = Compare with Default
3 = Compare with Set 1
4 = Compare with Set 2
624
625 0 = Change Enable
1 = Change Disable
627 See Par ID 625
628 0 = None
1 = Main Menu
2 = Multi-Monitor
3 = Favorite Menu
4 = Keypad Reference
629
630
631
632 0 = Continuous
1 = Temperature
2 = Run Follow
3 = Calculate IGBT Temp
633
634
626 0 = Yes
1 = No
2412 See Par ID 1679
2413 See Par ID 1679
37
