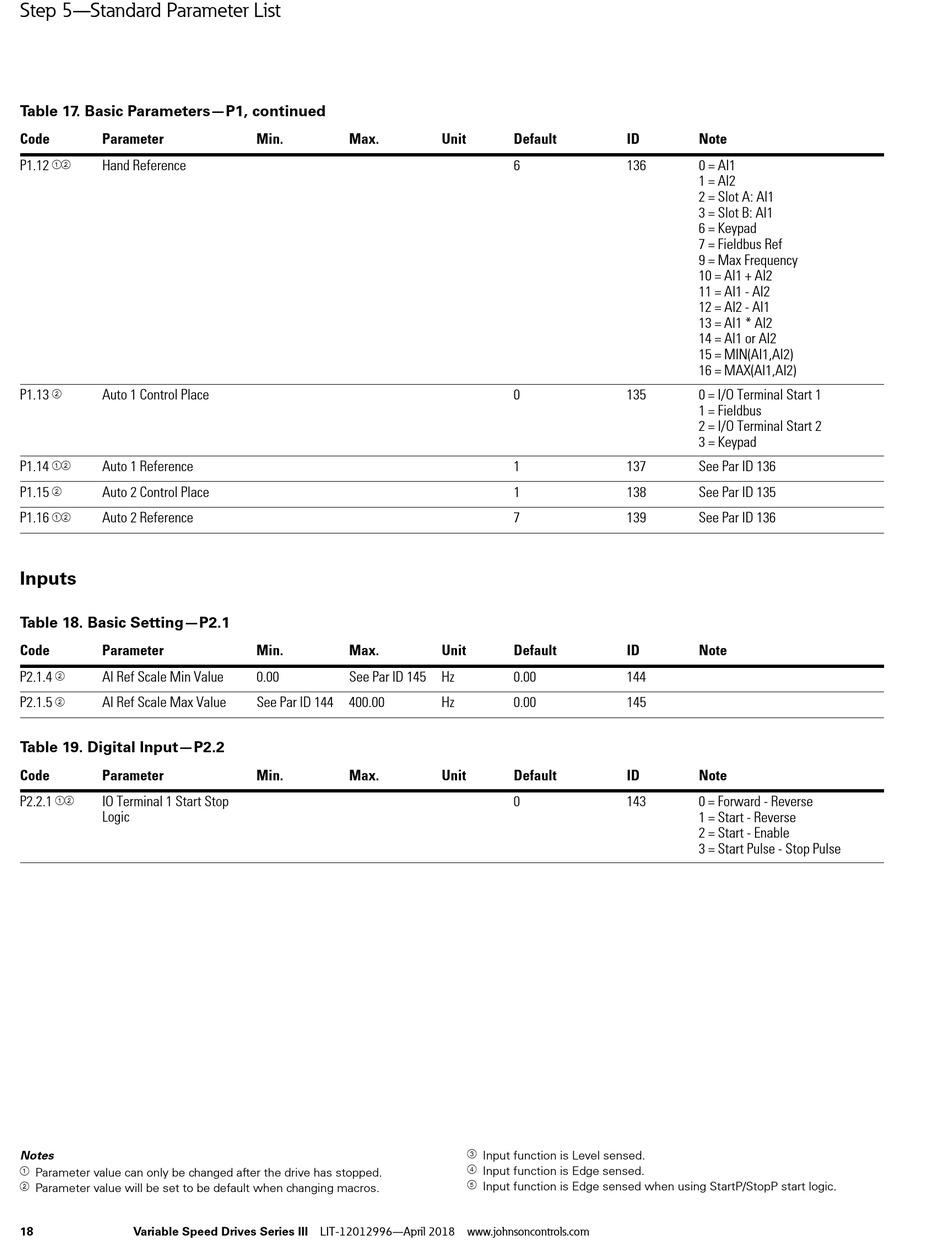

Step 5—Standard Parameter List
Table 17. Basic Parameters—P1, continued
Code Parameter
P1.12 12 Hand Reference
P1.13 Auto 1 Control Place
2
P1.14 Auto 1 Reference
12
P1.15 Auto 2 Control Place
2
P1.16 Auto 2 Reference
12
Inputs
Table 18. Basic Setting—P2.1
Code Parameter
P2.1.4 AI Ref Scale Min Value
2
P2.1.5 AI Ref Scale Max Value
2
Table 19. Digital Input—P2.2
Code Parameter
P2.2.1 12 IO Terminal 1 Start Stop
Logic
Notes
1
Parameter value can only be changed after the drive has stopped.
2
Parameter value will be set to be default when changing macros.
18 Variable Speed Drives Series III LIT-12012996—April 2018 www.johnsoncontrols.com
Min. Max.
Min. Max.
0.00 See Par ID 145
See Par ID 144 400.00
Min. Max.
Unit Default
6
0
1
1
7
Unit Default
Hz 0.00
Hz 0.00
Unit Default
0
3
Input function is Level sensed.
4
Input function is Edge sensed.
5
Input function is Edge sensed when using StartP/StopP start logic.
ID Note
136 0 = AI1
1 = AI2
2 = Slot A: AI1
3 = Slot B: AI1
6 = Keypad
7 = Fieldbus Ref
9 = Max Frequency
10 = AI1 + AI2
11 = AI1 - AI2
12 = AI2 - AI1
13 = AI1 * AI2
14 = AI1 or AI2
15 = MIN(AI1,AI2)
16 = MAX(AI1,AI2)
135 0 = I/O Terminal Start 1
1 = Fieldbus
2 = I/O Terminal Start 2
3 = Keypad
137 See Par ID 136
138 See Par ID 135
139 See Par ID 136
ID Note
144
145
ID Note
143 0 = Forward - Reverse
1 = Start - Reverse
2 = Start - Enable
3 = Start Pulse - Stop Pulse
