Configuration

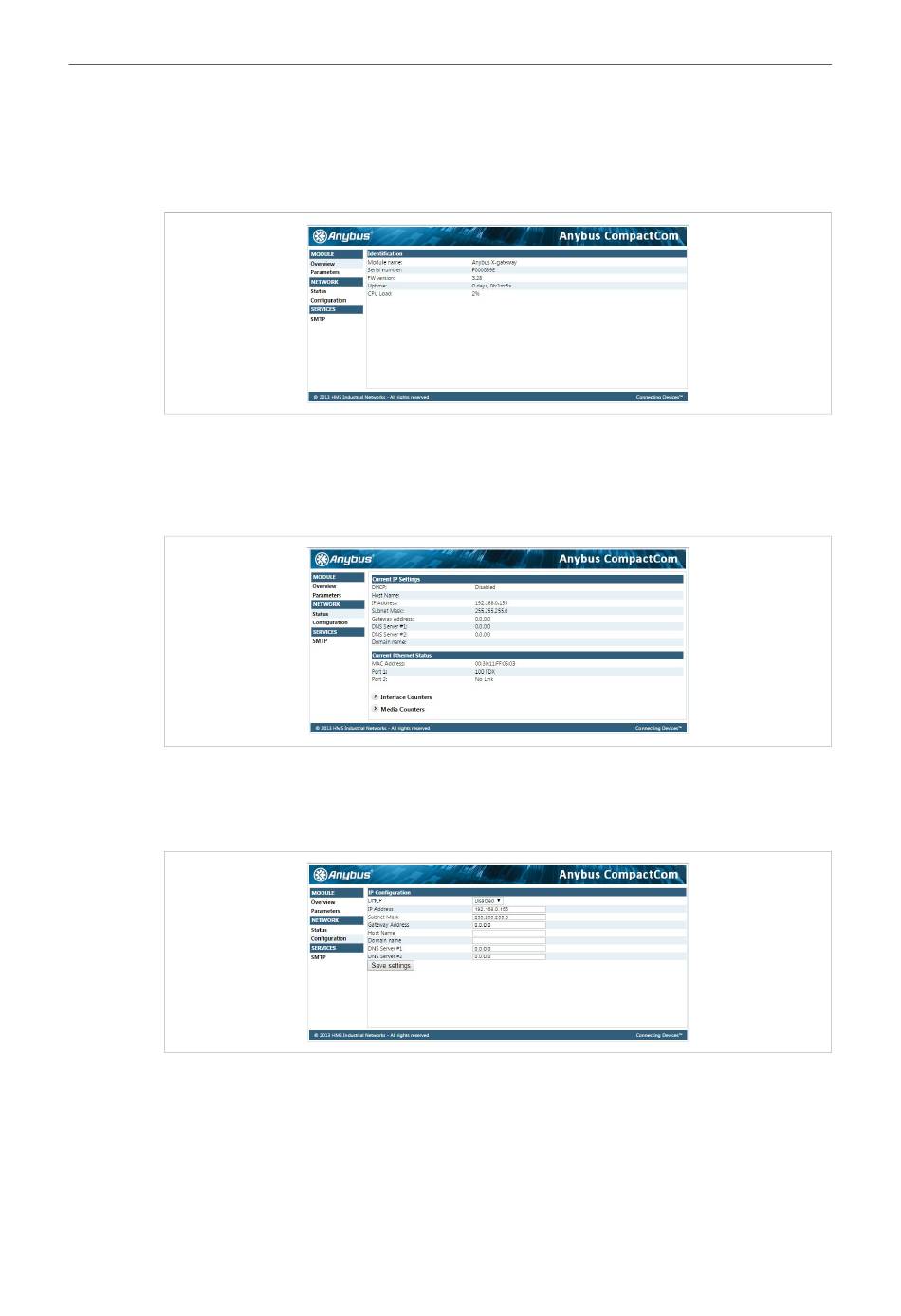

4.3.3 Web Pages
Network configuration settings and status of the PROFINET IRT network interface can be
accessed by pointing a web browser to the IP address of the interface.
Module Overview
Fig. 16 Overview tab
Provides basic information about the X-gateway including the serial number and the installed
firmware version.
Network Status
Fig. 17 Status tab
Displays an overview of the current network status.
Network Configuration
Fig. 18 Configuration tab
Provides access to the TCP/IP network settings. These parameters can also be configured using
the IPconfig tool.
