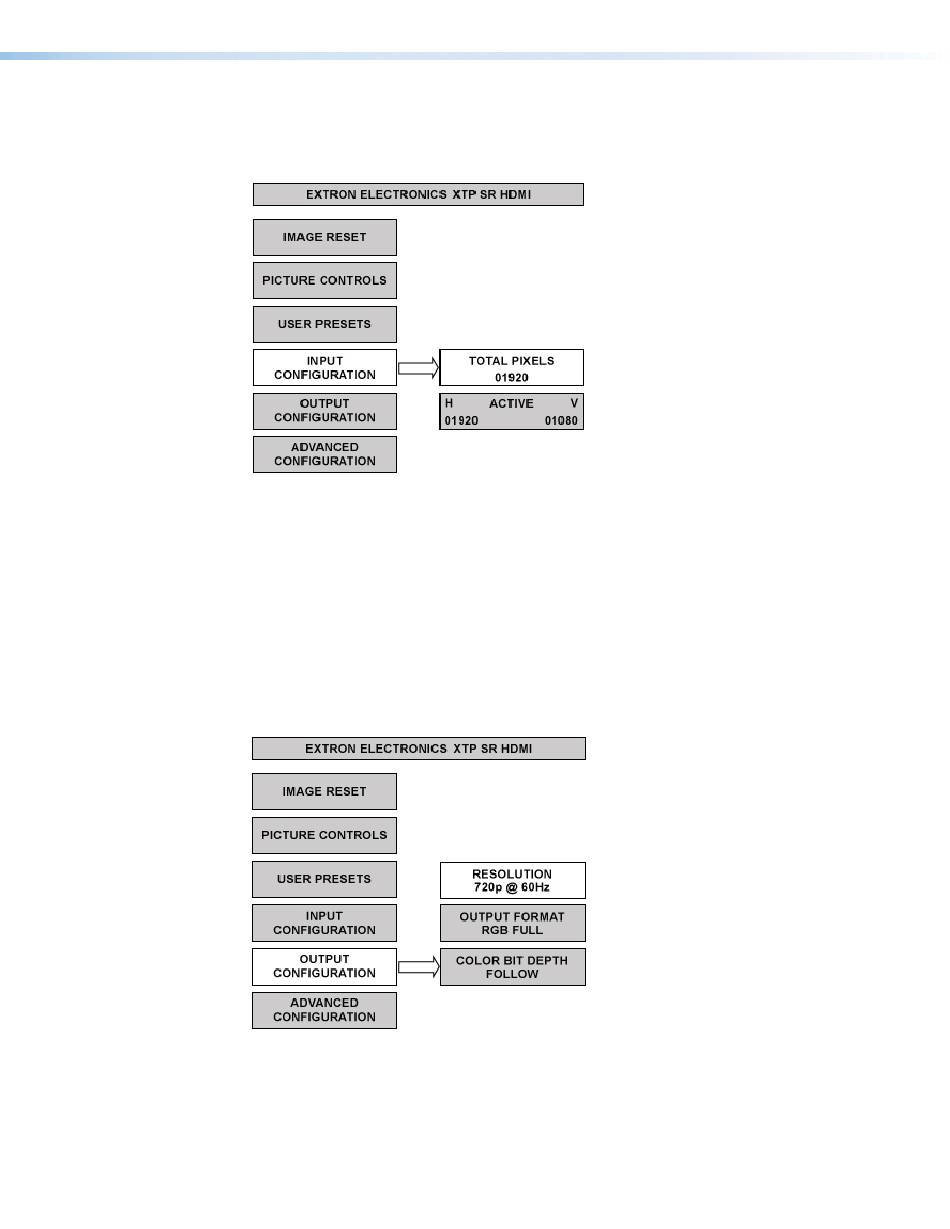

Input Configuration Submenu

The
Input Configuration
active pixels of the input signal.
Figure 13.
Total pixels — Displays the total pixels of the input signal. This is not configurable.
Active — Displays the active horizontal (H) pixels and vertical (V) lines of the input signal.
These are not configurable.

Output Configuration Submenu

The
Output Configuration
refresh rate. Output format and color bit depth settings are not configurable from the OSD.
To configure either setting, use SIS commands (see
page 28) or use the XTP System Configuration Software (see
page 39).
Figure 14.
submenu displays the total pixels and horizontal and vertical
Input Configuration Submenu
submenu is used to configure of the output resolution and
Output Configuration Submenu
Output Configuration Commands
Input/Output tab
XTP SR HDMI Scaling Receiver • Operation
on
on
19
