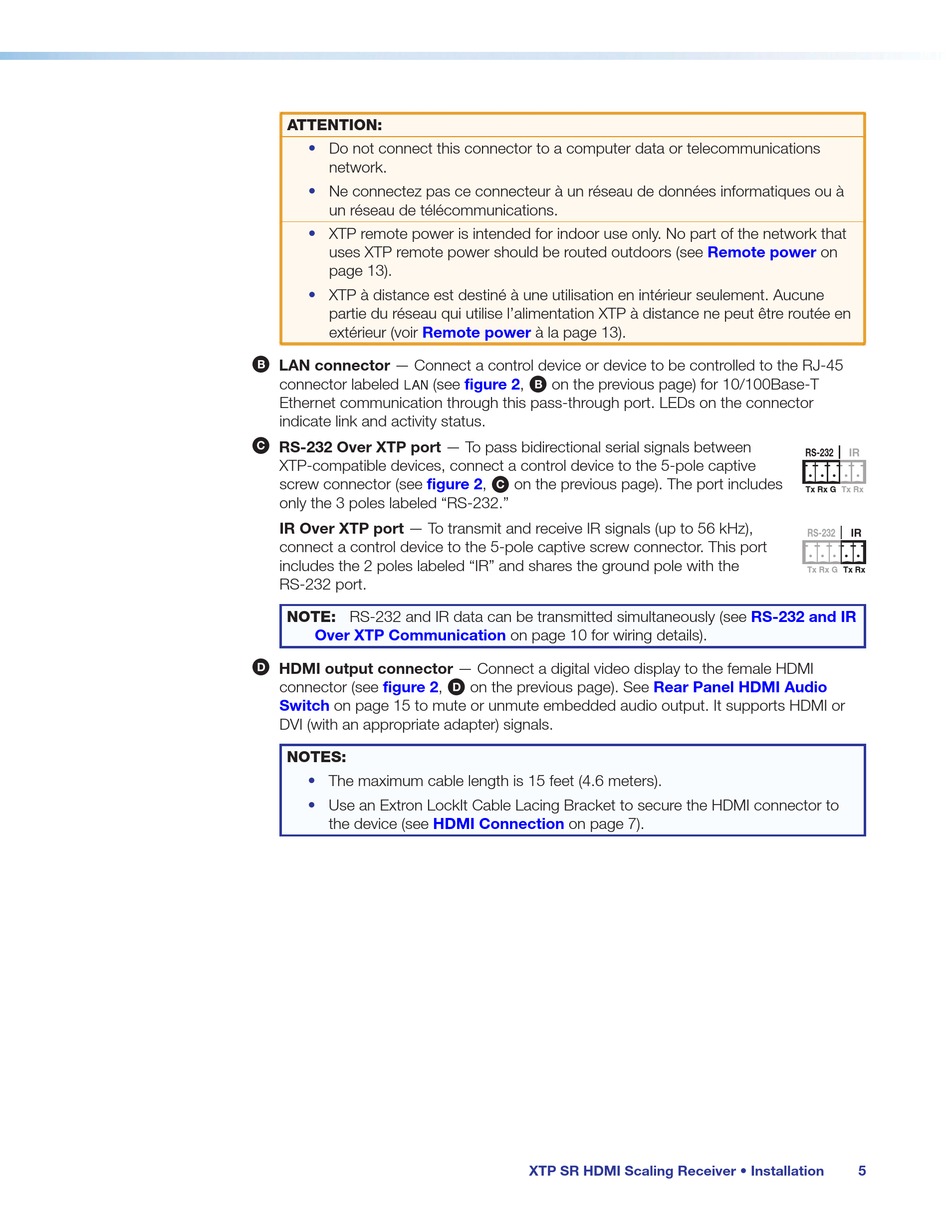

Extron electronics XTP SR HDMI User Manual page 11

ATTENTION:
•
Do not connect this connector to a computer data or telecommunications
network.
• Ne connectez pas ce connecteur à un réseau de données informatiques ou à
un réseau de télécommunications.
•
XTP remote power is intended for indoor use only. No part of the network that
uses XTP remote power should be routed outdoors (see
page 13).
• XTP à distance est destiné à une utilisation en intérieur seulement. Aucune
partie du réseau qui utilise l'alimentation XTP à distance ne peut être routée en
extérieur (voir Remote power
B
LAN connector — Connect a control device or device to be controlled to the RJ-45
connector labeled
LAN
Ethernet communication through this pass-through port. LEDs on the connector
indicate link and activity status.
C RS-232 Over XTP port — To pass bidirectional serial signals between
XTP-compatible devices, connect a control device to the 5-pole captive
screw connector (see figure
only the 3 poles labeled "RS-232."
IR Over XTP port — To transmit and receive IR signals (up to 56 kHz),
connect a control device to the 5-pole captive screw connector. This port
includes the 2 poles labeled "IR" and shares the ground pole with the
RS-232 port.
NOTE: RS-232 and IR data can be transmitted simultaneously (see
Over XTP Communication
D HDMI output connector — Connect a digital video display to the female HDMI
connector (see figure 2,
Switch on page 15 to mute or unmute embedded audio output. It supports HDMI or
DVI (with an appropriate adapter) signals.
NOTES:
• The maximum cable length is 15 feet (4.6 meters).
• Use an Extron LockIt Cable Lacing Bracket to secure the HDMI connector to
the device (see
à la page 13).
(see figure 2, on the previous page) for 10/100Base-T
B
2, on the previous page). The port includes
C
on page 10 for wiring details).
on the previous page). See
D
HDMI Connection on page 7).
XTP SR HDMI Scaling Receiver • Installation
Remote power on
RS-232
Tx Rx G
RS-232
Tx Rx G
RS-232 and IR
Rear Panel HDMI Audio
IR
Tx Rx
IR
Tx Rx
5
