2.2

Installing the Wireless module

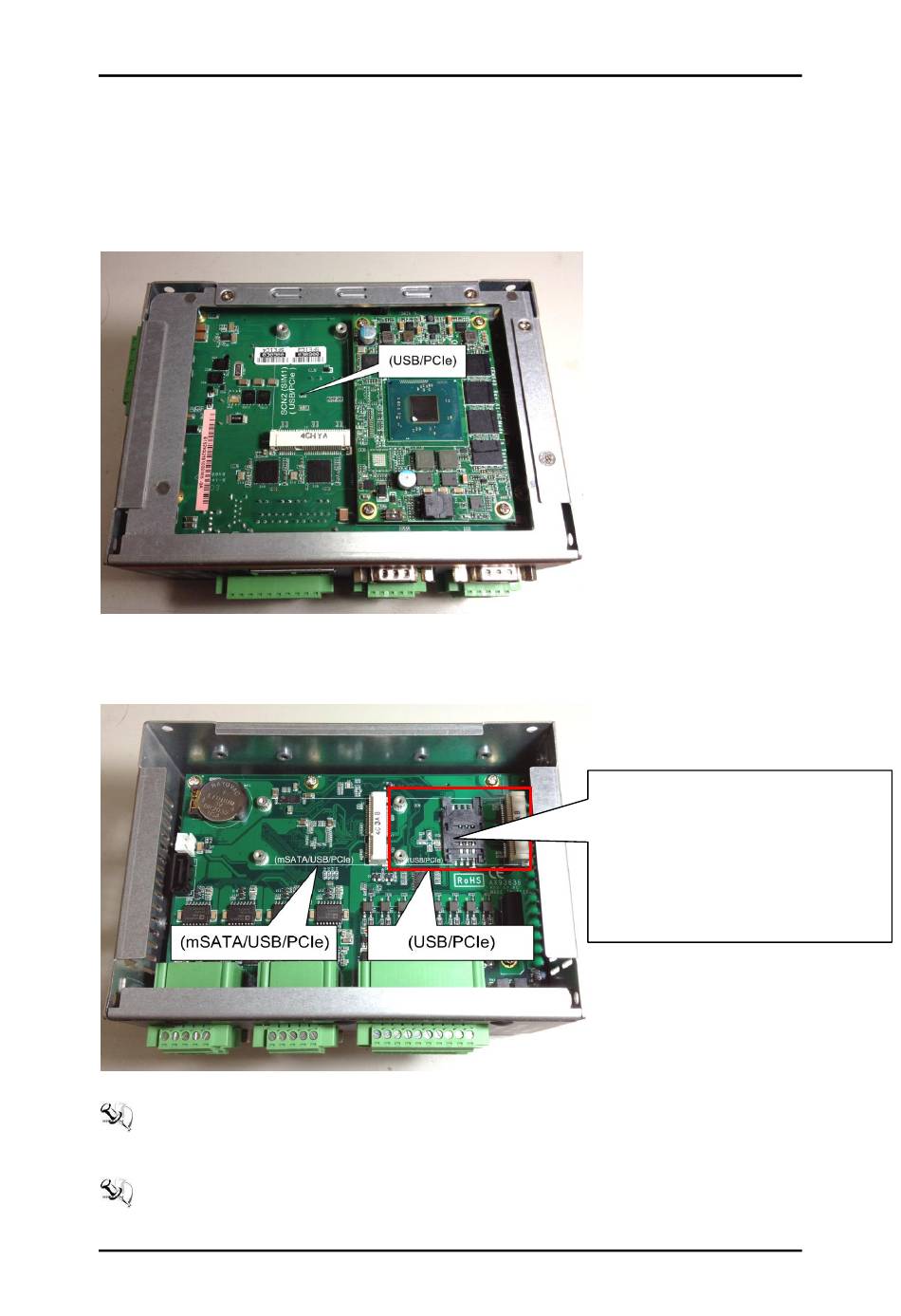

rBOX510-6COM offers 3 solutions to install wireless module as follows:

The wireless socket is near heatsink cover side, supports USB/PCIe
interface.

Two wireless sockets are near SSD cover side, one socket supports
mSATA/USB/PCIe interface, another supports USB/PCIe interface only.
Note: We strongly recommend to choose the wireless socket near
firstly if user only has one wireless inquiry, because the wireless module can be heat
dissipated via the thermal parts directly.
Note: mSATA and wireless use the same slot, and only one of them can be selected.
Hardware Installation
rBOX510-6COM User's Manual
The SIM socket dedicated for
SSD cover side wireless socket
use.
(Does not support
cover side wireless)
heatsink cover side
heatsink
