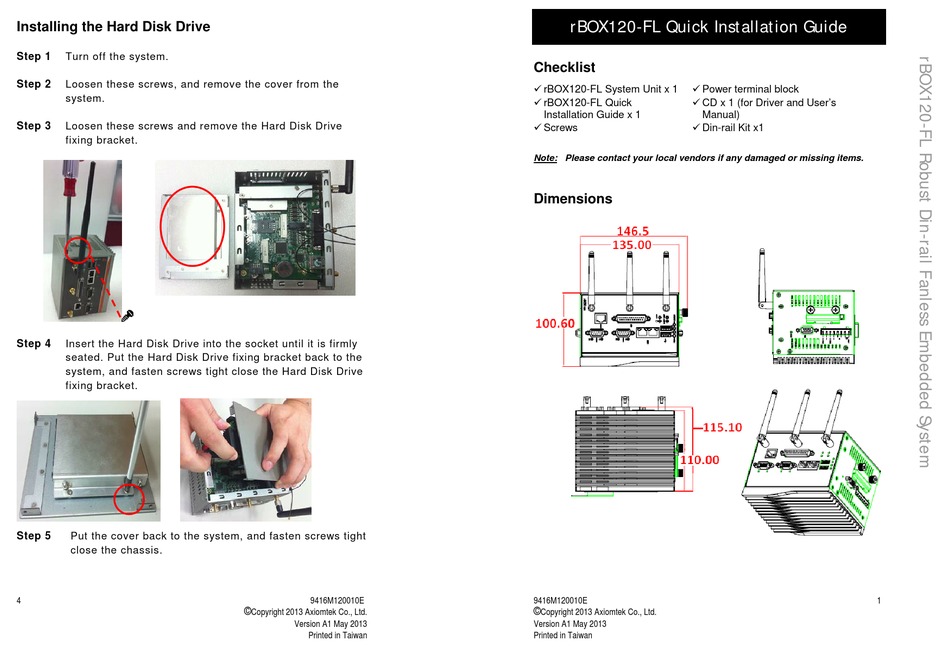

Installing the Hard Disk Drive
Step 1
Turn off the system.
Step 2
Loosen these screws, and remove the cover from the
system.
Step 3
Loosen these screws and remove the Hard Disk Drive
fixing bracket.
Step 4
Insert the Hard Disk Drive into the socket until it is firmly
seated. Put the Hard Disk Drive fixing bracket back to the
system, and fasten screws tight close the Hard Disk Drive
fixing bracket.
Step 5
Put the cover back to the system, and fasten screws tight
close the chassis.
4
9416M120010E
©
Copyright 2013 Axiomtek Co., Ltd.
Version A1 May 2013
Printed in Taiwan
rBOX120-FL Quick Installation Guide
Checklist
rBOX120-FL System Unit x 1
Power terminal block
rBOX120-FL Quick
CD x 1 (for Driver and User's
Installation Guide x 1
Manual)
Screws
Din-rail Kit x1
Note: Please contact your local vendors if any damaged or missing items.
Dimensions
9416M120010E
©
Copyright 2013 Axiomtek Co., Ltd.
Version A1 May 2013
Printed in Taiwan
1
