Hardware settings

The STM32Cube demonstration supports STM32H7 Series devices and runs on
STM32H743I-EVAL, STM32H747I EVAL, STM32H747I DISCO and STM32H747I DISC1
boards from STMicroelectronics.
1. Pictures are not contractual.
Board
STM32H743I-EVAL
and
STM32H747I-EVAL
STM32H747I-DISCO
and
STM32H747I-DISC1

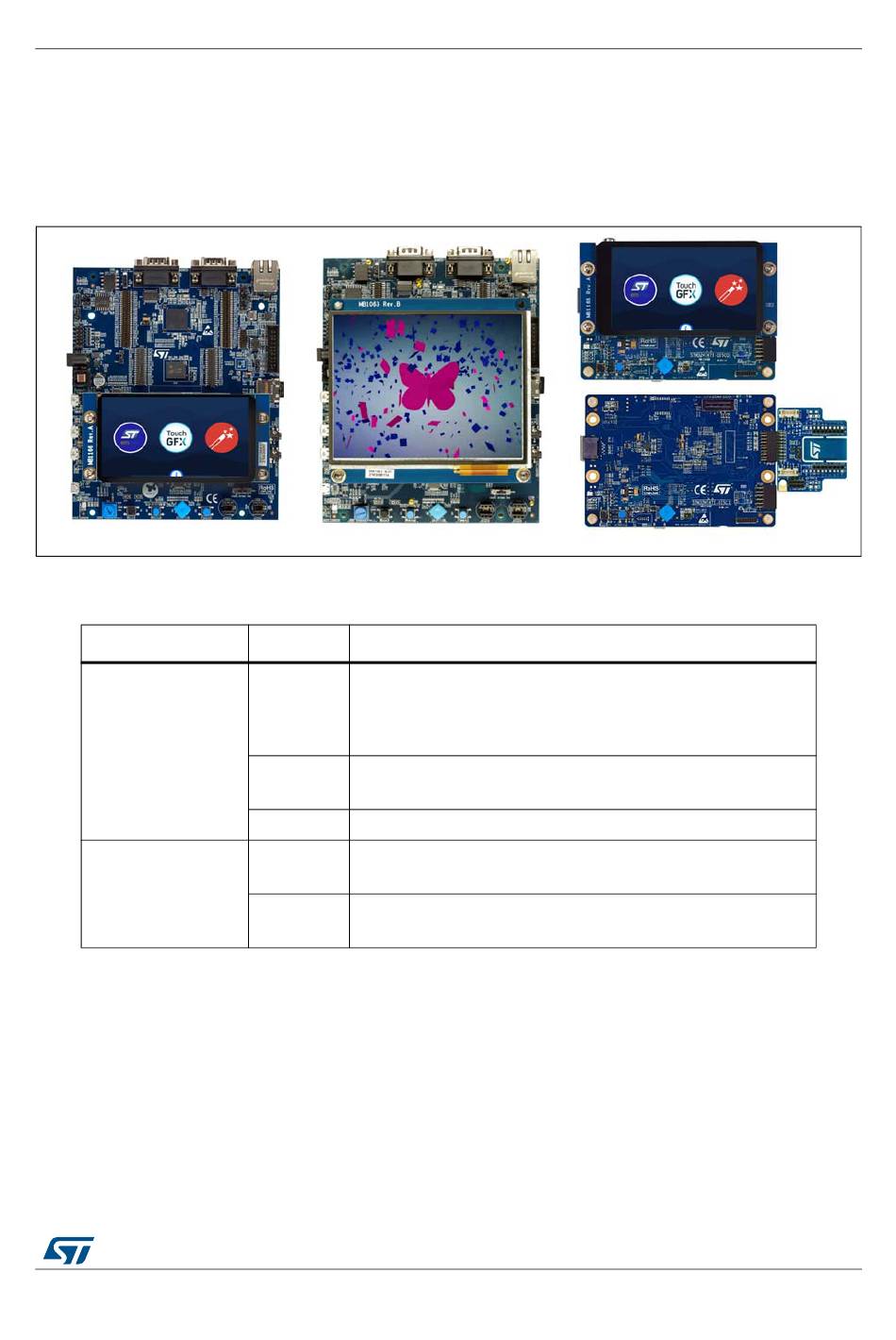

Figure 12. STM32Cube demonstration boards

Table 4. Jumpers for demonstration boards

Jumper
Status: not fitted
The Bootloader_BOOT is managed by pin 6 of connector CN7
JP3
(RS232 DSR signal) when JP1 is closed. This configuration is
used for boot loader application only.
Status: fitted
JP9
Used to measure MCU current consumption manually
JP10 Position: PSU position. For power supply jack (CN10)
Status: fitted
JP3
Used to measure MCU current consumption manually
Position: STlk (STLINK)
JP6
Used to select power supply source.
