UM2222
9.4.3

Hardware and software setup

1. Install the PC GUI application on your PC
•
This application is used to:
a)
b)
•
The communication between the PC application and the STM32H745I-DISCO is
ensured by the ST-Link USB connector used as Virtual COM port
• Connect the STM32H745I-DISCO USB ST-LINK port to the PC
2. STM32H745I-DISCO HW setup
In order to inject the signal generator output to the oscilloscope input, use an external wire
connection from the on-board STMod+ (pin13) to CN7 (pin A2) as shown in
•
STMod+ (pin13): the signal generator (DAC) output pin
•
CN7 (pin A2): this is the Oscilloscope (ADC) input pin
Functional description of the STM32H745I-DISCO demonstration modules

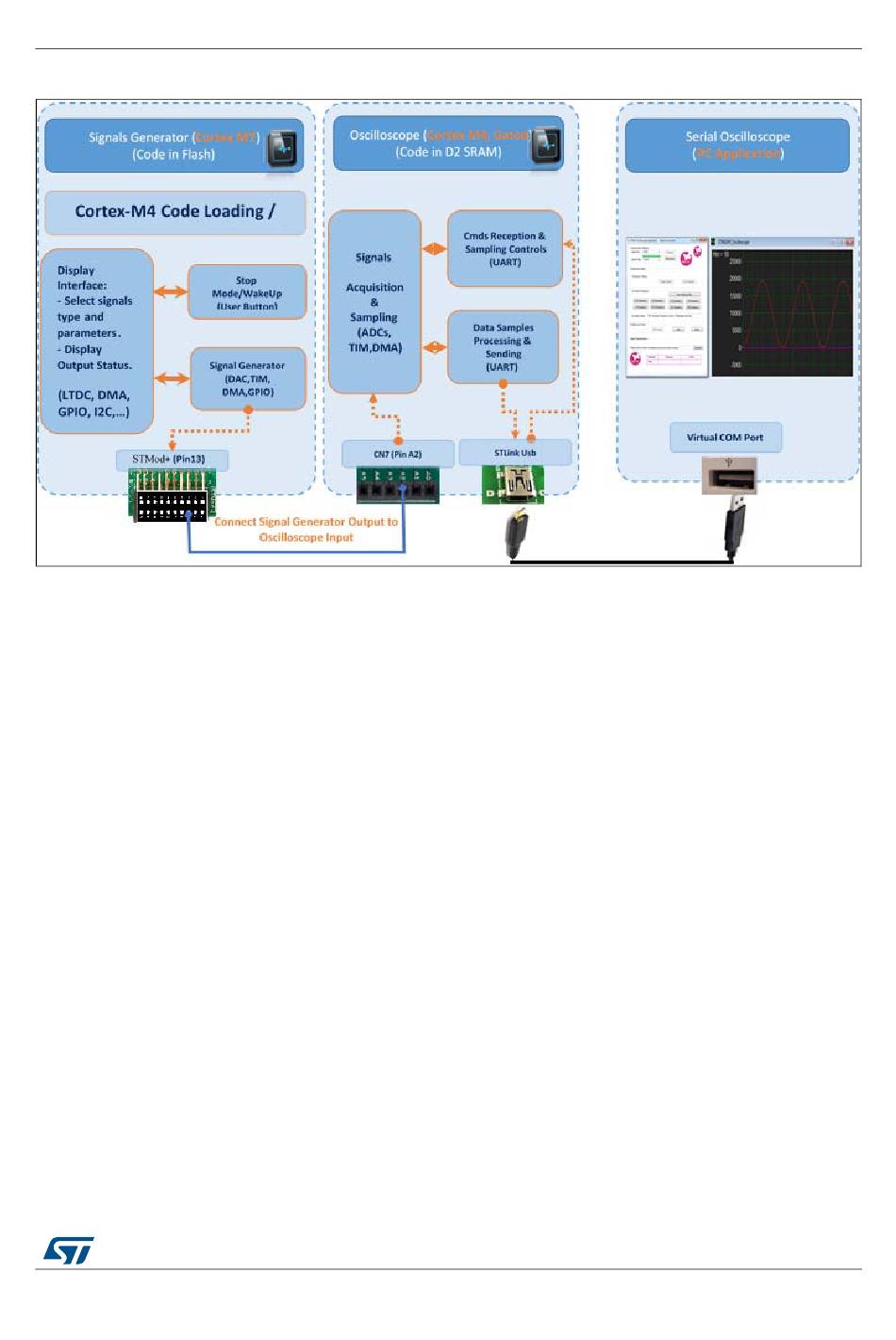

Figure 72. Oscilloscope and signals generator overview

Configure the ADC parameters
Receive and visualize samples acquired by the ADC and sent by the Cortex-M4
UM2222 Rev 2
Figure 73:
71/76
75
