STM32439I-EVAL evaluation board for the STM32F439 line
Introduction
The STM32439I-EVAL evaluation board is a complete demonstration and development
platform for STMicroelectronics ARM
microcontrollers. It features three I
USART, four UART, two CAN, three 12-bit ADC, two 12-bit DAC, one SAI, 8- to 14-bit digital
camera module interface, internal 256+4 KB SRAM and 2 MB Flash, USB HS OTG and
USB FS OTG, Ethernet MAC, FMC interface, cryptographic hardware accelerator, JTAG
debugging support. This evaluation board can be used as a reference design for user
application development but it is not considered as a final application.
The full range of hardware features on the board helps the user to evaluate all peripherals
(USB OTG HS, USB OTG FS, Ethernet, Motor Control, CAN, MicroSD Card, USART, Audio
DAC and ADC, digital microphone, IrDA, CAN, RF-EEPROM, SRAM, Nor Flash, SDRAM,
5.7" TFT LCD with a capacitive touch panel etc.) and develop his own applications.
Extension headers make it possible to easily connect a daughterboard for specific
applications development.
The integrated ST-LINK/V2 provides an embedded in-circuit debugger and programmer for
the STM32 MCU.

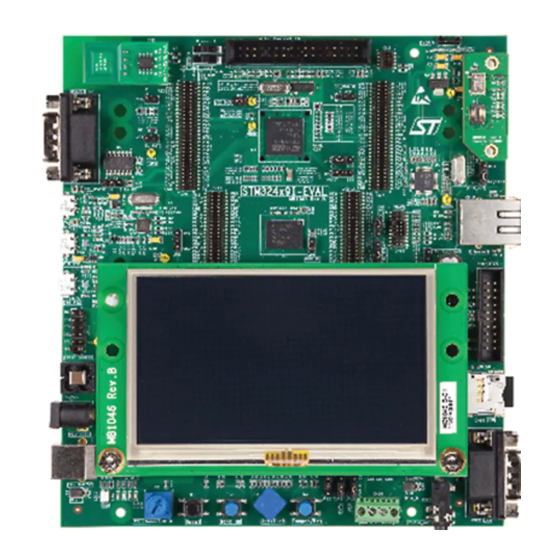

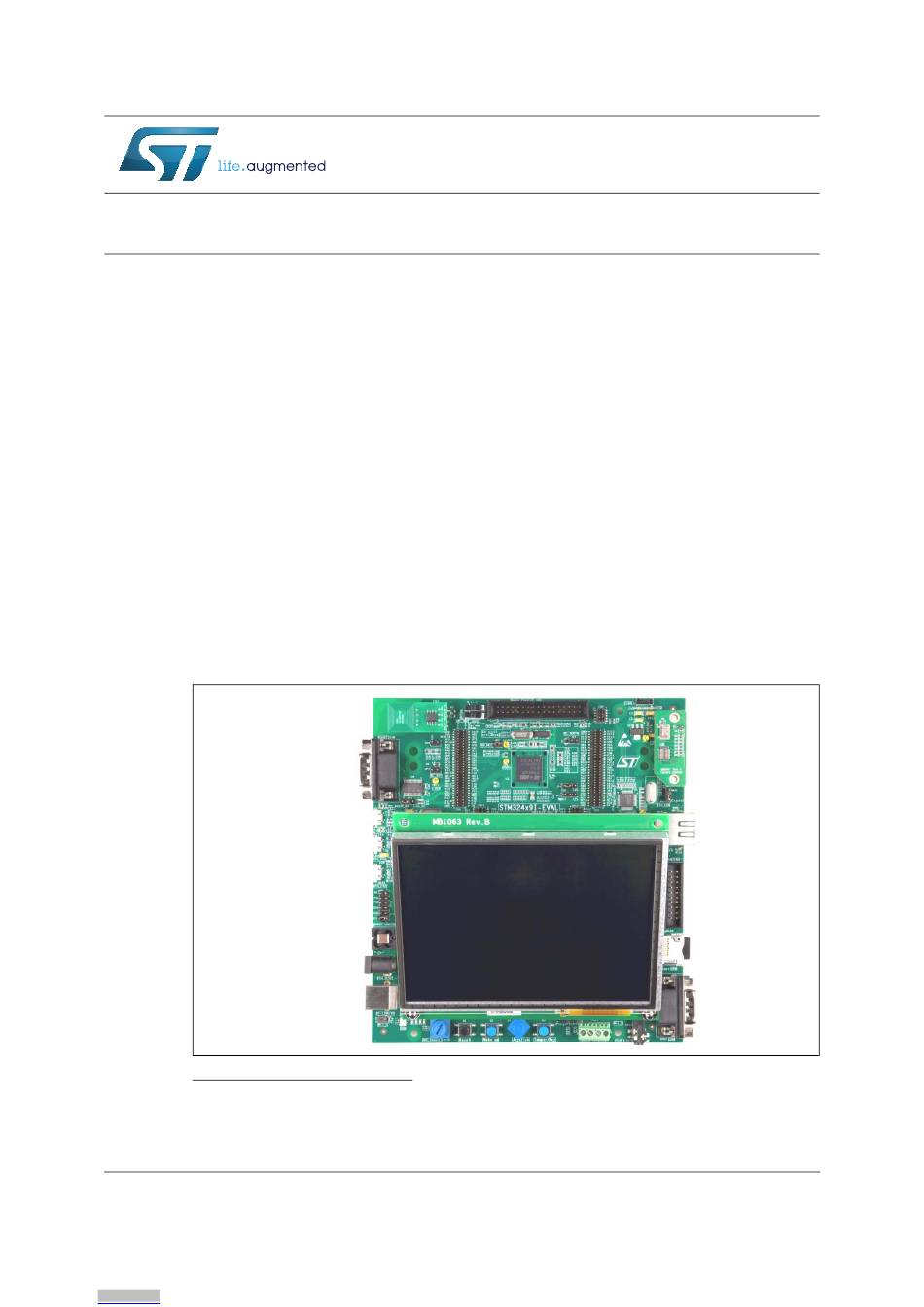

Figure 1. STM32439I-EVAL evaluation board
a. Picture not contractual
®
®
Cortex
-M4 core-based STM32F439NIH6
2
C, six SPIs with two muxed full-duplex I
DocID025151 Rev 2
UM1668
User manual
2
S, SDIO, four
(a)
1/70
www.st.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STM32439I-EVAL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ST STM32439I-EVAL

  • Page 1 UM1668 User manual STM32439I-EVAL evaluation board for the STM32F439 line Introduction The STM32439I-EVAL evaluation board is a complete demonstration and development ® ® platform for STMicroelectronics ARM Cortex -M4 core-based STM32F439NIH6 microcontrollers. It features three I C, six SPIs with two muxed full-duplex I...
  • Page 2: Table Of Contents

    Contents UM1668 Contents Overview ..........6 Features .
  • Page 3 Schematics ..........43 Appendix A STM32439I-EVAL I/O assignment ......61 Appendix B Mechanical dimensions.
  • Page 4 STM32439I-EVAL I/O assignment ........
  • Page 5 STM32439I-EVAL evaluation board ........
  • Page 6: Overview

    Demonstration software Demonstration software is preloaded in the Flash memory of the board for easy demonstration of the device peripherals in stand-alone mode. For more information and to download the latest version, refer to the STM32439I-EVAL demonstration software on www.st.com. 6/70 DocID025151 Rev 2 Arrow.com.
  • Page 7: Order Code

    UM1668 Overview Order code To order the evaluation board based on STM32F439NIH6 MCU and 5.7" TFT LCD, use the order code STM32439I-EVAL2. Delivery recommendations Some verifications are needed before using the board for the first time to make sure that nothing was damaged during shipment and that no components are unplugged or lost.
  • Page 8: Hardware Layout And Configuration

    Hardware layout and configuration UM1668 Hardware layout and configuration The STM32439I-EVAL evaluation board is designed around the STM32F439NIH6 (216-pin TFBGA package). The hardware block diagram Figure 2 illustrates the connection between the STM32F439NIH6 and peripherals (SDRAM, SRAM, NOR Flash, camera module, color...
  • Page 9: Figure 3. Evaluation Board Layout

    UM1668 Hardware layout and configuration Figure 3. Evaluation board layout DocID025151 Rev 2 9/70 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
  • Page 10: Development And Debug Support

    UM1668 Development and debug support Version 2 of the ST-LINK (ST-LINK/V2) is embedded on the board. This tool allows on-board program loading and debugging of the STM32 using a JTAG or SWD interface. Third-party debug tools are also supported by the JTAG/SWD connector, CN16, and ETM Trace connector, CN13.
  • Page 11: Power Supply

    5 V DC power adapter connected to CN18, the power jack on the board (Power Supply Unit on silk screen of JP12(E5V)). • 5 V DC power with 500 mA limitation from CN21, the USB type B connector of ST- LINK/V2 (USB 5 V power source on silkscreen of JP12(STlk)). •...
  • Page 12 CN6 & CN7, JP12 is set as shown to the right (daughterboard must not have its own power supply connected) The LED LD10 is lit when the STM32439I-EVAL evaluation board is powered by the 5 V correctly. Note:...
  • Page 13: Clock Source

    Jumper JP6 for Ethernet clock refer to Section 2.13. Reset source The reset signal of STM32439I-EVAL evaluation board is low active. Reset sources include: • Reset button B1 • Debugging tools from JTAG/SWD connector CN16 and ETM trace connector CN13 •...
  • Page 14: Boot Option

    0 < > 1 Note: The RS-232 boot loader mechanism is not supported on the STM32439I-EVAL. Audio An audio codec WM8994ECS/R with 4 DACs and 2 ADCs inside is connected to the SAI interface of the STM32F439NIH6 to support the TDM feature on the SAI port. This feature implements audio recording on digital and analog microphone, and audio playback of different audio streams on headphone and line-out at the same time.
  • Page 15: Usb Otg1 Fs

    Power switch (U9) is ON and the STM32439I-EVAL is acting as a USB host. • VBUS is powered by another USB host and the STM32439I-EVAL is acting as a USB device. Red LED LD8 will be lit when over-current occurs.
  • Page 16: Usb Otg2 Hs & Fs

    • Power switch (U6) is ON and STM32439I-EVAL is acting as a USB host. • VBUS is powered by another USB host, and STM32439I-EVAL is acting as a USB device. Red LED LD6 is lit if over-current occurs. RS-232 & IrDA...
  • Page 17: Microsd Card

    RF-EEPROM An RF-EEPROM daughterboard ANT7-M24LR-A is mounted on CN3 of the STM32439I-EVAL board via the I2C1 bus. The RF-EEPROM can be accessed by the microcontroller via the I2C1 bus or by radio frequency (RF) using a 13.56 MHz reader (for example, CR95HF).
  • Page 18: Ethernet

    UM1668 2.13 Ethernet The STM32439I-EVAL evaluation board supports 10M/100M Ethernet communication by a PHY DP83848CVV (U5) and integrated RJ45 connector (CN10). Ethernet PHY is connected to the STM32F439NIH6 via the MII interface. A 25 MHz clock can be generated by PHY or provided by MCO from the STM32F439NIH6...
  • Page 19: Memories

    C24 with the resistor and capacitor requested by end user's application. 2.17 Camera module Connector CN5 (for DCMI signals) on the STM32439I-EVAL evaluation board connects to the camera module daughterboard MB1066. DCMI signals are duplicated with other peripherals (SAI, I2S, NOR Flash, MicroSD Card, Trace, Ethernet).
  • Page 20: Display And Input Devices

    Hardware layout and configuration UM1668 2.18 Display and input devices A 5.7 inch 640 x 480 TFT color LCD with capacitive touch panel can be connected to the RGB LCD interface of STM32F439NIH6. 4 general purpose color LED's (LD 1,2,3,4) are available as display devices. The 4-direction joystick (B4), Wakeup (B2) and Tamper/key button (B3) are available as input devices.
  • Page 21: Motor Control

    Figure 4. Orientation setting of 5.7 inch LCD daughterboard 2.19 Motor control The STM32439I-EVAL evaluation board supports both asynchronous and synchronous three-phase brushless motor control via a 34-pin connector, CN1, which provides all required control and feedback signals to and from motor power-driving board.
  • Page 22: Figure 5. Pcb Underside Rework For Motor Control

    Hardware layout and configuration UM1668 All resistors to be removed on the underside of the board are marked in red, while resistors to be soldered are marked in green in Figure Figure 6 shows all resistors to be removed on the topside of the board marked in red, while resistors to be soldered are marked in green (removal of R102 and R104, and mounting of R16).
  • Page 23: Table 14. Motor Control Related Solder Bridges

    UM1668 Hardware layout and configuration Table 14. Motor control related solder bridges Solder bridges Description The special motor current sampling operation is enabled when SB1 is closed (PA12 connected to PA8). The I/O pins PA12 and PA8 are disconnected and can be used by a daughterboard when SB1 is not fitted.
  • Page 24: Connectors

    Connectors UM1668 Connectors Motor control connector CN1 Figure 7. Motor control connector CN1 Table 15. Motor control connector CN1 STM32F439NIH6 CN1 pin STM32F439NIH6 Description Description number pin number Emergency stop PA6 MC_UH MC_UL MC_VH MC_VL MC_WH MC_WL Bus voltage current A current B current C NTC bypass...
  • Page 25: Extension Connector Cn2

    UM1668 Connectors Extension connector CN2 Figure 8. Extension connector CN2 top view Table 16. Extension connector CN2 Pin number Pin name I2C interface description SPI interface description I2C1_SDA SPI3_CS PC11 SPI3_MISO I2C1_SCL EXT_RESET PC10 EXT_RESET SPI3_SCK PC12 SPI3_MOSI DocID025151 Rev 2 25/70 Arrow.com.
  • Page 26: Rf-Eeprom Daughterboard Connector Cn3

    Connectors UM1668 RF-EEPROM daughterboard connector CN3 Figure 9. RF-EEPROM daughterboard connector CN3 (front view) Table 17. RF-EEPROM daughterboard connector CN3 Pin number Description Pin number Description I2C1_SDA (PB9) +3V3 SPI3_MISO (PC11) Reserved for future use (PC12) I2C1_SCL (PB6) RESET(PC10) Analog input connector CN4 Figure 10.
  • Page 27: Camera Module Connector Cn5

    UM1668 Connectors Camera module connector CN5 Figure 11. Camera module connector CN5 (top view) Table 19. Camera module connector CN5 Pin number Description Pin number Description +1.8 V +1.8 V D0 (PC6) D1 (PC7) D2 (PC8) D10 (PD6) D3 (PC9) D11 (PD2) D4 (PC11) D5(PD3)
  • Page 28: Daughterboard Extension Connector Cn6 And Cn7

    Daughterboard extension connector CN6 and CN7 Two 60-pin male headers CN6 and CN7 can connect a daughterboard or standard wrapping board to the STM32439I-EVAL evaluation board. All GPI/Os are available on them and memory connectors (CN11 & CN12). The space between these two connectors is defined as a standard which allows common daughterboards to be developed for several evaluations boards.
  • Page 29 UM1668 Connectors Table 20. Daughterboard extension connector CN6 (continued) How to disconnect with function block on Pin Description Alternative function STM32439I-EVAL board ULPI_D5/ PB12 Remove R108, R260, Disconnect CN15 USB_FS2_ID ULPI_D6/ PB13 Remove R112, R264, Disconnect CN15 USB_FS2_VBUS LCD_G2 LED2...
  • Page 30: Table 21. Daughterboard Extension Connector Cn7

    Connectors UM1668 Table 20. Daughterboard extension connector CN6 (continued) How to disconnect with function block on Pin Description Alternative function STM32439I-EVAL board LCD_R6 LCD_R7 MII_RXD1/ Remove R263, R267 MC_HEATSINK +3V3 ULPI_D1/MC_VL Remove R102, R282 LCD_R1 LCD_R3 LCD_R2 Table 21. Daughterboard extension connector CN7...
  • Page 31 UM1668 Connectors Table 21. Daughterboard extension connector CN7 (continued) How to disconnect with function block on Pin Description Alternative function STM32439I-EVAL board LCD_G5 CAN1_RX/ USB_FS1_DM/ PA11 Remove R255, R298, Keep JP16 on open MC_PFCpwm RS232_IRDA_TX/ Remove R262, R266 USB_FS1_VBUS JTDO- SWO/...
  • Page 32 Connectors UM1668 Table 21. Daughterboard extension connector CN7 (continued) How to disconnect with function block on Pin Description Alternative function STM32439I-EVAL board SDCARD_CK/ PC12 SPI3_MOSI/ Disconnect CN2, CN3, CN5, CN17 PAR_D9 PA15 JTDI Remove R106 LCD_G6 PA14 JTCK-SWCLK Remove R99...
  • Page 33: Rs-232 Connector Cn8

    UM1668 Connectors RS-232 connector CN8 Figure 12. RS-232 connector (front view) Table 22. RS-232 connector CN8 with ISP support Pin number Description Pin number Description RS232_RX (PA10) RS232_TX (PA9) USB OTG2 HS Micro-AB connector CN9 Figure 13. USB OTG2 HS Micro-AB connector CN9 (front view) Table 23.
  • Page 34: Ethernet Rj45 Connector Cn10

    The standard width between the CN11 pin1 and CN12 pin1 is 1914 mils (48.62 mm). For signal assignments refer to Table 25 Table 26 for detail. Table 25. Memory connector CN11 How to disconnect with function block on Pin Description Alternative function STM32439I-EVAL board SDNE0/ Remove SB8 MII_COL PF13 PF12 PE10 PE12...
  • Page 35 UM1668 Connectors Table 25. Memory connector CN11 (continued) How to disconnect with function block on Pin Description Alternative function STM32439I-EVAL board PE13 PD11 PD12 A15/ PH11 PD13 PD14 SDNWE PF14 PF11 SDNRAS PE11 PF15 PE14 PH10 A14/ PH12 PD10 PD15...
  • Page 36: Table 26. Memory Connector Cn12

    Connectors UM1668 Table 26. Memory connector CN12 How to disconnect with function block on Pin Description Alternative function STM32439I-EVAL board A22/ SAI1_SD_A/ Remove R114, R120, R128 TRACED3/ PAR_D7 A20/ Remove R33 TRACED1 A19/ Remove R39 TRACED0 NBL3 NBL2 PG15 SDNCAS...
  • Page 37: Etm Trace Debugging Connector Cn13

    UM1668 Connectors Table 26. Memory connector CN12 (continued) How to disconnect with function block on Pin Description Alternative function STM32439I-EVAL board PH15 PH14 +3.3V 3.11 ETM trace debugging connector CN13 Figure 15. ETM trace debugging connector CN13 (top view) Table 27. ETM trace debugging connector CN13...
  • Page 38: Usb Otg1 Fs Micro-Ab Connector Cn14

    Connectors UM1668 Table 27. ETM trace debugging connector CN13 Pin number Description Pin number Description TraceD2/PE5 TraceD3/PE6 3.12 USB OTG1 FS Micro-AB connector CN14 Figure 16. USB OTG1 FS Micro-AB connector CN14 (front view) Table 28. USB OTG1 FS Micro-AB connector CN14 Pin number Description Pin number...
  • Page 39: Jtag/Swd Connector Cn16

    UM1668 Connectors 3.14 JTAG/SWD connector CN16 Figure 18. JTAG/SWD debugging connector CN16 (top view) Table 30. JTAG/SWD debugging connector CN15 Pin number Description Pin number Description +3.3V +3.3V PA15 PA13 PA14 RTCK RESET# DBGRQ DBGACK 3.15 MicroSD connector CN17 Figure 19. MicroSD connector CN17 (front view) DocID025151 Rev 2 39/70 Arrow.com.
  • Page 40: Power Connector Cn18

    GPIOx are I/O expander (U16) signals. 3.16 Power connector CN18 The STM32439I-EVAL evaluation board can be powered from a DC 5 V power supply via the external power supply jack (CN18) shown in Figure 20. The central pin of CN18 must be positive.
  • Page 41: St-Link/V2 Usb Type B Connector Cn21

    Pin number Description 1,4,8,9 CANH CANL 3,5,6 3.21 Audio jack CN23 A 3.5 mm stereo audio jack CN23 is available on the STM32439I-EVAL evaluation board to support a headset (headphone & microphone integrated). DocID025151 Rev 2 41/70 Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 42: Audio Terminal Cn24

    Description Pin number Description SPKOUT_L_N SPKOUT_R_N SPKOUT_L_P SPKOUT_R_P 3.23 ST-LINK/V2 programming Tag-connector CN25 The connector CN25 is used only by the embedded ST-LINK/V2 programming during board manufacture with Tag-connector (TC2050-IDC). 42/70 DocID025151 Rev 2 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 43: Schematics

    UM1668 Schematics Schematics Figure 24. STM32439I-EVAL DocID025151 Rev 2 43/70 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 44: Figure 25. Mcu

    Schematics UM1668 Figure 25. MCU 44/70 DocID025151 Rev 2 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 45: Figure 26. Power

    UM1668 Schematics Figure 26. Power DocID025151 Rev 2 45/70 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 46: Figure 27. Sram, Flash And Sdram

    Schematics UM1668 Figure 27. SRAM, Flash and SDRAM 46/70 DocID025151 Rev 2 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 47: Figure 28. Audio

    UM1668 Schematics Figure 28. Audio DocID025151 Rev 2 47/70 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 48: Figure 29. Lcd, Camera And Connectors

    Schematics UM1668 Figure 29. LCD, camera and connectors 48/70 DocID025151 Rev 2 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 49: Figure 30. Ethernet

    UM1668 Schematics Figure 30. Ethernet DocID025151 Rev 2 49/70 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 50: Figure 31. Usb Otg Hs

    Schematics UM1668 Figure 31. USB OTG HS 50/70 DocID025151 Rev 2 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 51: Figure 32. Usb Otg Fs

    UM1668 Schematics Figure 32. USB OTG FS DocID025151 Rev 2 51/70 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 52: Figure 33. Rs-232 And Irda

    Schematics UM1668 Figure 33. RS-232 and IrDA 52/70 DocID025151 Rev 2 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 53: Figure 34. Can, Microsd Card And Io Expander

    UM1668 Schematics Figure 34. CAN, MicroSD Card and IO expander DocID025151 Rev 2 53/70 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 54: Figure 35. Peripherals

    Schematics UM1668 Figure 35. Peripherals 54/70 DocID025151 Rev 2 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 55: Figure 36. Motor Control

    UM1668 Schematics Figure 36. Motor control DocID025151 Rev 2 55/70 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 56: Figure 37. Extension Connector

    Schematics UM1668 Figure 37. Extension connector 56/70 DocID025151 Rev 2 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 57: Figure 38. St-Link/V2

    UM1668 Schematics Figure 38. ST-LINK/V2 DocID025151 Rev 2 57/70 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 58: Figure 39. Jtag And Trace

    Schematics UM1668 Figure 39. JTAG and trace 58/70 DocID025151 Rev 2 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 59: Figure 40. 5.7' Tft Lcd Daughterboard Mb1063

    UM1668 Schematics Figure 40. 5.7' TFT LCD daughterboard MB1063 DocID025151 Rev 2 59/70 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 60: Figure 41. Camera Daughterboard Mb1066

    Schematics UM1668 Figure 41. Camera daughterboard MB1066 60/70 DocID025151 Rev 2 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 61: Appendix A Stm32439I-Eval I/O Assignment

    UM1668 STM32439I-EVAL I/O assignment Appendix A STM32439I-EVAL I/O assignment Table 35. STM32439I-EVAL I/O assignment Motor control Camera Pin number Pin name STM32439I-EVAL standard variant variant A20/ TRACED1 A19/ TRACED0 TRACECLK PG14 MII_TXD1 NBL1 NBL0 MII_TXD3 DISSIPATIVE_BRAKE D6 ULPI_D7 JTRST JTDO-SWO/...
  • Page 62 STM32439I-EVAL I/O assignment UM1668 Table 35. STM32439I-EVAL I/O assignment (continued) Motor control Camera Pin number Pin name STM32439I-EVAL standard variant variant SDCARD_D3/ PC11 SPI3_MISO SDCARD_D2/ PC10 SPI3_SCK CAN1_TX/ PA12 PFC_SYNC2 USB_FS1_DP VBAT VBAT PI8- ANTI EXPANDER_INT TAMP2 NBL2 LCD_DE LCD_B7...
  • Page 63 UM1668 STM32439I-EVAL I/O assignment Table 35. STM32439I-EVAL I/O assignment (continued) Motor control Camera Pin number Pin name STM32439I-EVAL standard variant variant SDCARD_CMD PH15 RS232_IRDA_RX/ PA10 USB_FS1_VBUS/ USB_FS1_ID PC14 OSC32_IN PI12 LCD_HSYNC PDR_ON BOOT0 BOOT0 VDD_3 VDD_11 VDD_10 VDD_15 VCAP2 PH13...
  • Page 64 STM32439I-EVAL I/O assignment UM1668 Table 35. STM32439I-EVAL I/O assignment (continued) Motor control Camera Pin number Pin name STM32439I-EVAL standard variant variant LCD_G7 SDCARD_D1 LCD_BL_CTRL PFC_SYNC1 OSC_IN PI13 LCD_VSYNC PI15 LCD_R0 VDD_18 VSS_17 VSS_9 VDD_9 PJ11 LCD_G4 LCD_G5 SDCARD_D0 OSC_OUT PI14...
  • Page 65 UM1668 STM32439I-EVAL I/O assignment Table 35. STM32439I-EVAL I/O assignment (continued) Motor control Camera Pin number Pin name STM32439I-EVAL standard variant variant VSS_8 VDD_8 LCD_G0 LCD_G2 LED2 LED1 SAI1_MCLK_B SAI1_SD_B SDCKE0 VDD_4 VSS_4 VSS_6 VSS_7 VSS_1 VSS_14 VDD_14 LCD_R7 PD15 ULPI_D6/...
  • Page 66 STM32439I-EVAL I/O assignment UM1668 Table 35. STM32439I-EVAL I/O assignment (continued) Motor control Camera Pin number Pin name STM32439I-EVAL standard variant variant ULPI_D5/ PB12 USB_FS2_ID VSSA ULPI_STP MII_MDC MII_TXD2 CURRENT_B BOOT1 PF12 PF15 LCD_R5 PD12 PD13 LCD_R6 PH12 VREF- MII_RX_CLK ENCODER_B...
  • Page 67 UM1668 STM32439I-EVAL I/O assignment Table 35. STM32439I-EVAL I/O assignment (continued) Motor control Camera Pin number Pin name STM32439I-EVAL standard variant variant PH11 VREF+ MII_MDIO INDEX STOP PIXCK ULPI_CK DAC_OUT2 MII_RXD1 HEATSINK PF14 LCD_R3 PF11 SDNRAS PE11 PE14 PB10 ULPI_D3 MII_RXD2...
  • Page 68: Appendix B Mechanical Dimensions

    Mechanical dimensions UM1668 Appendix B Mechanical dimensions Figure 42. Mechanical dimensions Table 36. Mechanical dimensions Symbol Size (mm) Symbol Size (mm) Symbol Size (mm) 68.58 114.18 20.1 48.62 24.43 1.27 116.5 16.94 55.37 21.36 46.77 32.64 9.98 172.72 68/70 DocID025151 Rev 2 Arrow.com.
  • Page 69: Revision History

    Revision history Revision history Table 37. Document revision history Date Revision Changes 12-Sept-2013 Initial release Updated document title, Table 7: USB OTG2 configuration, Figure 24: 16-Mar-2015 STM32439I-EVAL DocID025151 Rev 2 69/70 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 70 ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgement.
