Graphics accelerator module

The graphic accelerator module is used to display the Chrom-ART accelerator capabilities
and how it offloads the CPU.
The five operations listed below are used:
•
Alpha8 blend
•
Rectangle copy
•
Bitmap copy
•
Rectangle blend
•
Bitmap blend

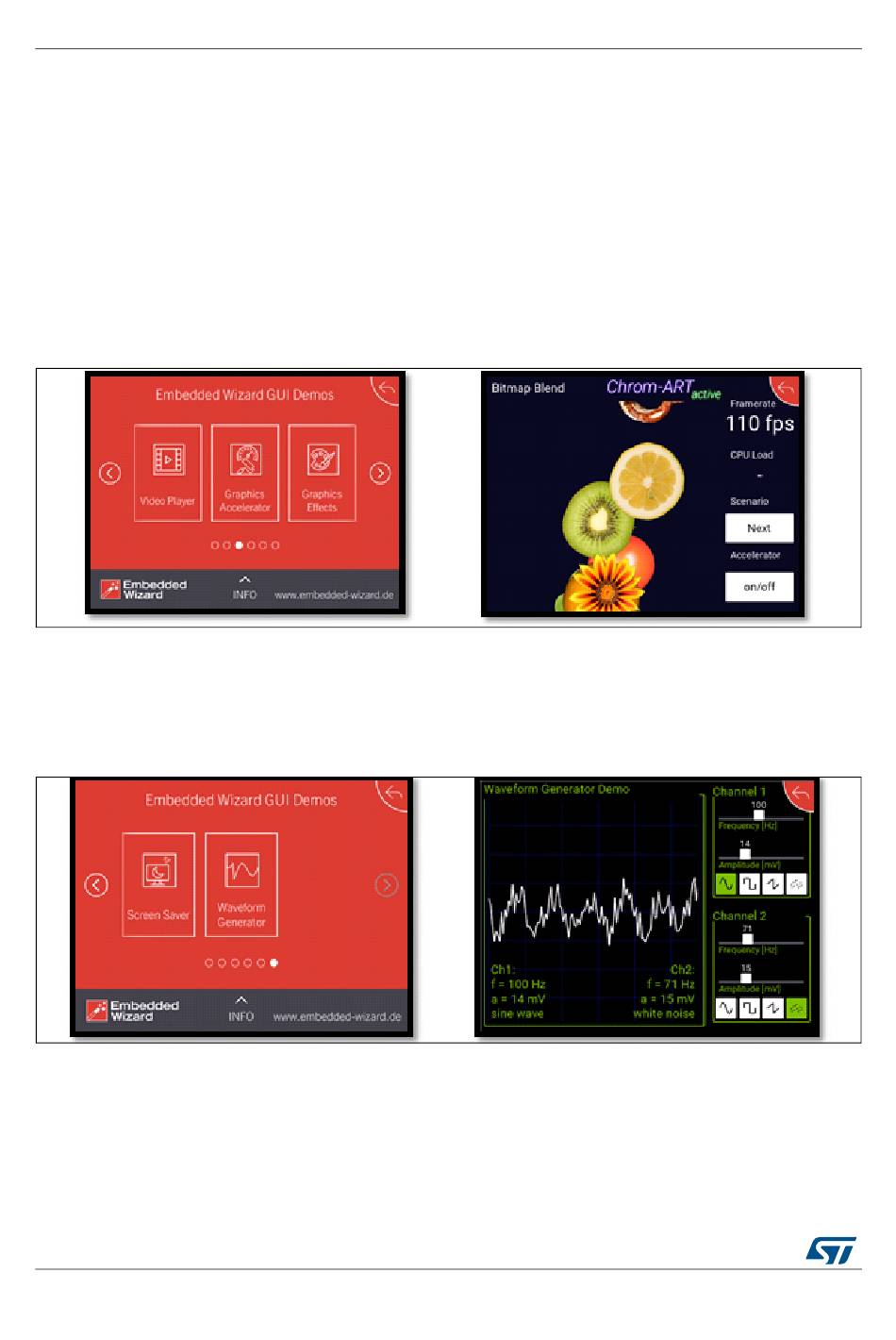

Figure 59. Embedded wizard - Graphics accelerator module

8.3.6

Waveform generator module

The waveform generator module displays the possibility to emulate waveform generation
and signal frequency display.

Figure 60. Embedded wizard - Waveform generator module
