Video player

Overview
The video player module provides a video solution based on the STM32H7 Series and
STemWin movie API. It supports playing movie in AVI format.
Features
•
Video format: AVI video format
•
Performance: MCU Load < 5 % and rate up to 25 fps
•
Video files stored in SD card
•
Use of the two LCD layers (playback control and video display)
•
64-Kbyte RAM required for JPEG decoding
Figure 27
with the external components.
44/76

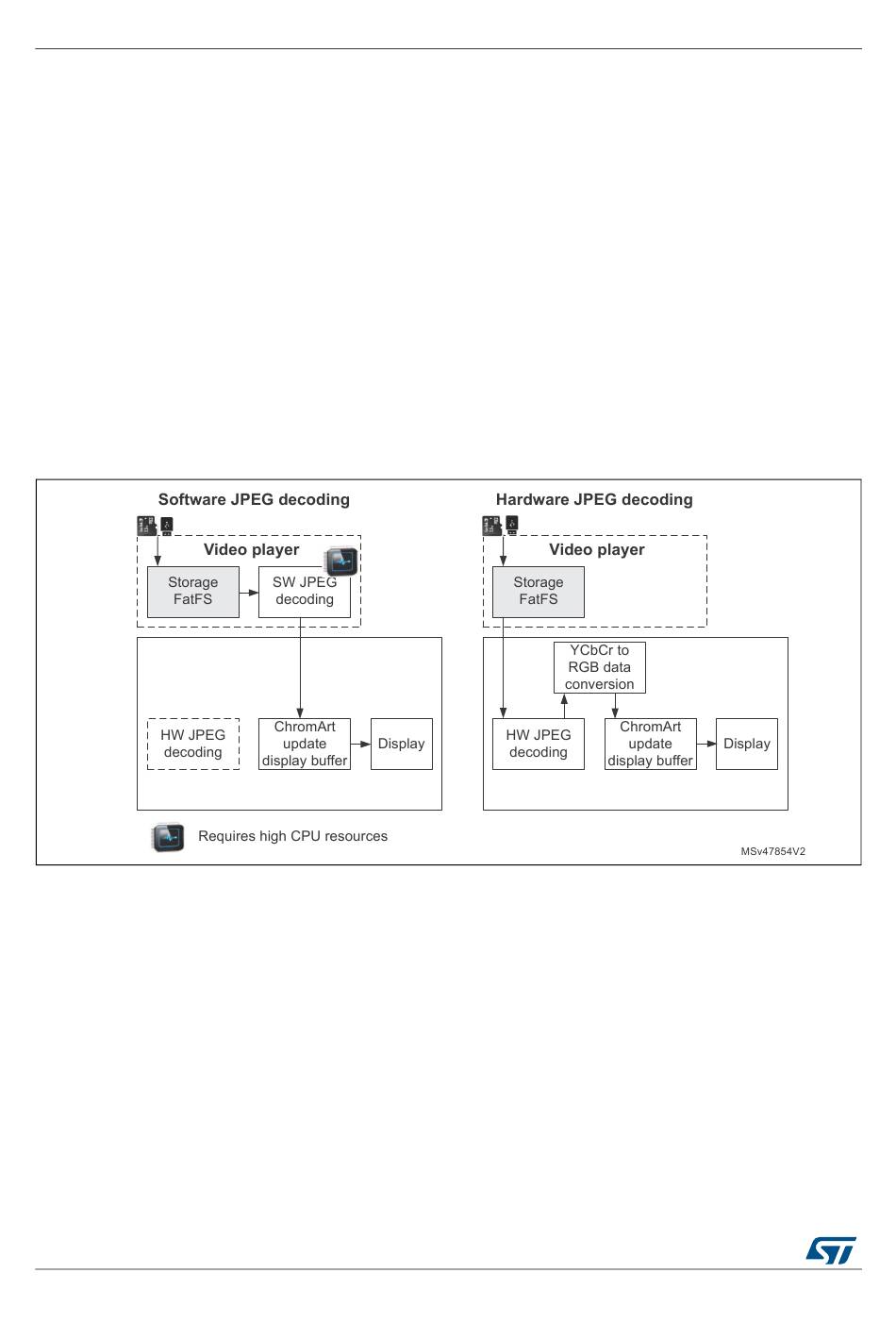

shows the different video player modules and their connections and interactions
