1. Entering the module brings up a menu, which lets the user select between the four
options Light, Blinds, Security and Statistics.
2. In the light and security menus, the user is able to turn the two settings ON/OFF for
single rooms and in the blinds menu the user is able to adjust how much the blinds are
open.

Figure 48. Menu to set the blinds, like light and security but options only to tune on and off

3. Entering the security and statistics menus requires a login in pattern.
4. In the statistics screen, graphs are used to show the statistics for the three options.
Screen lock (left) and statistics menu (right)

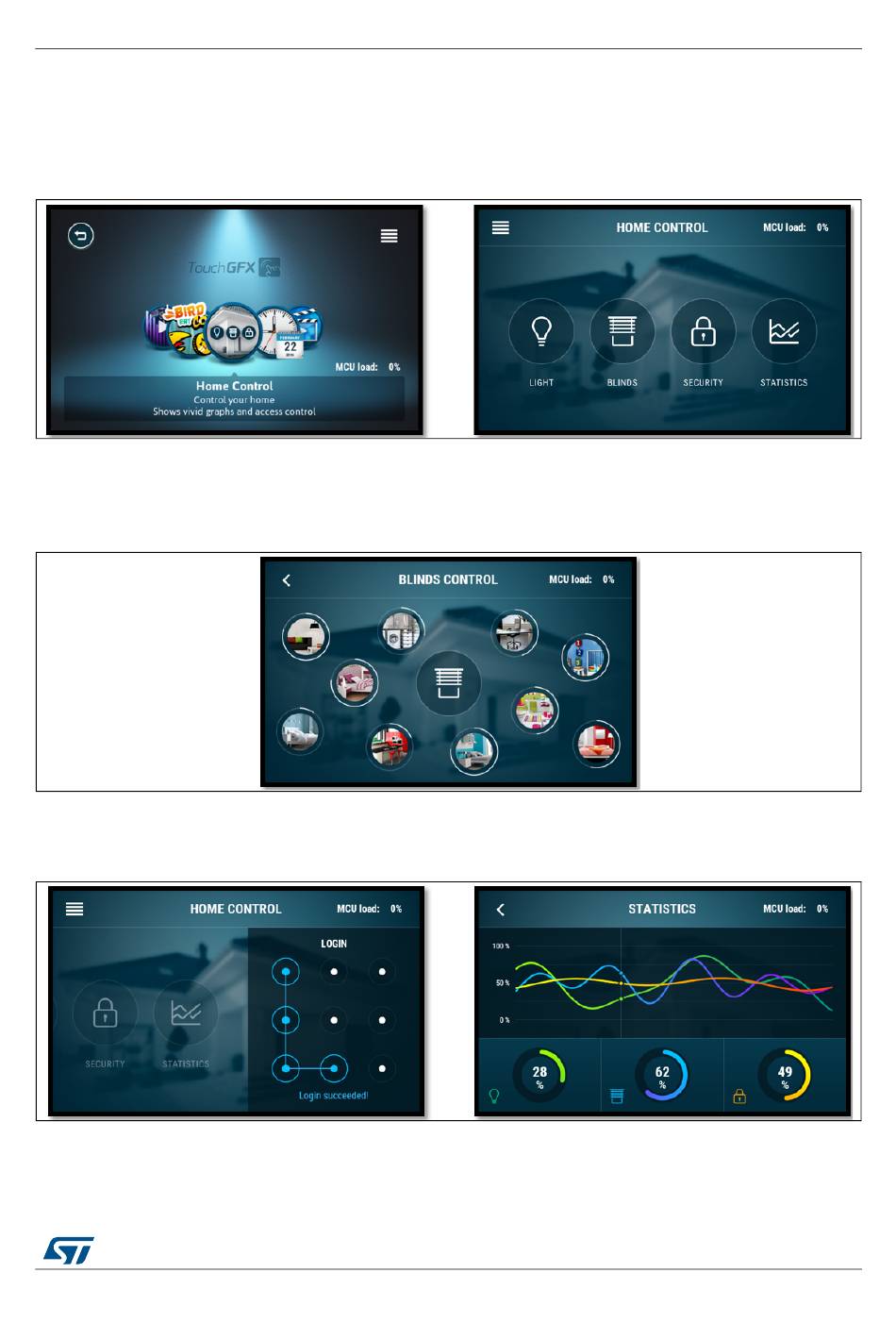

Figure 47. TouchGFX - Home control module
