Kernel description
3.16

Hardware settings

The STM32CubeF4 demonstration supports STM32F4xx devices and runs on the following
demonstration boards from STMicroelectronics:
•
STM324x9I-EVAL
•
STM324xG-EVAL
•
STM32F429I-Discovery
•
STM32446E-EVAL
•
STM32F479I-EVAL
•
STM32F469I-DISCO
•
STM32F412G-DISCO
STM324x9I-EVAL
STM324xG-EVAL
STM32F429I-Discovery
STM324446E-EVAL
34/111

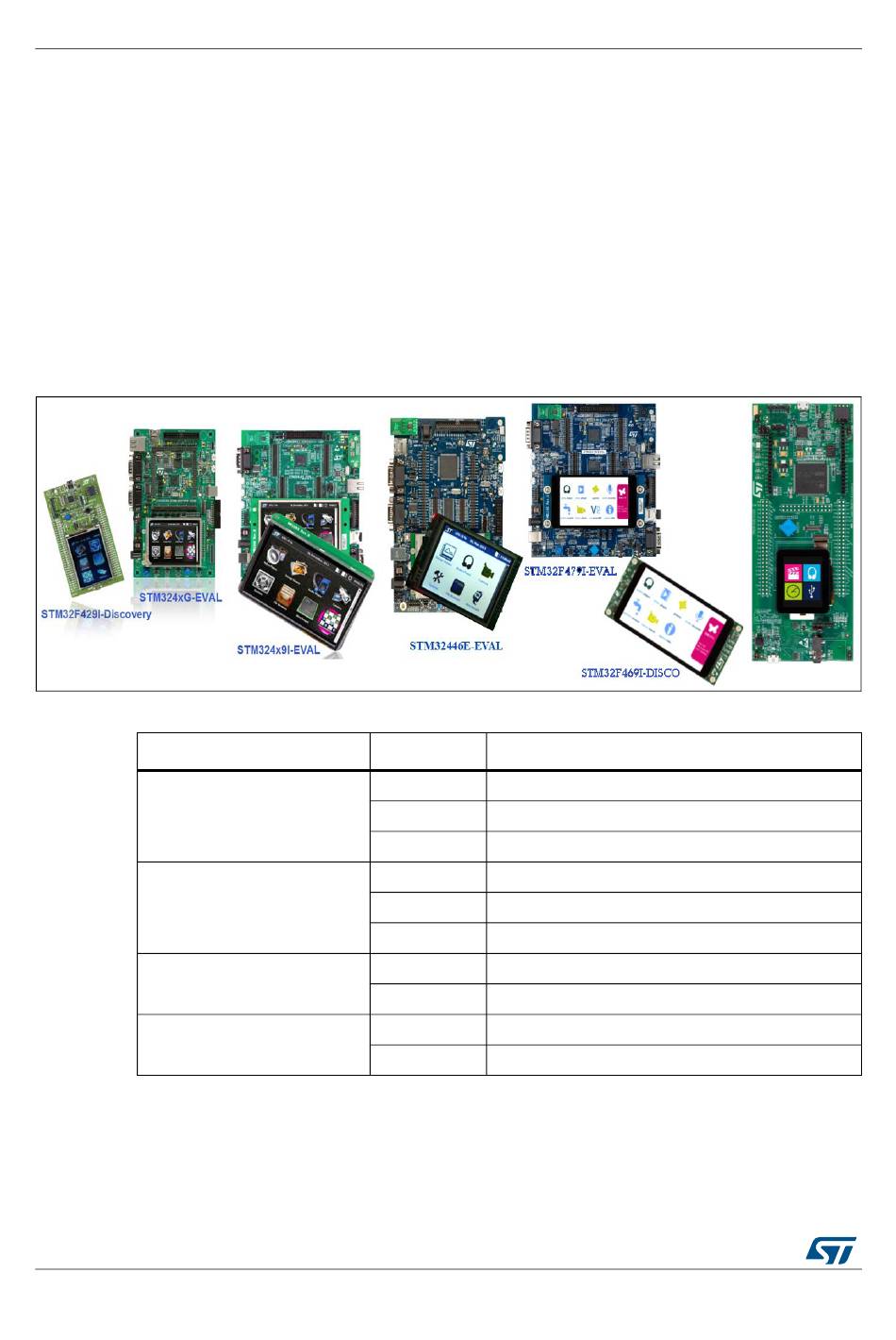

Figure 28. STM32Cube demonstration boards

Table 7. Jumpers for different demonstration boards

Board Jumper
JP4/JP5
DocID026161 Rev 4
JP16 Not fitted (used for USB device module)
<2-3> (used for Audio demonstration)
JP8 <2-3> (used for backup domain on battery)
JP16 <2-3> (used for Audio demonstration)
JP19 <2-3> (used for backup domain on battery)
JP31 <2-3> (used for USB device module)
JP3 ON (Power on MCU)
CN4 ON (Discovery mode)
JP4 <2-3> (used for USB device module)
JP19 <1-2> (used for audio player module)
STM32F412G-DISCO
Position description
UM1743
