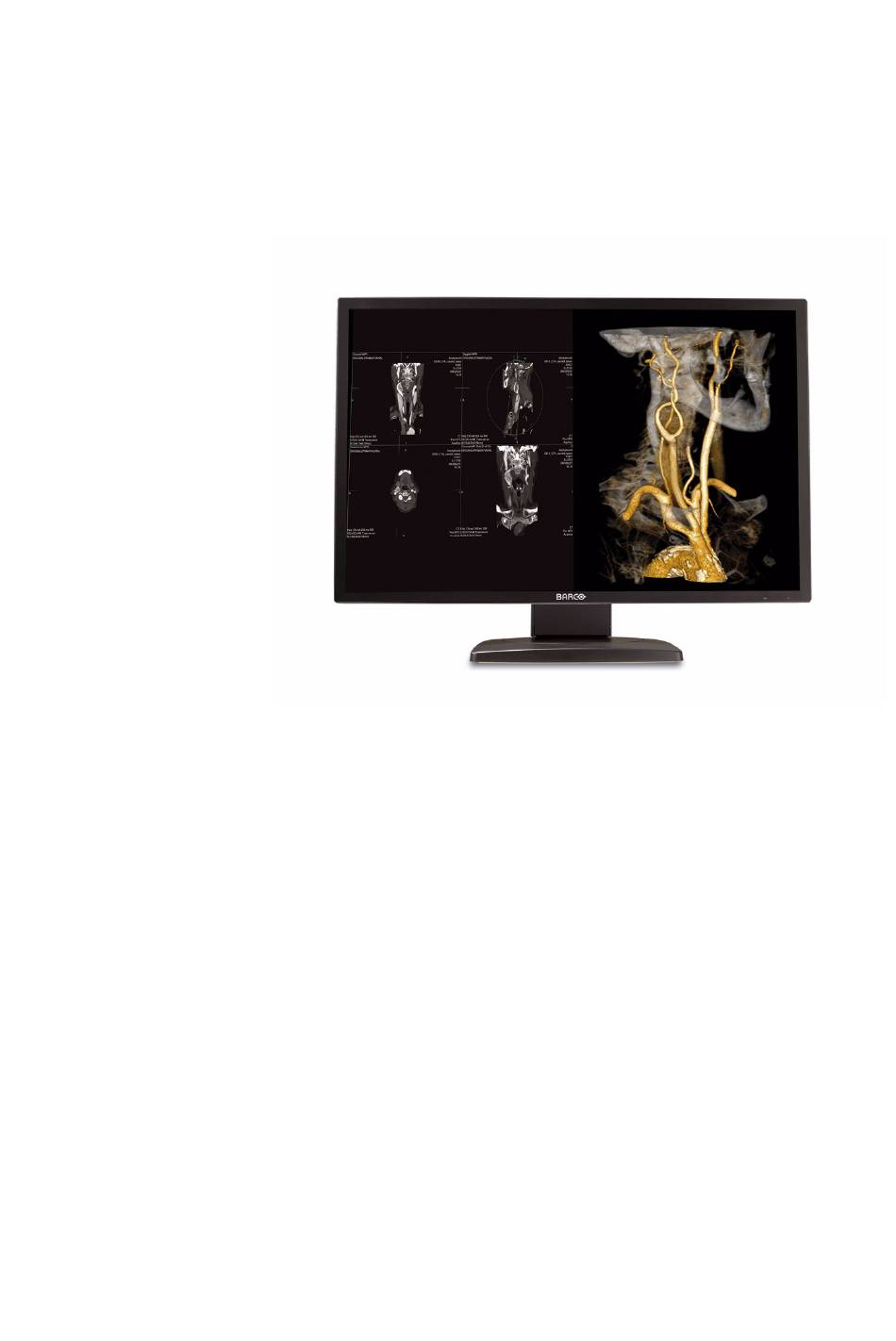

Nio Fusion 4MP
Getting Started Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nio Fusion 4MP and is the answer not in the manual?

Questions and answers

Related Manuals for Barco Nio Fusion 4MP

Summary of Contents for Barco Nio Fusion 4MP

  • Page 1 Nio Fusion 4MP Getting Started Guide...
  • Page 2 (This page intentionally left blank.)
  • Page 3 - graphical, electronic, or mechanical including photocopying, taping or information storage and retrieval systems - without written permission of Barco © 2006 Barco N.V. All rights reserved.

  • Page 4: Table Of Contents

    Table of Contents Table of Contents Preface ..................5 Environmental information..............9 Safety Instructions................10 Explanation of symbols ..............13 Introduction ................15 Display parts, controls and connectors..........16 Front.................... 16 Rear..................... 17 Connectors .................. 19 Display installation ..............23 Installation precautions..............

  • Page 5: Preface

    Preface...
  • Page 6 BarcoView software products are the property of BarcoView. They are distributed under copyright by Barco N.V. or BarcoView, LLC., for use only under the specific terms of a software license agreement between Barco N.V.
  • Page 7 003 du Canada. FCC Compliance Information (display controller) CLASS B: This Barco Graphics Controller complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 1. this device must accept any interference received, including interference that may cause undesired operation.
  • Page 8 The use of shielded cables for connection of the monitor to the graphics card is required to ensure compliance with FCC regula- tions. Changes or modifications to this unit not expressly approved by Barco could void the user’s authority to operate this equipment.

  • Page 9: Environmental Information

    Environmental information Environmental information Disposal Information The lamps inside the display contain mercury. Do not throw the display in the trash. Dispose of it as required by local ordinances or regulations. This equipment has required the extraction and use of natural resources for its production.

  • Page 10: Safety Instructions

    Safety Instructions Safety Instructions General Recommendations Read the safety and operating instructions before operating the display. Retain safety and operating instructions for future reference. Adhere to all warnings on the display and in the operating instructions manual. Follow all instructions for operation and use. Electrical shock Type of protection (electrical): Display with external power supply: Class III equipment...
  • Page 11 Safety Instructions Power cords: • Utilize a UL-listed detachable power cord, 3-wire, type SJ or equivalent, 18 AWG min., rated 300 V min., provided with a hospital-grade type plug 5-15P configuration for 120V application, or 6-15P for 240V application. • Do not overload wall outlets and extension cords as this may result in fire or electric shock.
  • Page 12 Safety Instructions Operating precautions Continuous operation of the display with the same image may result in some image sticking on the LCD panel. Over 10 hours operation with the same image content is not recommended. Switching on DPMS on display and PC and activating a good screen saver may decrease the risk of image sticking (image retention).

  • Page 13: Explanation Of Symbols

    Explanation of symbols Explanation of symbols Symbols on the display and / or power supply On the display or power supply, you may find the following symbols Indicates the display is approved according to the CE regulations Indicates the display is approved according to the UL regulations Indicates the display is approved according to the c-UL regulations...
  • Page 14 Explanation of symbols Symbols used throughout the manual: Warning: Risk of Caution: Risk of injury to human damage to the beings product Important notice or Note remark Hint, tip Additional information...

  • Page 15: Introduction

    Introduction...

  • Page 16: Display Parts, Controls And Connectors

    Display parts, controls and connectors Display parts, controls and connectors Front The front controls are soft touch keys. When you touch any of them while no on-screen display (OSD) is on the screen, the front illumination is switched on for a few seconds. When you touch a key again while the illumination is on, the function of the key is executed.

  • Page 17: Rear

    Display parts, controls and connectors To display the OSD (on-screen display). In the OSD, this button acts as Enter button to make selections. Standby touch key To put the display in standby mode. Power LED Indicates the display’s power status. Green: Display is on (when enabled in the OSD).
  • Page 18 Display parts, controls and connectors Connector compartment cover. Detach to get access to the signal connectors. Slots for security cable (e.g., Kensington lock). (Not visible on drawing) Push-button to release the panel unit from the display stand. This button is located on the rear of the panel.

  • Page 19: Connectors

    Display parts, controls and connectors Connectors Figure 3: Connectors rear Figure 4: Connectors front 1. Sealed connector. Not used.
  • Page 20 Display parts, controls and connectors Do not remove the seal. USB upstream connector (to PC). USB downstream connector. If the display’s USB upstream connector is connected to the PC USB bus, you can use the USB downstream connector to connect peripheral USB devices.
  • Page 21 Display parts, controls and connectors setting in the Preferred Input function in the on-screen display (Settings menu). After changing this setting you need to reboot the PC for the graphic board(s) to change the output resolution accordingly.
  • Page 22 Display parts, controls and connectors...

  • Page 23: Display Installation

    Display installation...

  • Page 24: Installation Precautions

    Installation precautions Installation precautions Caution: The display weighs about 20 kg. To avoid back injury, unpack, install and handle the display with 2 persons. Precautions • Keep your original packaging. It is designed for this display and is the ideal protection during transport. •...

  • Page 25: Connecting The Signal Cables

    Connecting the signal cables Connecting the signal cables To connect the signal cables to the display: Unpack the display and put it on a solid flat surface. Make sure the computer is turned off. To get access to the connectors, remove the connector compartment cover (1).
  • Page 26 Connecting the signal cables Connect the signal cables: Figure 6: Signal cable connections • For Single View mode, connect one end of a DVI cable to any of the DVI inputs of the display (4) or (5). Connect the other end of the DVI cable to the DVI connector of the graphic board.
  • Page 27 Connecting the signal cables DC power supply (10) to a grounded power outlet by means of the proper power cord delivered in the packaging. Figure 7: External DC power supply After routing the cables (see further), startup the display by touching the touch key.

  • Page 28: Cable Routing

    Cable routing Cable routing To route the cables: Figure 8: Cable routing Put the cables in the connector compartments in the provided clips. Route the cables alongside the neck and in the cable ducts in the tilt & swivel foot. Re-attach the connector compartment cover and neck cover.

  • Page 29: Vesa-Mount Installation

    Attach the panel firmly to the arm stand using 4 screws M4 x 10 You can mount the panel in landscape position or portrait position. When mounted in landscape position, the BARCO logo must be...
  • Page 30 Vesa-mount installation positioned at the bottom. When mounted in portrait position, the BARCO logo must be positioned at the left side.

  • Page 31: Where To Get More Information

    Where to get more information...
  • Page 32 The online user guide is installed on the system PC during the system driver installation. To open the online user guide, select Start>Program Files>Barco>Documentation>Nio online user guide from the Windows Start menu. The online user guide uses Java scripts to create the html pages. In Windows XP, SP2, it is possible that Internet Explorer blocks them for security reasons.
  • Page 33 Vesa-mount installation...
  • Page 34 Vesa-mount installation...

  • Page 35: Troubleshooting

    Troubleshooting...

  • Page 36: General Tips

    4MP you must be logged in using an account with USION administrator privileges. If you are using a color display in conjunction with your Barco grayscale display(s) or you should configure your desktop before setting the resolution of the your Barco grayscale display(s).
  • Page 37 True Color (32 bits per pixel). Even though this palette mode supports 32 bit True Color, Barco recommends that when using a using a color display in conjunction with your high-resolution grayscale display(s) that you still set the color display as the primary monitor of the Windows desktop.
  • Page 38 MXRT-2100 display controller. If you installed your Nio Fusion 4MP drivers in DualView mode (default for Windows XP) there will be a rectangle representing each head controlled by each MXRT-2100 display controller. This will be true even if you have only one display connected to your MXRT-2100 controller.
  • Page 39 General tips To set the resolution of the second display attached to the BarcoMed display controller you are working with, go back to the “Settings” tab of the “Display Properties Control Panel”. If necessary attach the second display you detached in step 2 above, by right clicking on the rectangle that represents it and selecting Attached.
  • Page 40 General tips...

  • Page 41: Warranty Statement

    Warranty Statement...
  • Page 42 General tips ARTICLE 1: SERVICES BarcoView warrants that the equipment will be free of defects in workmanship or material for the warranty period. Notwithstanding the provisions of clause 2, repair and replacement of defects in material and/or workmanship under this warranty shall be accomplished in our works in the following manner: 1.1 The Customer, upon the occurrence of any equipment failure, shall contact BarcoView Customer Support Center (or an authorized service center) by telephone, fax or e-mail and shall provide the applicable Customer Support person with a complete description of the problem being encountered,...
  • Page 43 General tips Customer hereby assumes the following obligations as partial consideration for BarcoView performance of its requirements under the warranty condition; failure by Customer to meet its obligations under this paragraph shall excuse BarcoView's performance hereunder: 3.1 Customer shall not expose BarcoView personnel to any unsafe working conditions. 3.2 Repairs to equipment under warranty resulting from improper maintenance or repair performed by the Customer, or its officers, agents, employees, or representatives, shall be borne by the Customer at its additional cost and expense.
  • Page 44 K5902002 - 01 October 2006 www.barco.com...
