Nio Fusion 4MP
Online User Guide

Advertisement

Table of Contents
loading

Related Manuals for Barco Nio Fusion 4MP

Summary of Contents for Barco Nio Fusion 4MP

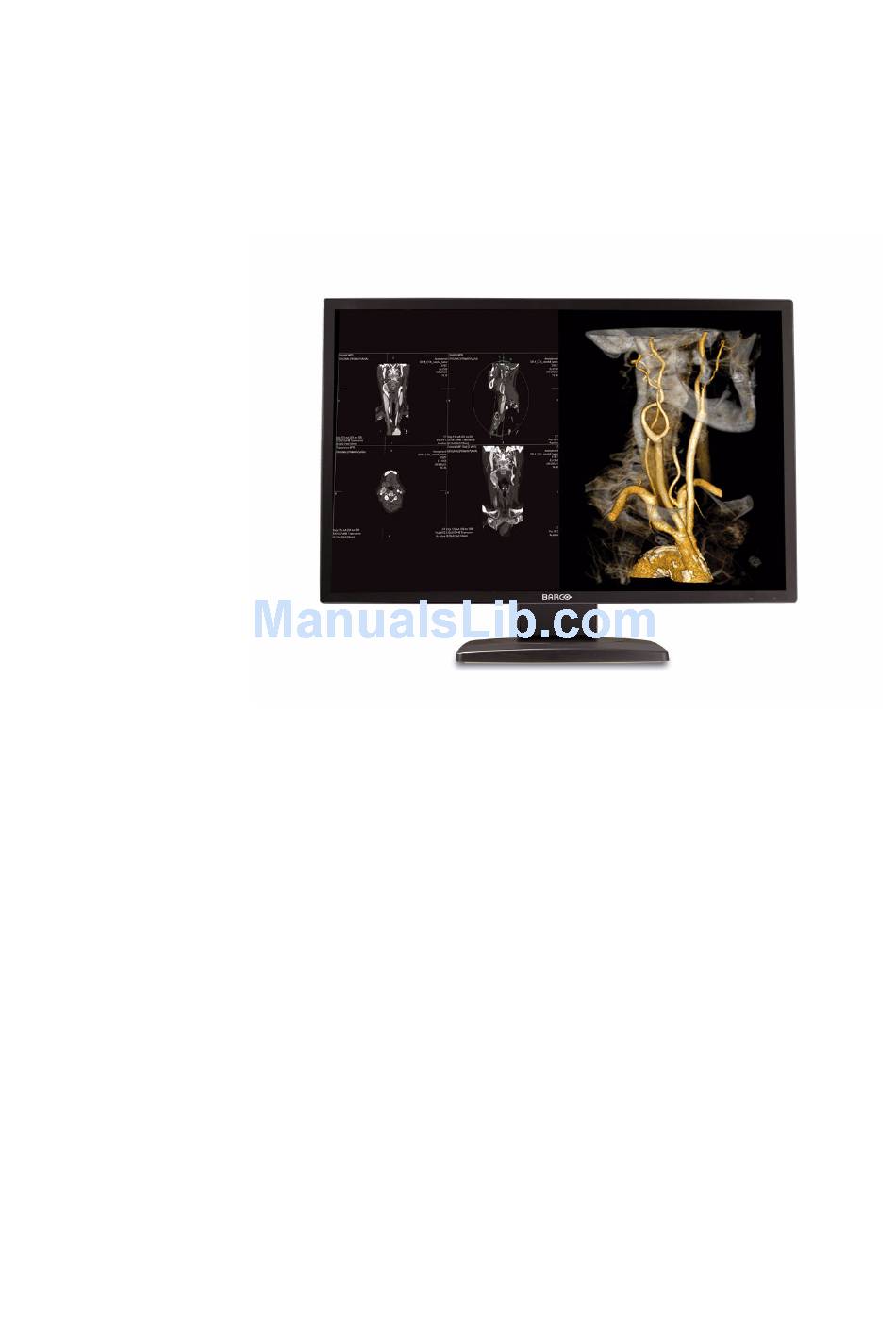

  • Page 1 Nio Fusion 4MP Online User Guide...
  • Page 2 (This page intentionally left blank.) (This page intentionally left blank.)

  • Page 3: Sources Of Information

    Using the online User Guide Using the online User Guide Sources of information Overview of product documentation Document Content Quick install sheet Gives a short overview of the installa- (poster in box) tion of a complete system. Getting started guide Gives a detailed description of the (booklet in box) installation and connection of a com-...
  • Page 4 Using the online User Guide Item Description Favorites Allows to add and remove help topics to a list of favorites. (requires cookies) Items in the toolbar frame Item Description Press this button to show the location of Synchronize the help item in the Contents. Press this button to move to the previ- Previous ous help topic.

  • Page 5: Languages Supported

    4MP Display System using the tools available through the USION Advanced button on the Settings tab of the Windows Display Control Panel. Note: If you purchased Barco Medical Displays only and not a complete B 4MP Display System you will need to ARCO USION refer to the user manual for the display controller you are using.

  • Page 6: Barco Driver Properties

    The second section provides information about the display. The bottom section allows access to two Barco tools, Barco System Report and MediCal QAWeb. Also, there is a active link to the Barco Medical Imaging Systems web site.
  • Page 7 Barco system report The Barco System Report, also known as BarcoMed SelfExam, is a wizard based tool which collects data about the components that are...

  • Page 8: Advanced Properties For Mxrt Controller

    Graphic board control panel installed in your system. This information is used by the Barco MIS Support team when trying to resolve customer issues. MediCal QAWeb Clicking on the QA Web button will launch the MediCal QAWeb application. Please refer to the MediCal QAWeb manual for information about this application.

  • Page 9: Color Format

    If it is unchecked, then it will be the largest mode in the Cloned displays mode list. Clone mode can only be exited through the Barco Adapter Configuration page in the Barco Advanced Control Panel. Note: Not all options are available at all times. Please select...

  • Page 10: Main Settings

    There is also a checkbox provided for enabling Custom Settings. Custom Settings Note: Barco recommends that you use the default settings, unless your viewing application vendor provides detailed information on custom settings.

  • Page 11: Device Details

    Rotation The Rotation page is visible only when the display connected to the current (active) head of your Barco MXRT display controller does not support rotation internally. The Rotation feature allows the user to rotate the Windows desktop to match the physical orientation of the display.
  • Page 12 Graphic board control panel OpenGL Profiles The Configuration page enables you to customize display profiles for individual applications. Typically, you would change these settings for one or more of the following reasons: • Diagnostic purposes. • Fine-tuning a specific application/system configuration. •...

  • Page 13: Configuring The Windows Desktop

    Barco grayscale display(s). You must have logged on to Windows using an account with administrator privileges in order to use the Barco portions of the Windows Display Control Panel to change any display settings.
  • Page 14 Graphic board control panel palette mode supports 32 bit True Color, Barco recommends that when using a using a color display in conjunction with your high- resolution grayscale display(s) that you still set the color display as the primary monitor of the Windows desktop.

  • Page 15: Display Information

    To do this, go to “Power Options Properties” in the “Control Panel”. Barco recommends setting DPMS activation after 20 minutes of non-usage. 2. Use a screen saver to avoid image retention Prolonged operation of an LCD with the same content on the same screen area may result in a form of image retention.
  • Page 16 Display information diagnostic performance of the product. To ensure optimal product quality, Barco applies strict selection criteria for its LCD panels. To learn more about LCD technology and missing pixels, consult the dedicated white paper available at www.barcomedical.com. 4. Enhance user comfort Every Barco multi-head display system is color matched with the highest specification in the market.

  • Page 17: Display Controls

    Display information Display controls Overview of controls The front controls are soft touch keys. When you touch any of them while no on-screen display (OSD) is on the screen, the front illumination is switched on for a few seconds. When you touch a key again while the illumination is on, the function of the key is executed.

  • Page 18: How To Use The Controls

    Display information To display the OSD (on-screen display). In the OSD, this button acts as Enter button to make selections. Standby touch key To put the display in standby mode. Power LED Indicates the display’s power status. Green: Display is on (when enabled in the OSD). Orange: Display is in Standby power-saving mode.

  • Page 19: Stand-By Switching

    Display information into edit mode. This is indicated by the scroll bar becoming longer. SETTINGS DPMS Power LED User Controls EXIT Figure 3: Setting is selected SETTINGS DPMS Power LED User Controls EXIT Figure 4: Edit mode is active Use Up or Down to change the value.

  • Page 20: Info Messages

    Display information A warning message appears. Press the Stand-by touch key again to switch the display into stand-by or press any other key to keep the display in on state. To switch from stand-by to on state: Touch any of the soft touch keys. The front illumination is switched on for about 10 seconds.

  • Page 21: On-Screen Display (Osd)

    Display information display with office applications such as word processing. You can switch between both modes by touching the up and down keys at the same time. On-screen display (OSD) Complete OSD Luminance and color menu Name Description Measured luminance Indicates the actual luminance mea- sured by the internal sensor.

  • Page 22: Display Function Menu

    Display information Display Function menu Name Description Display function Allows to select from a list of pre- defined display functions. If the DICOM DF is selected, a number of additional settings is available. ALC & DICOM options Jumps to the ALC & DICOM Options sub- menu, which allows to edit the settings for the DICOM display function.
  • Page 23 Display information Name Description Reading room def. Jumps to the reading room definition submenu, which allows to edit the reading room condition settings. Calibration info Jumps to the calculation information submenu, which displays information about the values taken into account to recalculate the DICOM DF.

  • Page 24: Settings Menu

    Display information Name Description Bright luminance Shows the bright luminance value taken into account to calculate the DICOM DF. Dark luminance Shows the dark luminance value taken into account to calculate the DICOM DF. Ambient correction Shows the ambient light correction value taken into account to calculate the DICOM DF, expressed in cd/m².
  • Page 25 • The DPMS system will power down the display when the connected computer is left idle for a certain time. Barco recommends to switch DPMS on to prevent image burn-in (image retention) on the LCD panel. • To enter the user controls keycode, the OSD must not be visible.

  • Page 26: Information Menu

    Display information Information menu Information Name Description Product The display type Serial No Indicates the display serial number SW Number Displays the internal software number SW Version Displays the current internal software version Display Lifetime Indicates the total time the display has been operating, including the time in stand-by Backlight Lifetime Indicates the total time the display has been...

  • Page 27: Display Function Selection

    Display information Maximum Ambient Light defines the maximum light allowed in this type of room. This value can be adjusted within certain limits determined by the selected reading room. Preset Correction Value is the predefined correction value for this reading room. This value can be adjusted within certain limits determined by the selected reading room.
  • Page 28 Display information You can select the following DFs: Name Description DICOM Select a DICOM display function for most medical viewing applications. The DICOM function results in more visi- ble grayscales in the images. Dyn Gamma 2.2 These are gamma functions that are Dyn Gamma 1.8 shifted to take into account the non-zero luminance of an LCD panel when driven...
  • Page 29 Display information In the ALC & DICOM Options menu, use Up or Down select DICOM Offset. Use Enter to go into edit mode. Use Up or Down to select an offset. Use Enter to save the changes. You can select the following offsets: Value Description Dark Room...
  • Page 30 Display information You can select the following reading room types:: Name Description CR/DR/MAMMO Corresponds to light conditions in diag- nostic reading rooms for computed radi- ology, digital radiology or mammography. This setting has the lowest maximum ambient light. CT/MR/NM Corresponds to light conditions in diag- nostic reading rooms for computed tomography, magnetic resonance or nuclear medicine scans.

  • Page 31: Switching Dpms On/Off

    Display information go into edit mode. Use Up or Down to select the reading room. Use Enter to confirm the selection. To modify the maximum ambient light for this reading room, use Up or Down to select Max. Ambient Light. Use Enter to go into edit mode.

  • Page 32: Switching Power Led On/Off

    Display information Switching Power LED on/off To switch the power LED on/off: Touch any of the soft touch keys. The front illumination is switched on. While the illumination is on, touch the Enter touch key to display the main menu. Use the Up or Down touch keys to select the Settings...
  • Page 33 Display information Exit the OSD Now the user cannot display the OSD again until the user controls keycode is entered (see below). To enable the user controls again: To enter the user controls keycode, the OSD must not be visible. Touch any of the soft touch keys to switch on the front illumination.
  • Page 34 Barco web sites Barco web sites Visit Barco at: http://www.barco.com Visit Medical Imaging at: http://www.barco.com/medical...
  • Page 35 K5902003-01 November 2009 Barco nv Medical Imaging President Kennedypark 35 B-8500 Kortrijk, Belgium www.barco.com...
