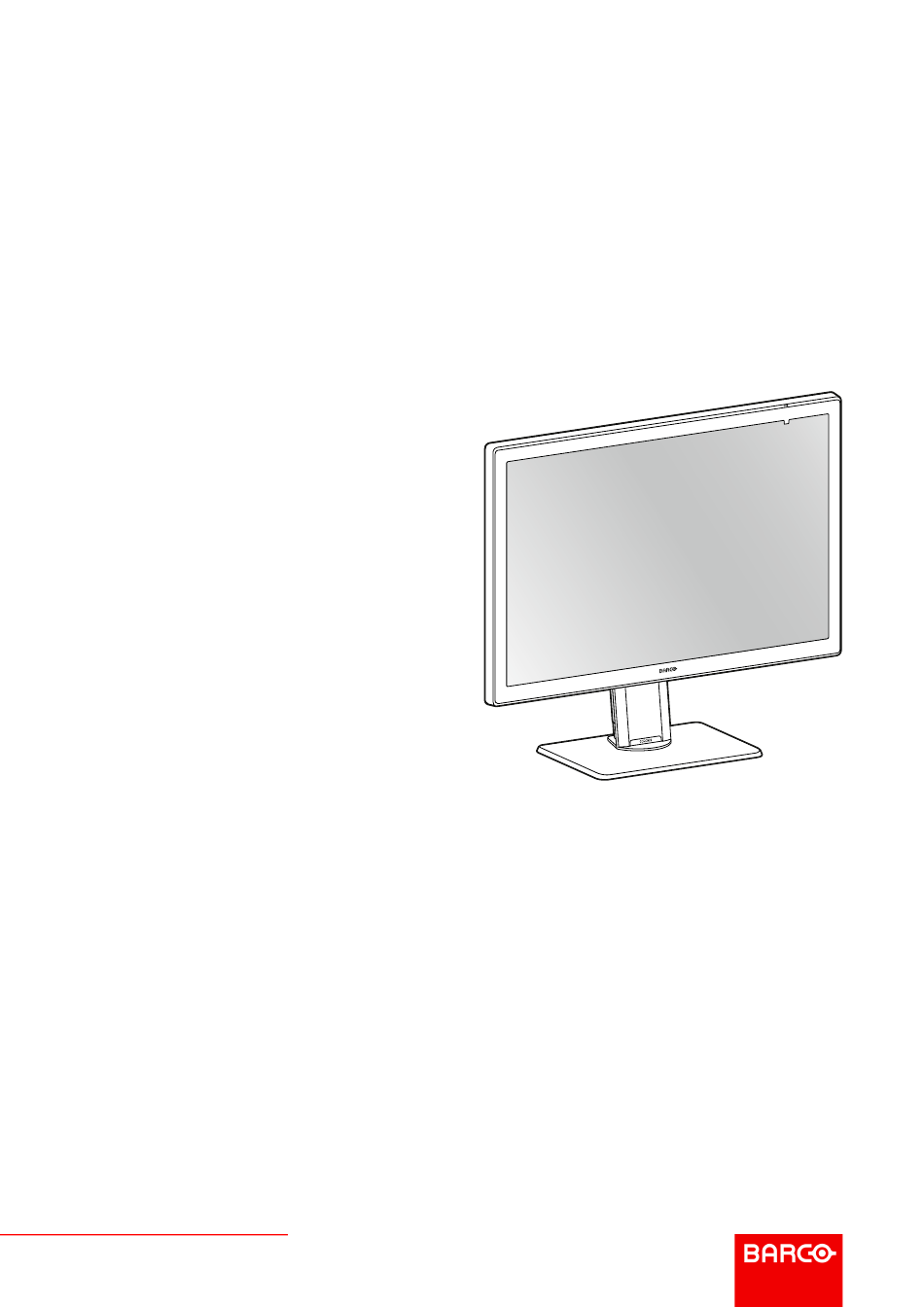

Coronis Fusion 4MP / 6MP
User guide
MDCC-4430
MDCC-6530
ENABLING BRIGHT OUTCOMES

Advertisement

Table of Contents
loading

Related Manuals for Barco Coronis Fusion 4MP Series

Summary of Contents for Barco Coronis Fusion 4MP Series

  • Page 1 Coronis Fusion 4MP / 6MP User guide MDCC-4430 MDCC-6530 ENABLING BRIGHT OUTCOMES...
  • Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...

  • Page 3: Table Of Contents

    Table of contents 1 Welcome! ..........................................5 What's in the box....................................6 Product overview....................................6 2 Installation ..........................................9 Display position adjustment ................................10 Cable connections.................................... 11 VESA-mount installation................................12 First time starting up..................................14 3 Daily operation.........................................17 Recommendations for daily operation ..........................18 Shortcut functions.....................................18 SoftGlow lights....................................19 Standby switching.....................................19 OSD main menu use..................................19 4 Advanced operation.....................................21...
  • Page 4 4.18.4 DICOM calibration .................................30 4.18.5 Reset DICOM calibration............................31 4.18.6 DICOM error threshold ...............................31 4.19 Image scaling ......................................31 4.20 Image source selection..................................31 4.21 Grayscale conversion modes..............................32 4.22 DisplayPort standard version ..............................32 4.23 EDID timings......................................33 4.24 Display info ......................................33 4.25 Display status......................................33 5 Cleaning your display ....................................35 Cleaning instructions ..................................36 6 Repackaging instructions..................................37...

  • Page 5: Welcome

    Welcome! R5911227 /02 Coronis Fusion 4MP / 6MP...

  • Page 6: What's In The Box

    • USB cable If you ordered a Barco display controller, it is also in the box together with its accessories. A dedicated user guide is available on the documentation disc. Keep your original packaging. It is designed for this display and is the ideal protection during transport and storage.
  • Page 7 Jog dial Cable routing channels Stand locking mechanism Connections Image 1-2 Kensington security slot Service port (for Barco service purposes only) DisplayPort IN 2 DisplayPort OUT DisplayPort IN 1 USB-A 2.0 downstream connectors (2x) USB-B 2.0 upstream connector 100–240 VAC mains power input and power switch...
  • Page 8 Welcome! R5911227 /02 Coronis Fusion 4MP / 6MP...

  • Page 9: Installation

    (MyBarco > My Support > Healthcare > Compatibility Matrices > Barco Systems Compatibility Matrices) Your Barco display operates best when driven by a Barco MXRT display controller and when operated together with Barco’s Intuitive Workflow Toolset. To obtain the MXRT driver (including the Intuitive Workflow Toolset), navigate to www.barco.com/mxrt.

  • Page 10: Display Position Adjustment

    Installation 2.1 Display position adjustment To adjust the display position You can safely tilt and swivel the display as desired. Image 2-1 To adjust the height of the display After unlocking the height-positioning system of your display, you can adjust the height of the display. Set the slider to the unlocked position to unlock the stand locking mechanism at the back of the stand.

  • Page 11: Cable Connections

    Installation Image 2-3 WARNING: The display must be in its lowest position before the height-positioning system can be locked or unlocked. 2.2 Cable connections To connect the cables Open the connector compartment. Do this by gently lifting the bottom of the connector compartment cover, after which it can be removed from the display.

  • Page 12: Vesa-Mount Installation

    Installation The DisplayPort OUT allows you to daisy chain your Barco display and an external display using DisplayPort Multi-Stream Transport (MST). Connect the workstation's USB host to the USB upstream connector on the display if you want to make use of QAWeb or any of the display USB downstream connectors (e.g. to connect a keyboard, mouse, touchpad or another peripheral).
  • Page 13 Installation Image 2-6 Put the display face down on a clean and soft horizontal surface. Be careful not to damage the panel screen. Release the VESA mount cover with a flathead screw driver. Image 2-7 Lift the VESA mount cover. Image 2-8 Rotate the VESA mount cover to uncover the screws fixing the panel to the stand.

  • Page 14: First Time Starting Up

    Installation Image 2-9 Unscrew the 4 fixation screws while supporting the stand. Image 2-10 Attach the panel firmly to the arm using 4 M4 screws. Respect the following rule to select an appropriate screw length: • = T + W + 6.5 mm •...
  • Page 15 Your Coronis Fusion 4MP / 6MP display will be running in a basic video mode at a default refresh rate when first time starting up. If you are using a Barco display controller, please consult the dedicated user guide available on the system CD to install the drivers, software and documentation.
  • Page 16 Installation R5911227 /02 Coronis Fusion 4MP / 6MP...

  • Page 17: Daily Operation

    Daily operation R5911227 /02 Coronis Fusion 4MP / 6MP...

  • Page 18: Recommendations For Daily Operation

    LCD displays use technology based on pixels. As a normal tolerance in the manufacturing of the LCD, a limited number of these pixels may remain either dark or permanently lit, without affecting the diagnostic performance of the product. To ensure optimal product quality, Barco applies strict selection criteria for its LCD panels.

  • Page 19: Softglow Lights

    Daily operation • Standby To use the shortcut functions Shortly push or turn the jog dial during normal operation to activate the shortcut functions. The shortcut functions appear at the bottom right of the screen. Image 3- Image 3- Image 3- Turn the jog dial left or right to select one of the shortcut functions.
  • Page 20 Daily operation As a result, the OSD main menu comes up. If no further actions are taken within the next 90 seconds, the OSD menu will disappear again. The OSD menu auto-exit function can be disabled in the OSD menu. Please refer to “OSD menu automatic close function”, page 22 for detailed instructions on how to do this.

  • Page 21: Advanced Operation

    Advanced operation R5911227 /02 Coronis Fusion 4MP / 6MP...

  • Page 22: Osd Menu Language

    Advanced operation 4.1 OSD menu language About the OSD menu language By default, the OSD menu comes up in English. However, there’s a wide range of other languages available for the OSD menu of your Coronis Fusion 4MP / 6MP. To change the language of the OSD menu: Bring up the OSD main menu.

  • Page 23: Softglow Task Light

    Advanced operation Navigate to the Configuration > User Interface > Controls menu. Enter the Power Lock submenu. Select Enabled/Disabled as desired and confirm. 4.5 SoftGlow Task light About the SoftGlow Task light The Coronis Fusion 4MP / 6MP is equipped with a SoftGlow Task light. This allows you to have light on your desk in a dark environment.

  • Page 24: Dpms Mode

    By default, DPMS mode is enabled on your display, but it also needs to be activated on your workstation. To do this, go to the “Power options properties” window of your workstation. Barco recommends setting DPMS activation after 20 minutes of non-usage. When DPMS mode is enabled on your display, an additional OSD power saving function becomes available: hibernate.

  • Page 25: Luminance Target

    Advanced operation 4.9 Luminance target About the luminance target The luminance target of your Coronis Fusion 4MP / 6MP is adjustable over a predefined range. When you change the luminance target, the display will adjust its backlight to reach the target. To set the luminance target: Bring up the OSD main menu.

  • Page 26: Color Coordinates

    Advanced operation 4.10.2 Color coordinates About color coordinates: It is possible to change the color coordinates of your display. Color coordinates can only be changed on your display when Color Presets is set to User. To change the color coordinates: Bring up the OSD main menu.

  • Page 27: Display Functions

    DICOM: DICOM (Digital Imaging and Communications in Medicine) is an international standard that was developed to improve the quality and communication of digital images in radiology. In short, the DICOM display function results in more visible grayscales in the images. Barco recommends selecting the DICOM display function for most medical viewing applications.

  • Page 28: Ambient Light Compensation (Alc)

    Advanced operation 4.15 Ambient Light Compensation (ALC) About ALC Ambient Light Compensation (ALC) can only be enabled on your display when the DICOM display function is selected. Therefore, please refer to “Display functions”, page 27 to correctly set the display function. When ALC is enabled, the DICOM display function will be recalculated taking a preset ambient light correction value into account.

  • Page 29: Continuous Alc

    Embedded QA is not a replacement for the Barco MediCal QAWeb solution. Although Embedded QA is a reliable option to perform a simple calibration or compliance test, Barco still highly recommends MediCal QAWeb as the solution of choice for calibration and QA. Medical QAWeb brings...

  • Page 30: Dicom Compliance Check

    Advanced operation • Error threshold: Shows the error threshold. This is the maximum error allowed before a DICOM calibration is required. • Time elapsed since latest compliance check: Shows the backlight runtime since last compliance check. • Display Function: Shows the current display function. •...

  • Page 31: Reset Dicom Calibration

    Advanced operation 4.18.5 Reset DICOM calibration About reset DICOM calibration It is possible to restore the original (factory default) DICOM curve. To reset the DICOM calibration: Bring up the OSD main menu. Navigate to the Configuration > Calibration > Embedded QA menu. Enter the DICOM Preferences submenu.

  • Page 32: Grayscale Conversion Modes

    Advanced operation Navigate to the Configuration > Image Sources menu. Enter the Image Source Selection submenu. Select the Automatic image source selection mode and confirm. To manually select image sources: Bring up the OSD main menu. Navigate to the Configuration > Image Sources menu. Enter the Image Source Selection submenu.

  • Page 33: Edid Timings

    Advanced operation Enter the Input Interface Standard Version submenu. Select one of the available versions and confirm. To obtain full resolution and full refresh rate, DP V1.2 should be selected. 4.23 EDID timings About EDID timings Following EDID timings are available for your Coronis Fusion 4MP / 6MP: •...
  • Page 34 Advanced operation R5911227 /02 Coronis Fusion 4MP / 6MP...

  • Page 35: Cleaning Your Display

    Cleaning your display R5911227 /02 Coronis Fusion 4MP / 6MP...

  • Page 36: Cleaning Instructions

    Cleaning your display 5.1 Cleaning instructions To clean the display Clean the display using a sponge, cleaning cloth or soft tissue, lightly moistened with a recognized cleaning product for medical equipment. Read and follow all label instructions on the cleaning product. In case of doubt about a certain cleaning product, use plain water.

  • Page 37: Repackaging Instructions

    Repackaging instructions R5911227 /02 Coronis Fusion 4MP / 6MP...

  • Page 38: Repackaging Instructions

    Repackaging instructions 6.1 Repackaging instructions To repack your display Lock the stand locking mechanism at the lowest display position. Image 6-1 Place the display in the bottom buffer on a stable surface. Caution: It takes 2 persons to safely execute this action. Image 6-2 Insert the rear buffer in the bottom buffer.
  • Page 39 Repackaging instructions Image 6-3 Position the front buffer. Image 6-4 Slide the accessory box(es) and all cables in the dedicated cavities. R5911227 /02 Coronis Fusion 4MP / 6MP...
  • Page 40 Repackaging instructions Image 6-5 Slide the display and the accessories in the box. Image 6-6 Close and seal the box. R5911227 /02 Coronis Fusion 4MP / 6MP...
  • Page 41 Repackaging instructions Image 6-7 R5911227 /02 Coronis Fusion 4MP / 6MP...
  • Page 42 Repackaging instructions R5911227 /02 Coronis Fusion 4MP / 6MP...

  • Page 43: Important Information

    Important information R5911227 /02 Coronis Fusion 4MP / 6MP...

  • Page 44: Safety Information

    Important information 7.1 Safety information General recommendations Read the safety and operating instructions before operating the device. Retain safety and operating instructions for future reference. Adhere to all warnings on the device and in the operating instructions manual. Follow all instructions for operation and use. Electrical Shock or Fire Hazard To prevent electric shock or fire hazard, do not remove cover.

  • Page 45: Environmental Information

    For more information about recycling of this product, please contact your local city office or your municipal waste disposal service. For details, please visit the Barco website at: http://www.barco.com/AboutBarco/weee R5911227 /02...
  • Page 46 Electronic Products ” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.

  • Page 47: Regulatory Compliance Information

    The manufacturing country of the product is indicated on the product label (“Made in …”). Importers contact information To find your local importer, contact one of Barco’s regional offices via the contact information provided on our website (www.barco.com). FCC class B This device complies with Part 15 of the FCC Rules.

  • Page 48: Emc Notice

    Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC responsible: Barco Inc., 3059 Premiere Parkway Suite 400, 30097 Duluth GA, United States, Tel: +1 678 475 8000...
  • Page 49 Important information If this equipment does cause harmful interference to, or suffer from harmful interference of, surrounding equipment, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna or equipment. •...

  • Page 50: Explanation Of Symbols

    Important information Immunity to RF wireless communications equipment Test Immunity Maximum Distance frequency Band (MHz) test level (V/ Service Modulation power (W) (MHz) 380 – 390 TETRA 400 Pulse modulation 18 Hz 430 – 470 GMRS 460, FM ± 5 kHz FRS 460 deviation 1 kHz sine...
  • Page 51 Important information Indicates the device is approved according to the UL regulations for Canada and US E352529 Indicates the device is approved according to the UL Demko regulations Indicates the device is approved according to the CCC regulations Indicates the device is approved according to the VCCI regulations Indicates the device is approved according to the KC regulations Indicates the device is approved according to the BSMI regulations Indicates the device is approved according to the PSE regulations...
  • Page 52 Important information Warning: dangerous voltage Caution Consult the operating instructions Indicates this device must not be thrown in the trash but must be recycled, according to the European WEEE (Waste Electrical and Electronic Equipment) directive Indicates Direct Current (DC) Indicates Alternating Current (AC) Stand-by Equipotentiality Protective earth (ground)

  • Page 53: Legal Disclaimer

    Barco software products are the property of Barco. They are distributed under copyright by Barco NV or Barco Inc., for use only under the specific terms of a software license agreement between Barco NV or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized.
  • Page 54 Important information Bit depth 30 bit Viewing angle (H, V) 178° Uniformity correction Color PPU SteadyColor Ambient light presets Yes, reading room selection Ambient light sensor Front sensor Yes, I-Guard Maximum luminance (panel 1050 cd/m² typical) DICOM calibrated luminance 600 cd/m² Contrast ratio (panel typical) 2000:1 Response time ((Tr + Tf)/2) 18 ms...
  • Page 55 Important information Certifications FDA 510(k) K191845 for General Radiology pending CE1639 (MDD 93/42/EEC; A1:2007/47/EC class IIb product) CCC (China), KC (Korea), PSE (Japan), BIS (India), BMSI (Taiwan), EAC (Russia, Kazakhstan, Belarus, Armenia and Kyrgyzstan) Safety specific: IEC 60950-1:2005 + A1:2009 EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011 + A2:2013 IEC 60601-1:2005 + A1:2012 EN 60601-1:2006 + A1:2013 + A12:2014...
  • Page 56 Important information Configurable to 2 x 3MP+ (1640 x 2048 pixels) Configurable to 2 x 3MP (1536 x 2048 pixels) Pixel pitch 0.1995 mm Color imaging Gray imaging Bit depth 30 bit Viewing angle (H, V) 178° Optical glass Yes (optional) Uniformity correction Color PPU SteadyColor...
  • Page 57 Important information Net weight packaged Version with Protective cover: 22.3 kg (without optional accessories) Version with Optical glass: 23.1 kg (without optional accessories) Tilt -5° to +25° Swivel -30° to +30° Pivot Height adjustment range 100 mm Mounting standard VESA (100 mm) Screen protection Protective, anti-reflective glass cover Optical bonded protective, anti- reflective glass cover (optional)

  • Page 58: Open Source License Information

    Barco whatsoever. You further acknowledge that any such additions, changes or modifications may impair the ability of Barco – at Barco’s sole discretion - to continue to provide service, warranties, software updates, fixes, maintenance, access or such similar abilities, without any recourse or claim towards Barco whatsoever.
  • Page 59 Important information R5911227 /02 Coronis Fusion 4MP / 6MP...
  • Page 60 Barco NV President Kennedypark 35 8500 Kortrijk Belgium R5911227 /02 | 2019-08-23 Barco NV | Beneluxpark 21, 8500 Kortrijk, Belgium Registered office: Barco NV | President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com...
