Summary of Contents for Barco MDCC-4430

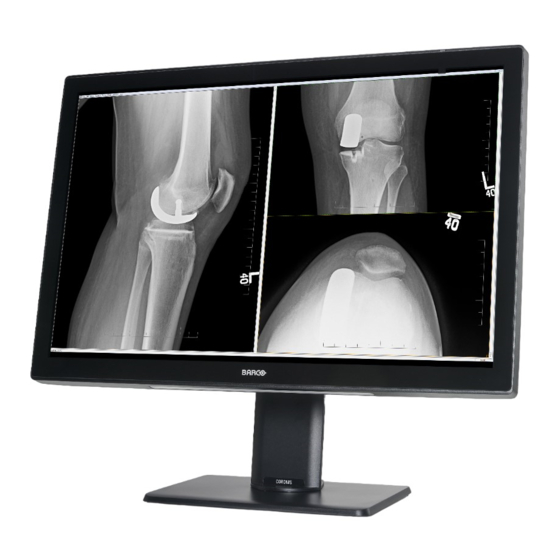

- Page 1 Coronis Fusion 4MP / 6MP User guide MDCC-4430 (NC) MDCC-6530 (NC) ENABLING BRIGHT OUTCOMES...
- Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
-
Page 3: Table Of Contents
Table of contents 1 Welcome!.......................................... 5 What's in the box ....................................6 At a glance ......................................6 2 Installation ........................................9 Display controller installation..............................10 Display position adjustment ..............................10 Cable connections..................................11 MXRT driver and Intuitive Workflow Tools installation ....................12 QAWeb registration ..................................13 VESA-mount installation ................................13 3 Daily operation ......................................17 Recommendations for daily operation ..........................18... - Page 4 4.15 Ambient Light Compensation (ALC).............................28 4.16 Reading rooms ....................................28 4.17 Continuous Ambient Light Compensation (ALC)......................29 4.18 Embedded QA ....................................29 4.18.1 About Embedded QA..............................29 4.18.2 DICOM status report ..............................29 4.18.3 DICOM compliance check .............................30 4.18.4 DICOM calibration ..............................30 4.18.5 Reset DICOM calibration............................31 4.18.6 DICOM error threshold.............................31 4.19...
-
Page 5: Welcome
Welcome! R5911227 /05 Coronis Fusion 4MP / 6MP... -
Page 6: What's In The Box
• Cables for Mains, Video and USB If you ordered a Barco MXRT display controller, it is also in the box together with its accessories. A dedicated user guide is available on the documentation disc. Keep your original packaging. It is designed for this display and is the ideal protection during transport and storage. - Page 7 Connectors Image 1–2 1. Kensington security slot 2. Service port (for Barco service purposes only) 3. DisplayPort IN 2 4. DisplayPort OUT (covered with a plastic cap by default, remove the cap to use this connector) 5. DisplayPort IN 1 6.
- Page 8 Welcome! R5911227 /05 Coronis Fusion 4MP / 6MP...
-
Page 9: Installation
Installation R5911227 /05 Coronis Fusion 4MP / 6MP... -
Page 10: Display Controller Installation
To adjust the height of the display, first move the slider at the back of the stand to the unlock position. Then you can raise or lower the display as desired. For a list of compatible display controllers, please refer to the compatibility matrix available on my.barco.com (MyBarco > My Support > Healthcare > Compatibility Matrices > Barco Systems Compatibility Matrices) -
Page 11: Cable Connections
Installation Image 2–2 Image 2–3 WARNING: The height can be locked only when the display is in the lowest position, even though the slider at the back of the stand can be moved to the lock position at any height of the display. 2.3 Cable connections To connect the cables 1. -
Page 12: Mxrt Driver And Intuitive Workflow Tools Installation
About When you are using a Barco MXRT display controller, you can start up your Coronis Fusion 4MP / 6MP display system and install the MXRT driver and Intuitive Workflow Tools . Barco’s Intuitive Workflow Tools are designed to increase visibility of subtle details, improve focus during reading sessions, and accelerate workflow. -
Page 13: Qaweb Registration
Installation 4. Install the MXRT driver and Barco’s Intuitive Workflow Tools as described in the Barco “Display Controller and Intuitive Workflow Tools” user guide on the included documentation CD, or at www.barco. com/support. 5. When the drivers are completely installed, your display will automatically detect the connected video input signal(s) and apply the correct video mode and refresh rate. - Page 14 Installation Image 2–6 2. Put the display face down on a clean and soft horizontal surface. Be careful not to damage the panel screen. 3. Push the VESA mount cover to the right and lift the cover on the right with your finger or a flathead screwdriver.
- Page 15 Installation Image 2–9 6. Unscrew the 4 fixation screws while supporting the stand. Image 2–10 7. Attach the panel firmly to the arm using 4 M4 screws. Respect the following rule to select an appropriate screw length: = T + W + 6.5 mm = T + W + 10 mm Image 2–11 R5911227 /05...
- Page 16 Installation R5911227 /05 Coronis Fusion 4MP / 6MP...
-
Page 17: Daily Operation
Daily operation R5911227 /05 Coronis Fusion 4MP / 6MP... -
Page 18: Recommendations For Daily Operation
LCD displays use technology based on pixels. As a normal tolerance in the manufacturing of the LCD, a limited number of these pixels may remain either dark or permanently lit, without affecting the diagnostic performance of the product. To ensure optimal product quality, Barco applies strict selection criteria for its LCD panels. -
Page 19: Standby Switching
“SoftGlow Task light”, page 23 “SoftGlow Wall light”, page The SoftGlow lights can also be enabled and configured in the Intuitive Workflow Tools. See the Barco “Display Controller and Intuitive Workflow Tools” user guide on the included documentation CD, or at www.barco.com/support. -
Page 20: Osd Menu Access And Use
Daily operation 3.5 OSD menu access and use About the OSD menu The OSD menu allows you to configure different settings to make your Coronis Fusion 4MP / 6MP fit your needs within your working environment. Also, you can retrieve general information about your display and its current configuration settings through the OSD menu. -
Page 21: Advanced Operation
Advanced operation OSD menu language ........................22 OSD menu orientation........................22 OSD menu automatic close function....................22 Power lock function........................22 SoftGlow Task light ........................23 SoftGlow Wall light........................23 DPMS mode..........................24 Hibernate .............................24 Luminance target..........................25 4.10 Color presets..........................25 4.11 Color space..........................26 4.12 Viewing modes ..........................26 4.13 Display functions ..........................27 4.14 sRGB ............................27 4.15 Ambient Light Compensation (ALC) ....................28... -
Page 22: Osd Menu Language
Advanced operation 4.1 OSD menu language About the OSD menu language By default, the OSD menu comes up in English. However, there’s a wide range of other languages available for the OSD menu of your Coronis Fusion 4MP / 6MP. To change the language of the OSD menu: Bring up the OSD main menu. -
Page 23: Softglow Task Light
“SoftGlow light mode switching”, page The SoftGlow lights can also be enabled and configured in the Intuitive Workflow Tools. See the Barco “Display Controller and Intuitive Workflow Tools” user guide on the included documentation CD, or at www.barco.com/support. To adjust the SoftGlow Task light brightness Bring up the OSD main menu. -
Page 24: Dpms Mode
Advanced operation The SoftGlow lights can also be enabled and configured in the Intuitive Workflow Tools. See the Barco “Display Controller and Intuitive Workflow Tools” user guide on the included documentation CD, or at www.barco.com/support. To adjust the SoftGlow Wall light brightness Bring up the OSD main menu. -
Page 25: Luminance Target
Advanced operation Navigate to the Configuration > Power Management menu. Enter the Hibernate submenu. Select Enabled/Disabled as desired and confirm. To adjust the hibernate time-out Bring up the OSD main menu. Navigate to the Configuration > Power Management menu. Enter the Hibernate Timeout submenu. Set the time-out value as desired and confirm. -
Page 26: Color Coordinates
Advanced operation Color temperature can only be changed when the Color preset is set to User. To change the color temperature: 1. Bring up the OSD main menu. 2. Navigate to the Configuration > Calibration > Color Settings > Color Presets menu. 3. -
Page 27: Display Functions
DICOM: DICOM (Digital Imaging and Communications in Medicine) is an international standard that was developed to improve the quality and communication of digital images in radiology. In short, the DICOM display function results in more visible grayscales in the images. Barco recommends selecting the DICOM display function for most medical viewing applications. -
Page 28: Ambient Light Compensation (Alc)
Advanced operation • Color space: sRGB. See “Color space”, page 26 for more info. • Display function: sRGB. See “Display functions”, page 27 for more info. To enable sRGB: Bring up the OSD main menu. Navigate to the Configuration > Calibration menu. Select sRGB and confirm. -
Page 29: Continuous Ambient Light Compensation (Alc)
Embedded QA is not a replacement for the Barco QAWeb solution. Although Embedded QA is a reliable option to perform a simple calibration or compliance test, Barco still highly recommends QAWeb as the solution of choice for calibration and QA. QAWeb brings many benefits... -
Page 30: Dicom Compliance Check
Advanced operation • Maximum error: Shows the maximum error of the current DICOM curve. This is the deviation compared to a perfect DICOM. • Error threshold: Shows the error threshold. This is the maximum error allowed before a DICOM calibration is required. •... -
Page 31: Reset Dicom Calibration
Advanced operation Note: After calibration, the compliance check will start automatically. 4.18.5 Reset DICOM calibration About reset DICOM calibration It is possible to restore the original (factory default) DICOM curve. To reset the DICOM calibration: Bring up the OSD main menu. Navigate to the Configuration >... -
Page 32: Grayscale Conversion Modes
Advanced operation To automatically select image sources: Bring up the OSD main menu. Navigate to the Configuration > Image Sources menu. Enter the Image Source Selection submenu. Select the Automatic image source selection mode and confirm. To manually select image sources: Bring up the OSD main menu. -
Page 33: Edid Timings
Advanced operation To select the DisplayPort standard version Bring up the OSD main menu. Navigate to the Configuration > Image Sources > Input Settings > DisplayPort 1/2 menu. Enter the Input Interface Standard Version submenu. Select one of the available versions and confirm. To obtain full resolution and full refresh rate, DP V1.2 should be selected and two DisplayPort video input cables must be connected to the display. -
Page 34: Steadycolor
4.26 SteadyColor™ About SteadyColor Barco’s SteadyColor technology was created to achieve consistency and perceptual linearity in the display of color images. With multiple internal sensors, the display parameters are constantly monitored and adjusted to ensure that the perceptual difference between colors is proportional with their Digital Driving Level (DDL) difference. -
Page 35: Cleaning Your Display
Cleaning your display R5911227 /05 Coronis Fusion 4MP / 6MP... -
Page 36: Cleaning Instructions
Cleaning your display 5.1 Cleaning instructions To clean the display Apply a cleaning/disinfecting product to a soft lint-free cloth, such as a microfiber or gauze and rub the display surface thoroughly. In order to be effective, all surfaces must be cleaned for a certain amount of time (ranging from 30 seconds to 2 minutes). -
Page 37: Repackaging Instructions
Repackaging instructions R5911227 /05 Coronis Fusion 4MP / 6MP... -
Page 38: Repackaging Instructions
Repackaging instructions 6.1 Repackaging instructions To repack your display 1. Put the display in the lowest position and lock the stand locking mechanism. Image 6–1 2. Place the display in the bottom buffer on a stable surface. Caution: It takes 2 persons to safely execute this action. Image 6–2 3. - Page 39 Repackaging instructions Image 6–3 4. Position the front buffer. Image 6–4 5. Slide the accessory box(es) and all cables in the dedicated cavities. R5911227 /05 Coronis Fusion 4MP / 6MP...
- Page 40 Repackaging instructions Image 6–5 6. Slide the display and the accessories in the box. Image 6–6 7. Close and seal the box. R5911227 /05 Coronis Fusion 4MP / 6MP...
- Page 41 Repackaging instructions Image 6–7 R5911227 /05 Coronis Fusion 4MP / 6MP...
- Page 42 Repackaging instructions R5911227 /05 Coronis Fusion 4MP / 6MP...
-
Page 43: Important Information
Important information R5911227 /05 Coronis Fusion 4MP / 6MP... -
Page 44: Safety Information
Important information 7.1 Safety information General recommendations Read the safety and operating instructions before operating the device. Retain safety and operating instructions for future reference. Adhere to all warnings on the device and in the operating instructions manual. Follow all instructions for operation and use. Electrical Shock or Fire Hazard To prevent electric shock or fire hazard, do not remove cover. -
Page 45: Cybersecurity
Important information • Use a power cord that matches the voltage of the power outlet, which has been approved and complies with the safety standard of your particular country. • Korea: Use KC certified products; Plug: 250 V~, 16 A; Power cord: 60227 IEC 53, 3G0.75 mm² / 60227 IEC 53, 3G1.0 mm²;... - Page 46 Electronic Products ” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.
-
Page 47: Regulatory Compliance Information
Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products” of Chinese Mainland. - Page 48 The manufacturing country of the product is indicated on the product label (“Made in …”). Importers contact information To find your local importer, contact one of Barco’s regional offices via the contact information provided on our website (www.barco.com). FCC class B This device complies with Part 15 of the FCC Rules.
-
Page 49: Emc Notice
Important information 7.5 EMC notice General information This device is for use in professional healthcare facility environments only. With the installation of the device, use only the delivered external cables and power supply or a spare part provided by the legal manufacturer. Using another can result in a decrease of the immunity level of the device. WARNING: Use of this equipment adjacent to or stacked with other equipment should be avoided because it could result in improper operation. - Page 50 Important information Electromagnetic Immunity test IEC 60601-1-2 test levels Compliance level environment – guidance Electrostatic discharge ± 8 kV contact ± 8 kV contact Floors should be wood, (ESD) concrete or ceramic tile. If ± 2 kV, ± 4 kV, ± 8 kV, ± 15 ±...
-
Page 51: Explanation Of Symbols
Important information Test Immunity Maximum Distance frequency Band (MHz) test level (V/ Service Modulation power (W) (MHz) 704 – 787 LTE Band Pulse 13, 17 modulation 217 Hz 800 – 960 GSM 800/ Pulse 900, TETRA modulation 800, iDEN 18 Hz 820, CDMA 850, LTE Band 5... - Page 52 Important information Indicates the device is approved according to the UL regulations for Canada and US E352529 Indicates the device is approved according to the UL Demko regulations. Indicates the device is approved according to the CCC regulations. Indicates the device is approved according to the VCCI regulations. Indicates the device is approved according to the KC regulations.
- Page 53 Important information Indicates the legal manufacturer. Indicates the manufacturing date. Indicates the entity importing the medical device into the locale. Indicates the temperature limitations for the device to safely operate within specs. Indicates that the device is a Medical Device. Indicates the device Serial Number.
- Page 54 Important information Indicates Alternating Current (AC). Stand-by Equipotentiality Protective earth (ground) Symbols on the box On the box of the device, you may find the following symbols (nonrestrictive list): Indicates a device that can be broken or damaged if not handled carefully when being stored.
-
Page 55: Legal Disclaimer
Barco software products are the property of Barco. They are distributed under copyright by Barco NV or Barco Inc., for use only under the specific terms of a software license agreement between Barco NV or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized. -
Page 56: Technical Specifications
Barco whatsoever. You further acknowledge that any such additions, changes or modifications may impair the ability of Barco – at Barco’s sole discretion - to continue to provide service, warranties, software updates, fixes, maintenance, access or such similar abilities, without any recourse or claim towards Barco whatsoever. - Page 57 MDCC-4430 NC: 16.3 kg Net weight w/o stand MDCC-4430: 13.1 kg MDCC-4430 NC: 11.7 kg Net weight packaged MDCC-4430: 22.3 kg (without optional accessories) MDCC-4430 NC: 20.9 kg (without optional accessories) Tilt -5° to +25° Swivel -30° to +30° Pivot...
- Page 58 Important information CAN/CSA C22.2 No. 60601-1:2014 EMI specific: IEC 60601-1-2:2014 (ed.4) EN 60601-1-2:2015 (ed.4) FCC part 15 Class B ICES-001 Level B VCCI (Japan) Environmental: China Energy Label EU RoHS China RoHS REACH Canada Health WEEE Packaging Directive Supplied accessories User guide Documentation disc System sheet...
- Page 59 Uniformity Technology Color PPU SteadyColor Calibration Yes, when used as system with MXRT-x600 display controller or later, using Barco MXRT driver 10.171.1.0 or later and with QAWeb Enterprise 2.2 or later. Ambient light presets Yes, reading room selection Ambient light sensor...
- Page 60 Important information Height adjustment range 100 mm Mounting standard VESA (100 mm) Screen protection MDCC-6530: Protective, anti-reflective glass cover MDCC-6530 NC: No cover Recommended modalities All digital images, except digital mammography Certifications FDA 510(k) K191845 for General Radiology CE1639 (Medical Device) CCC (China) KC (Korea) BIS (India)
- Page 61 Important information Storage humidity 20% to 85% (non-condensing) Operating pressure 70 kPa minimum Storage pressure 50 to 106 kPa R5911227 /05 Coronis Fusion 4MP / 6MP...
- Page 62 Important information R5911227 /05 Coronis Fusion 4MP / 6MP...
- Page 64 Barco NV President Kennedypark 35 8500 Kortrijk Belgium R5911227 /05 | 2022-01-12 www.barco.com...
