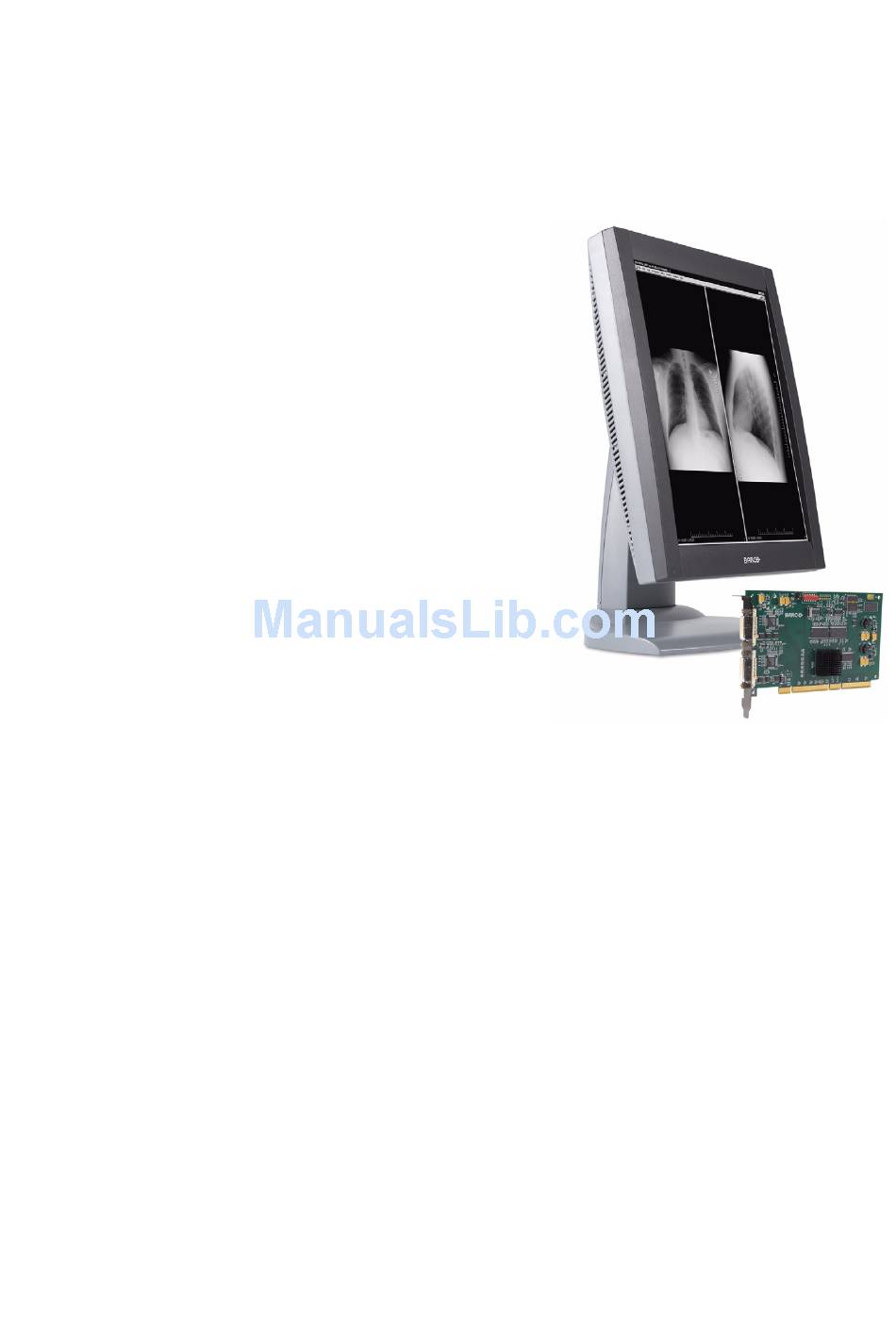

- Page 1 Nio systems Installation & User Manual Supported displays: E-2620, E-2620 S, E-2621, E-3620, E-3621, E-5620, MDNG-5121...
- Page 2 (This page intentionally left blank.) (This page intentionally left blank.) Nio systems...
- Page 3 - graphical, electronic, or mechanical including photocopying, taping or information storage and retrieval systems - without written permission of Barco © 2007 Barco N.V. All rights reserved. Nio systems...
- Page 4 (This page intentionally left blank.) Nio systems...
-
Page 5: Table Of Contents
Software installation ................. 44 Installing the B display controller drivers and software.. ARCO NioWatch.................... 49 Settings for optimal display performance throughout the product lifetime ................50 Avoiding image retention............50 Operation .................. 53 BarcoMed control panel operation ........... 55 Nio systems... - Page 6 Table of Contents Accessing the Barco tab ............. 55 Advanced Properties ..............57 Device details ................60 NioWatch operation................61 Display settings ................62 Test patterns ................69 Application settings..............70 Update NioWatch................ 72 Display operation ................73 Display operation ............... 73 Cleaning ..................
-
Page 7: Preface
Preface Nio systems... - Page 8 Preface (This page intentionally left blank.) (This page intentionally left blank.) Nio systems...
- Page 9 BarcoView software products are the property of BarcoView. They are distributed under copyright by Barco N.V. or BarcoView, LLC., for use only under the specific terms of a software license agreement between Barco N.V.
- Page 10 Preface Disposal Information The lamps inside the display contain mercury. Do not throw the display in the trash. Dispose of it as required by local ordinances or regulations. Nio systems...
-
Page 11: Safety Instructions
VDC power supply that is supplied with the display. • The 12 VDC power supply must be powered by the AC mains voltage. • Power cords: Power cord with CEE 7 plug: The colors of the mains lead are colored in accordance with the following Nio systems... - Page 12 3 displays. If you use an unstable cart or stand, the display may fall, causing serious injury to a child or adult, and serious damage to the equipment. More warnings in the Installation chapter. Nio systems...
- Page 13 CE (LVD 73/23/EEC), IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1 (c-UL), EN 60950-1 DEMKO, CCC GB4943-1995 National Scandinavian Deviations for Cl. 1.7.2 : Finland: "Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan" Norway: "Apparatet må tilkoples jordet stikkontakt" Sweden: "Apparaten skall anslutas till jordat uttag" Nio systems...
-
Page 14: Explanation Of Symbols
Indicates the display is approved according to the CCC regulations Indicates the USB connectors on the display Indicates this apparatus must not be thrown in the trash but must be recycled, according to the European WEEE (Waste Electrical and Electronic Equipment) directive Nio systems... - Page 15 Explanation of symbols Symbols used throughout the manual: Warning Caution Important notice or Note remark Hint, tip Additional information Nio systems...
- Page 16 Explanation of symbols (This page intentionally left blank.) Nio systems...
-
Page 17: Overview
Overview Nio systems... - Page 18 Overview (This page intentionally left blank.) (This page intentionally left blank.) Nio systems...
-
Page 19: Introduction
Introduction Introduction Thank you for choosing Barco. Single display or complete system? This manual describes installation and usage of a complete N system. system is a bundling of one or more displays and one or more display controllers. However, if you have purchased the display only instead of a N... - Page 20 The versatile tilt & swivel foot allows to use the display for viewing portrait or landscape image resolutions. The user can easily change the panel height and viewing angle, allowing to use the display in the optimal viewing conditions. Nio systems...
-
Page 21: Barcomed Nio Display Controller Overview
1. May be installed in a 32-bit/33Mhz PCI slot but with reduced performance. 2. May be installed in a PCIe x16 slot, however not all PC Bios’s support x8 cards in the x16 slot. Check with your PC manufacturer. Nio systems... - Page 22 Because of the low power consumption and low heat generation of the BarcoMed N display controller, multiple controllers may be installed in adjacent PCI/PCIe slots or adjacent to other PCI/PCIe boards. Additionally there should be no need to modify either the PC’s power supply and/or cooling system. Nio systems...
-
Page 23: Package Contents
• Two velcro strips to bind the cables • European power cord • American power cord • Chinese power cord • This manual • Quick install card If some of the items are missing, please contact the reseller from whom you have purchased the unit. Nio systems... -
Page 24: Parts, Controls And Connectors
Control wheel The control wheel can be pressed like a push button and rotated like a knob. It allows to put the display in stand-by, navigate through the on- screen display (OSD) menus and change values in the OSD. Nio systems... - Page 25 USB devices to the display’s USB downstream port. USB downstream port When the display is connected to the PC USB bus, you can connect USB devices, such as keyboard, mouse, digital camera, to this connector. DC power input Nio systems...
- Page 26 The display is shipped with this clip in the foot to protect the tilt & swivel mechanism during transport. After unpacking, you should remove this clip. Do not throw the clip away! Should the display have to be packed and shipped later, the clip must be applied to the foot again. Nio systems...
-
Page 27: Installation
Installation Nio systems... - Page 28 Installation (This page intentionally left blank.) (This page intentionally left blank.) Nio systems...
-
Page 29: Installation Precautions
• Keep the display away from heat sources and provide enough ventilation around the display. • Do not use the display in direct sunlight. • Do not scratch or apply pressure to the LCD panel. This may damage the panel permanently. Nio systems... -
Page 30: Display Controller Installation
VGA capabilities. If you are, check the setting of the Jumper at J-1 on the display controller (see figure 4). By default, VGA should be enabled, on the top two pins. Nio systems... - Page 31 64-bit or 32-bit PCI slot. However, installing it in a 32-bit PCI slot will result in a decrease in performance. Figure 5 illustrates the types of slots so that you can correctly identify which one to use for the BarcoMed N Nio systems...
- Page 32 Secure the card to the chassis with the PC’s I/O panel mounting screw, and replace the chassis cover. Connect the primary display to the connector marked “VID 1” on the BarcoMed N display controller using the provided DVI cable Nio systems...
-
Page 33: Barcomed Pci Express ® Controllers
Figure 6 BarcoMed PCI Express Controllers ® During the first quarter of 2006 Barco Medical Imaging Systems added PCI Express (PCIe) versions of its display controllers to its grayscale Medical Imaging Display Systems product line. The PCIe versions of Nio systems... - Page 34 PCIe x8 slot. Depending on your PC manufacturer’s implementation of the logic for the PCIe x16 slot optimum performance may also be obtained by installing the Barco PCIe boards in the PCIe x16 slot. Connecting your Barco displays to your BarcoMed PCIe board is identical to connecting them to a BarcoMed PCI board (please refer to your system manual for details).
-
Page 35: Display Installation
Figure 8 To remove the clip: Position the display with its rear side facing you. Pull the red clip out of the fixation holes in the foot. Keep the clip in case the display needs to be shipped later. Nio systems... - Page 36 Stand at the front side of the panel and take the panel at both sides. Very important: Tilt the panel before changing the orientation. Should you change the panel orientation without tilting it first, you might irreversibly damage the tilt & swivel mechanism. Nio systems...
- Page 37 Figure 12: To rotate the panel from portrait to landscape To change from landscape to portrait, turn clockwise. Notice: If, after installing the display or the system, you change the panel orientation while an image is on the screen, the result depends on your application: Nio systems...
-
Page 38: Power Connection
Windows Display control panel (if possible). Power connection To connect the power: Figure 13 Figure 14 To get access to the connectors, remove the connector compartment cover by pulling down the 2 clips at the top of the cover. Nio systems... -
Page 39: Video Connection
Vid 1 (Head A). Connecting DVI cables: Two displays: Connect the left display (when looking at the front side) to display controller output Vid 1 (Head A) as described above. Connect the second display to output Vid 2 (Head B). Nio systems... -
Page 40: Usb Connection
• Put the connector compartment cover back on the display. Pay attention that the signal cables are positioned under the bulge in the cover. • Push the cables into the clips on the rear of the tilt & swivel foot. Nio systems... - Page 41 Slide the cover upward while moving the lower side of the cover towards the foot. Press the cover to the foot so that it makes a clicking sound. Nio systems...
-
Page 42: Attaching The Display To An Arm Stand
Remove the small screw (A) fixing the small plastic cover on top of the foot. Next, remove the small cover itself. Figure 18: Display with tilt & swivel foot cover removed Unscrew the 2 screws fixing the round plastic cover (B). Lift up the round plastic cover. Nio systems... - Page 43 Attaching the display to an arm stand Remove the four screws fixing the foot while supporting the foot. Attach the arm stand firmly to the panel using 4 screws M4 x 8 4 screws M4 x 8mm Figure 19 Nio systems...
-
Page 44: Software Installation
PC. Note: Both displays connected to a single display controller must have the same physical orientation and resolution in order to be attached to the Windows desktop. Run the Barco Product Installation Wizard. Nio systems... - Page 45 Software installation The Barco Product Installation Wizard should start automatically when you insert the Barco System CD-ROM into your CD drive after the operating system has started. If your CD drive’s auto-run is not enabled or the Barco Product Installation Wizard does not start...
- Page 46 Software should automatically detect your Barco displays and attach them to the desktop with the correct resolution. If the Barco Monitor Plug and Play Software fails to detect your Barco displays or fails to attach them to the desktop correctly please refer to the section, Setting the resolution of your Nio display on page 91 in the Troubleshooting section of this manual.
- Page 47 Software installation Reinstalling drivers You can install new drivers or reinstall existing drivers at any time by using the Barco Set-up wizard on your Barco system CD-ROM, see display controller drivers and software on Installing the B ARCO page 44 of this manual.
- Page 48 Example (where D is the name of your CD/DVD drive): D:\Setup.exe -silent See figure 21 for an example of how the command line window should look when using the silent install from the B ARCO EDICAL CD-ROM. MAGING ISPLAY YSTEM Figure 21 Nio systems...
-
Page 49: Niowatch
In case you will be using the Barco LCD sensor with your system, you may have to install its driver. The Barco LCD sensor is a USB device. Connect the sensor to a free USB downstream connector. When you connect the sensor for the first time, the “New hardware found”... -
Page 50: Settings For Optimal Display Performance Throughout The Product Lifetime
Whereas the content in these windows can change continuously, the borders are static images and may cause boundary image retention. The layout of the windows (size, number of windows, etc.) should be changed as much as possible. Nio systems... - Page 51 Select a screen saver from the Screen saver drop-down box. Set the Wait time to 10 minutes. Click the button Power... The Power Options Properties dialog opens. In the Turn off monitor drop-down box, select After 20 mins. Click Apply. Close the control panel. Nio systems...
- Page 52 Settings for optimal display performance throughout the product lifetime (This page intentionally left blank.) Nio systems...
-
Page 53: Operation
Operation Nio systems... - Page 54 Operation (This page intentionally left blank.) (This page intentionally left blank.) Nio systems...
-
Page 55: Barcomed Control Panel Operation
Select the “Barco” tab from the Properties screen. Using the Barco tab The Barco tab is divided into three sections. The first section provides information about the graphics controller and allows access to the graphics controller advanced configuration pages. The second section provides information about the display. - Page 56 The Barco System Report, also known as BarcoMed SelfExam, is a wizard based tool which collects data about the components that are installed in your system. This information is used by the Barco MID Support team when trying to resolve customer issues.
-
Page 57: Advanced Properties
• the BarcoMed Driver Tab, • the BarcoMed Hardware Tab, and • the BarcoMed Display Tab. Barco Drawing Modes The Barco Drawing Modes page of the Advanced Properties page is divided into four sections: Palette Mode, Drawing Modes, Monitor Configuration, Graphics Board. Palette Mode In the Palette Mode section you can choose one of the four following Palette Modes. - Page 58 Drawing Modes. If any of the options in this section are grayed out, then they are not available for the model controller with which you are working. Enable DirectDraw This option allows the user to enable or disable DirectDraw. DirectDraw is a software interface that provides direct access to display devices Nio systems...
- Page 59 8-bit pixels. While this option may be used with applications that normally require 10-bit support, there will be a loss of pixel depth, i.e. 256 shades of gray instead of 1024 simultaneous shades of gray. Nio systems...
-
Page 60: Device Details
The user will be prompted to select a firmware update file to use for the update process. This file will be provided by Barco Medical Imaging if and when a firmware update is required. -
Page 61: Niowatch Operation
Note: After installation, a shortcut “NioWatch Client” is installed in the Nio- Watch installation directory. You can copy this shortcut to another location (e.g., desktop) if desired. After double-clicking this shortcut, the NioWatch console appears, allowing you to execute the NioWatch functions. Figure 24: NioWatch console Nio systems... -
Page 62: Display Settings
Display drop-down box. Tip: If you click on a numbered icon, the corresponding number appears for a few seconds on the display connected to that display controller Nio systems... - Page 63 This function is not available for MFCD/MFGD 1218 displays. The luminance setting is saved when the system is shut down. If the slider is positioned above the CAL mark, the luminance is in calibrated position, as determined during the latest calibration. If Nio systems...
- Page 64 DICOM display function and calibrate the display. After calibration, the luminance must remain in calibrated position to maintain DICOM compliance. Graphic Board tab Figure 26: Graphic Board tab Here you can see information about the installed display controller: Name, serial number, driver version and firmware version. Nio systems...
- Page 65 The possible options are explained below. To calibrate the display using the Barco LCD sensor: If you have multiple displays of the same type connected (multi- head system), consider if you wish to equalize the display you calibrate to a reference display.
- Page 66 Click the Calibrate button. A message appears, showing the different calibration options. Figure 28: Calibration choices Select “Using the BARCO LCD sensor” and click OK. This option is grayed in case NioWatch does not find a connected Barco LCD sensor.
- Page 67 Next. The display number that appears in this option, refers to the reference display. Manual calibration Follow step 2 and 3 of the calibration with Barco LCD sensor (see page 65). In the Calibration dialog (see step no. 4. in the description of the calibration with sensor), check the option Visually and click the OK button.
- Page 68 Click OK to finish. To reset to the latest calibration: Follow step 2 and 3 of the calibration with Barco LCD sensor (see page 65). In the Calibration dialog (see step no. 4. in the description of the calibration with sensor), check the option Use the latest calibration.
-
Page 69: Test Patterns
Test pattern drop-down box. Click Show to display the pattern. If you have selected Custom Image, you can select a bitmap image (e.g., saved on the hard disk) as test pattern. Nio systems... -
Page 70: Application Settings
The first calibrated display in the system is the reference display. BAR CO BAR CO (1) Reference display (2) Calibrated display: Luminance automatically matched to reference display Figure 33: Dual-head equalization The Equalization option will be available only if: Nio systems... - Page 71 As a result, the MediCal Administrator connection wizard starts. Please follow the guidelines from the wizard. The MediCal Administrator software is a hospital-based softcopy image quality management system that keeps the consistency data of every connected display system in a central database. Via the user-friendly Nio systems...
-
Page 72: Update Niowatch
In the Windows Start menu, the Update NioWatch application is installed during installation of NioWatch. To update NioWatch: Select Update NioWatch from the Start > Programs > Barco NioWatch menu. The application will search via the Internet if NioWatch updates are available. -
Page 73: Display Operation
The LED turns orange. BAR CO Push and hold Figure 35 When the display is in stand-by, press the control wheel to switch it back on. Nio systems... - Page 74 To enter into a menu: First, rotate the control wheel to select the desired menu. Next, press the wheel shortly. E-2620 MAIN MENU Luminance Settings SETTINGS Information DPMS EXIT Power LED User controls EXIT Rotate the control wheel Press the control wheel Figure 37: OSD menu navigation Nio systems...
- Page 75 Rotate the control wheel to display the on-screen display. The Main Menu appears. Rotate the control wheel to select Settings. Press the control wheel to enter the Settings menu. SETTINGS DPMS Power LED User Controls EXIT Figure 38: Settings menu Nio systems...
- Page 76 Press the control wheel to enter the Settings menu. SETTINGS DPMS Power LED User Controls EXIT Figure 39: Settings menu Rotate the control wheel to select User Controls. Press the control wheel to switch from “Off” to “On”. Exit the menus. Nio systems...
- Page 77 Read information about the display Luminance Name Description Luminance Target Manually adjust the luminance. The luminance is indicated in %. Luminance adjusts the overall luminance (light output) of the display. It does not affect the grayscales of the image on the screen. Nio systems...
- Page 78 Displays the current internal software version Display Lifetime Indicates the total time the display has been operating, including the time in stand-by Backlight Lifetime Indicates the total time the display has been operating, excluding the time in stand-by Nio systems...
-
Page 79: Cleaning
Cleaning Nio systems... - Page 80 Cleaning (This page intentionally left blank.) (This page intentionally left blank.) Nio systems...
-
Page 81: Precautions
- Detergents with fluoride - Detergents with ammonia - Detergents with abrasives - Steel wool - Sponge with abrasives - Cloth with thread made of steel - Other coarse tools *(Lye is a strong caustic alkaline solution of potassium salts.) Nio systems... -
Page 82: Front Filter (Protective Screen)
Cleaning instructions • Clean the screen using a soft cotton cloth, lightly moistened with a watery solution or a mild commercial glass-cleaning product suited for coated glass surfaces. • Wipe dry with a dry cloth. Nio systems... -
Page 83: Front Glass
• Alcohol/solvents at higher concentration > 5% • Strong alkalis lye, strong solvents • Acid • Detergents with fluoride • Detergents with ammonia • Detergents with abrasives • Steel wool • Sponge with abrasives • Steel blades • Cloth with steel thread Nio systems... -
Page 84: Lcd Panel
Isopropyl Alcohol (IPA) and 75% de-ionized or distilled water. E.g.: Cleareen, a product of Certified Laboratories. In case you do not dispose of these products, use plain water instead. • Take another clean, dry, soft, lint-free cloth and gently wipe the glass dry. Nio systems... -
Page 85: Cabinet
• Repeat with water only. • Wipe dry with a dry cloth. • The cabinet has been tested for resistance to the following products: Cidex, Betadine, Alcohol (Isopropyl and Ethyl), Ammonia-based cleaners (Windex) and Aquasonic Gel. Nio systems... - Page 86 Cabinet (This page intentionally left blank.) Nio systems...
-
Page 87: Troubleshooting
Troubleshooting Nio systems... - Page 88 Troubleshooting (This page intentionally left blank.) (This page intentionally left blank.) Nio systems...
-
Page 89: General Tips
• If one display from a multi-head system exhibits problems, try to eliminate the problem by switching video cables or power supplies. In that way you can find out if the problem resides in the display or not. Nio systems... - Page 90 Palette Settings. The PC does not start up • Check the CMOS settings in the PC BIOS • The display controller may not be firmly seated in the PCI / AGP connector Nio systems...
- Page 91 Setting the resolution of your Nio display In order to set the resolution of your Nio you must be Note: logged in using an account with administrator privileges. Nio systems...
- Page 92 “Properties”. Click on the “Settings” tab. Select the rectangle that represents the Barco Coronis display whose settings you wish to change. If you are using the VGA capabilities of your BarcoMed N...
- Page 93 This is normal and not a bug. After enablingDualView and setting the resolutions in a Quad- Head Configuration you may need to drag the heads into the proper position in the window on the “Settings” tab, so that the Nio systems...
- Page 94 General tips arrangement in the window on the “Settings” tab matches the physical arrangement of your configuration. Nio systems...
-
Page 95: Technical Information
Technical Information Nio systems... - Page 96 Technical Information (This page intentionally left blank.) (This page intentionally left blank.) Nio systems...
-
Page 97: Technical Specifications
Sync on DVI: Complying to DVI Rev 1.0 specifications Input signals Possible resolutions: • 640 x 480 @ 60, 75, 85, 100 Hz • 1600 x 1200 @ 59, 60 Hz • 1200 x 1600 @ 59 Hz USB standard supported USB 1.1 Nio systems... - Page 98 14 kg Operating Temperature Operation: 0°C to 40°C Within specs: 15°C to 35°C Storage Temperature -20°C to 60°C Humidity 8% - 80% (non-condensing) for opera- tion 5% - 95% (non-condensing) for storage Altitude 7500 m storage 3000 m operation Nio systems...
- Page 99 Controls Push / turn control wheel for stand-by switching and OSD controls Input connectors DVI dual channel Signal systems Video on DVI: Complying to DVI Rev 1.0 specifications Sync on DVI: Complying to DVI Rev 1.0 specifications Nio systems...
- Page 100 14 kg Operating Temperature Operation: 0°C to 40°C Within specs: 15°C to 35°C Storage Temperature -20°C to 60°C Humidity 8% - 80% (non-condensing) for opera- tion 5% - 95% (non-condensing) for storage Altitude 7500 m storage 3000 m operation Nio systems...
- Page 101 Sync on DVI: Complying to DVI Rev 1.0 specifications Input signals Possible resolutions: • 640 x 480 @ 60, 75, 85, 100 Hz • 1600 x 1200 @ 59, 60 Hz • 1200 x 1600 @ 59 Hz USB standard supported USB 1.1 Nio systems...
- Page 102 14 kg Operating Temperature Operation: 0°C to 40°C Within specs: 15°C to 35°C Storage Temperature -20°C to 60°C Humidity 8% - 80% (non-condensing) for opera- tion 5% - 95% (non-condensing) for storage Altitude 7500 m storage 3000 m operation Nio systems...
- Page 103 Power source Input for 12 VDC power supply unit: 90 ~ 264 VAC Input for display: 12 VDC. (The supplied 12VDC power supply must be used) Power consumption 79 watts (max., at 90 VAC, maximum backlight, USB load) Nio systems...
- Page 104 385 x 585 x 250 mm Net weight 13 kg Operating Temperature 0°C to 40°C, 15°C to 35°C within specs Storage Temperature -20°C to 60°C Humidity 8% - 80% (non-condensing) for operation 5% - 95% (non-condensing) for storage Nio systems...
- Page 105 Power source Input for 12 VDC power supply unit: 90 ~ 264 VAC Input for display: 12 VDC. (The supplied 12VDC power supply must be used) Power consumption 77 watts (max., at 90 VAC, maximum backlight, USB load) Nio systems...
- Page 106 385 x 585 x 250 mm Net weight 14 kg Operating Temperature 0°C to 40°C, 15°C to 35°C within specs Storage Temperature -20°C to 60°C Humidity 8% - 80% (non-condensing) for operation 5% - 95% (non-condensing) for storage Nio systems...
- Page 107 Power source Input for 12 VDC power supply unit: 90 ~ 264 VAC Input for display: 12 VDC. (The supplied 12VDC power supply must be used) Power consumption 80 watts (max., at 90 VAC, maximum backlight, USB load) Nio systems...
- Page 108 500 cd/m² (calibrated) Contrast ratio 800/1 (on/off in dark environment) Response time 25 ms typical (@ 25° C after 30 min warm-up) Controls Push / turn control wheel for stand-by switching and OSD controls Input connectors DVI dual channel Nio systems...
- Page 109 408 x 591 x 250 mm Net weight 11.1 kg Operating Temperature 0°C to 40°C, 15°C to 35°C within specs Storage Temperature -20°C to 60°C Humidity 8% - 80% (non-condensing) for opera- tion 5% - 95% (non-condensing) for storage Nio systems...
-
Page 110: Connector Pin Assignments
Figure 40: DVI connector pin layout Pin no. Signal Pin no. Signal TMDS DATA 2- +5V POWER TMDS DATA 2+ HOT PLUG DETECT TMDS DATA 0- TMDS DATA 0+ DDC CLOCK DDC DATA TMDS DATA 1- TMDS DATA 1+ TMDS CLOCK- TMDS CLOCK+ Nio systems... -
Page 111: Glossary
The standard specifies how digital image data can be moved from system to system. In addition, Supplement 28 Part 14 specifies a function that relates pixel values to displayed Luminance levels and is called Grayscale Standard Display Function. Nio systems... - Page 112 Glossary (This page intentionally left blank.) Nio systems...
-
Page 113: Warranty Statement
Warranty Statement Nio systems... - Page 114 Warranty Statement (This page intentionally left blank.) (This page intentionally left blank.) Nio systems...
- Page 115 All parts replaced hereunder and returned to BarcoView (or an authorized service center) shall become the property of BarcoView (or the authorized service center). 1.5 The repaired equipment shall be returned to the Customer, by regular freight, at BarcoView's charge. Nio systems...
- Page 116 BarcoView's performance hereunder: 3.1 Customer shall not expose BarcoView personnel to any unsafe working conditions. 3.2 Repairs to equipment under warranty resulting from improper maintenance or repair performed by the Customer, or its officers, Nio systems...
- Page 117 ARTICLE 7: FORCE MAJEURE Either party shall be released from performance of its obligations under this agreement to the extent, and for so long as, the performance of Nio systems...
- Page 118 8.2 BarcoView shall not be responsible for machine failure and/or its failure to render service or maintenance due to causes beyond its reasonable control. Nio systems...
- Page 119 Warranty Statement Nio systems...
- Page 120 Warranty Statement Nio systems...
- Page 121 Warranty Statement Nio systems...
- Page 122 Warranty Statement Nio systems...
- Page 123 Warranty Statement Nio systems...
- Page 124 Warranty Statement Nio systems...
- Page 125 Warranty Statement Nio systems...
- Page 126 Warranty Statement Nio systems...
- Page 127 Warranty Statement Nio systems...
- Page 128 B4100454-05 March 2007 www.barco.com...
