25.2. Solar Panel
The solar panel must be connected using the cable supplied.
Both the mini USB connector and the solar panel connector allow only one connection position which must be respected
without being forced into the incorrect position. In this way connection polarity is respected.
Solar panels up to 12V are allowed. The maximum charging current through the solar panel is 280mA.

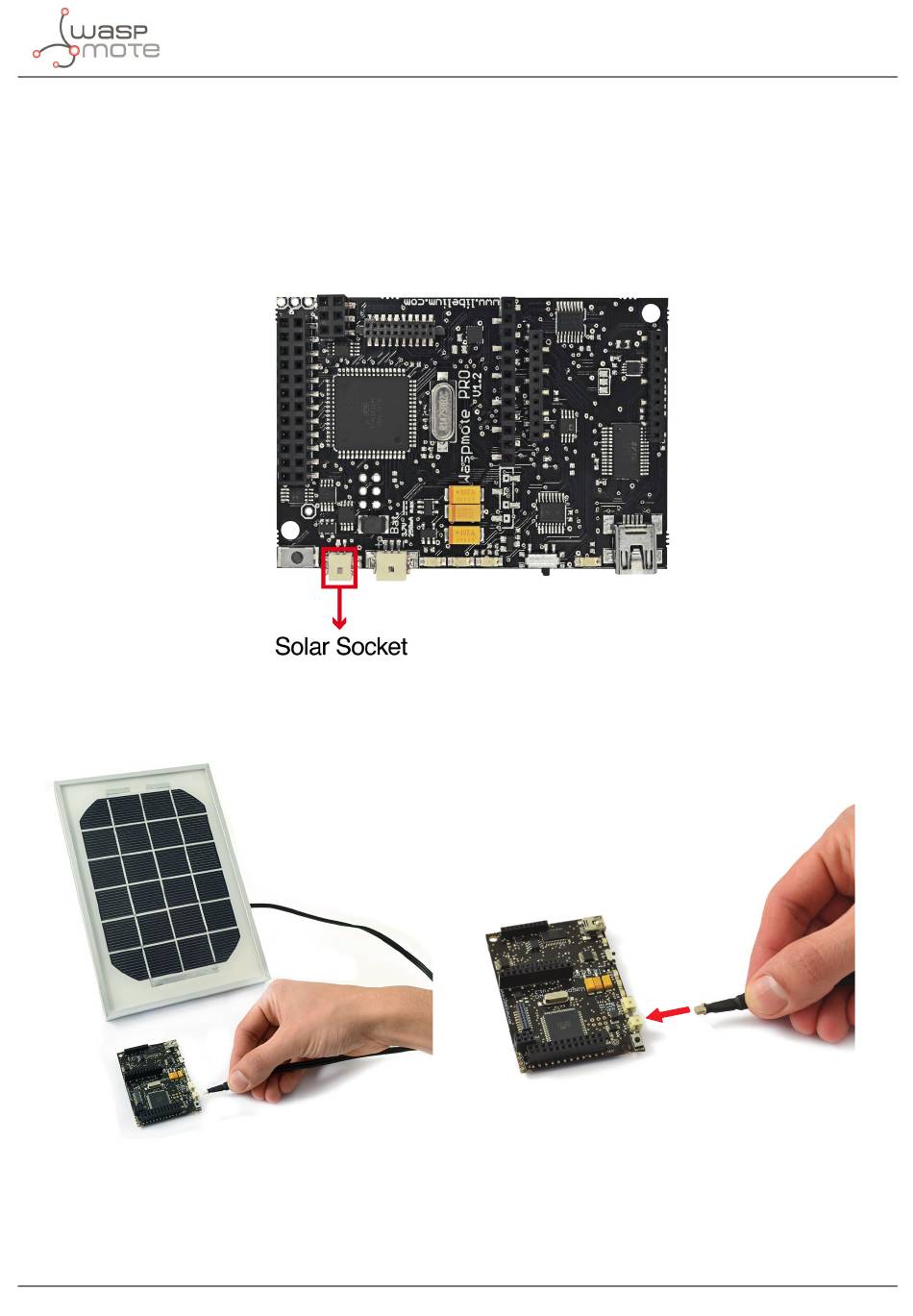

Figure: Solar panel connector
Figure: Solar panel connection
-123-
v6.3
