13. Internal solar panel

Libelium provides two choices for the solar panel, internal and external.
The internal solar panel is embedded in the front of the enclosure, occupying almost all Waspmote front surface.
Internal solar panel features
Max power: 1.3 W
•
Max power voltage: 6,5 V
•
• Max power current: 205 mA
Dimensions: 111 x 91 x 3 mm
•
It is highly recommended to ensure the best conditions for the solar panel:
• 45 degrees of inclination
• Solar panel side faced to the south
Libelium provides special brackets in order to install it correctly.

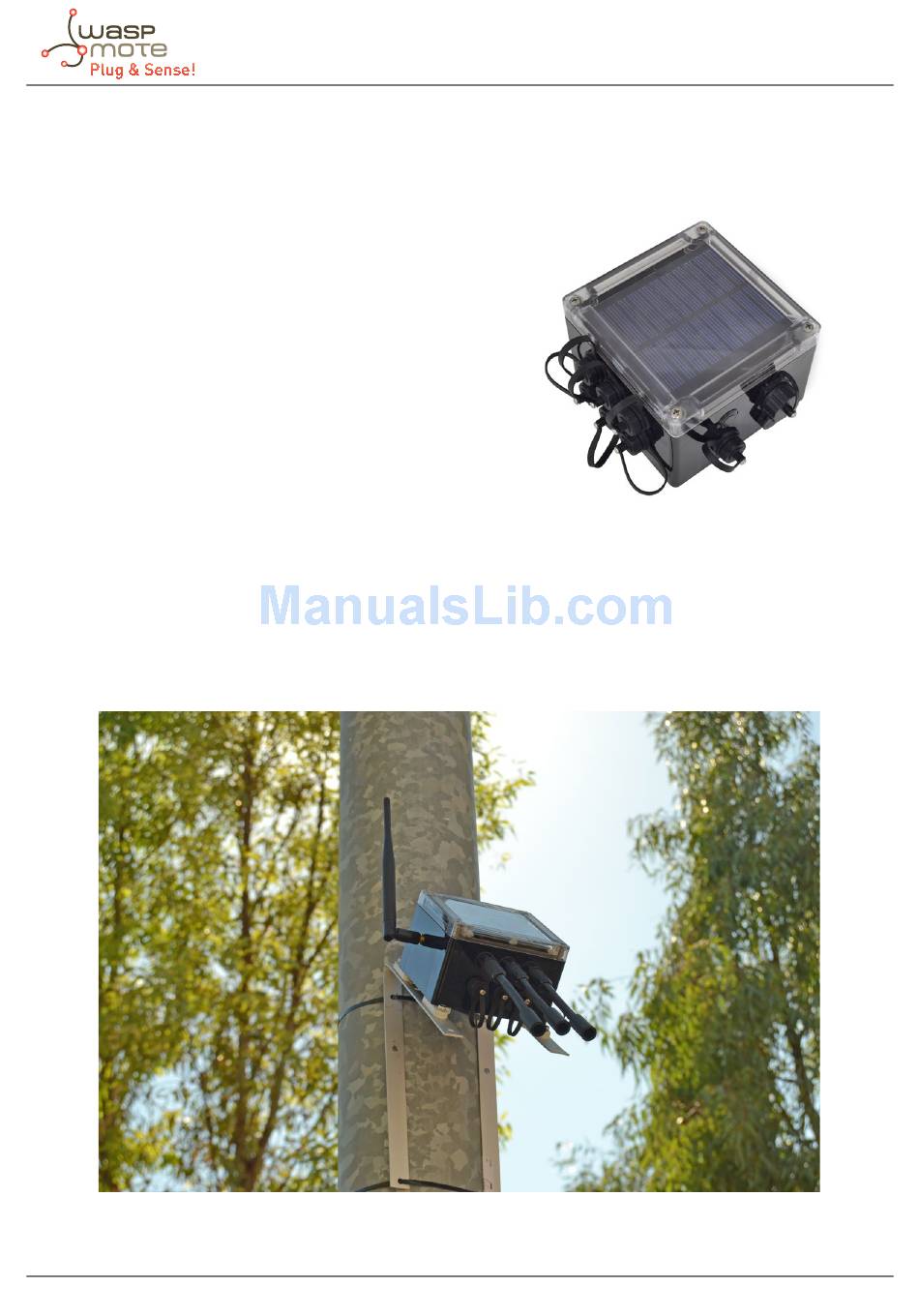

Figure : Typical application with internal solar panel
Figure : Waspmote Plug & Sense! with internal solar panel
