Interacting with Waspmote

27.1.3. Windows receiver

If Windows is used, the application 'Hyperterminal' can be used to capture the output of the serial port.
This application can be found installed by default in 'Start/Programs/Accessories/Communication' , but if it is not available it can
be downloaded from: http://hyperterminal-private-edition-htpe.en.softonic.com/
Once this application is launched the connection must be configured. The first step is to give it a name:

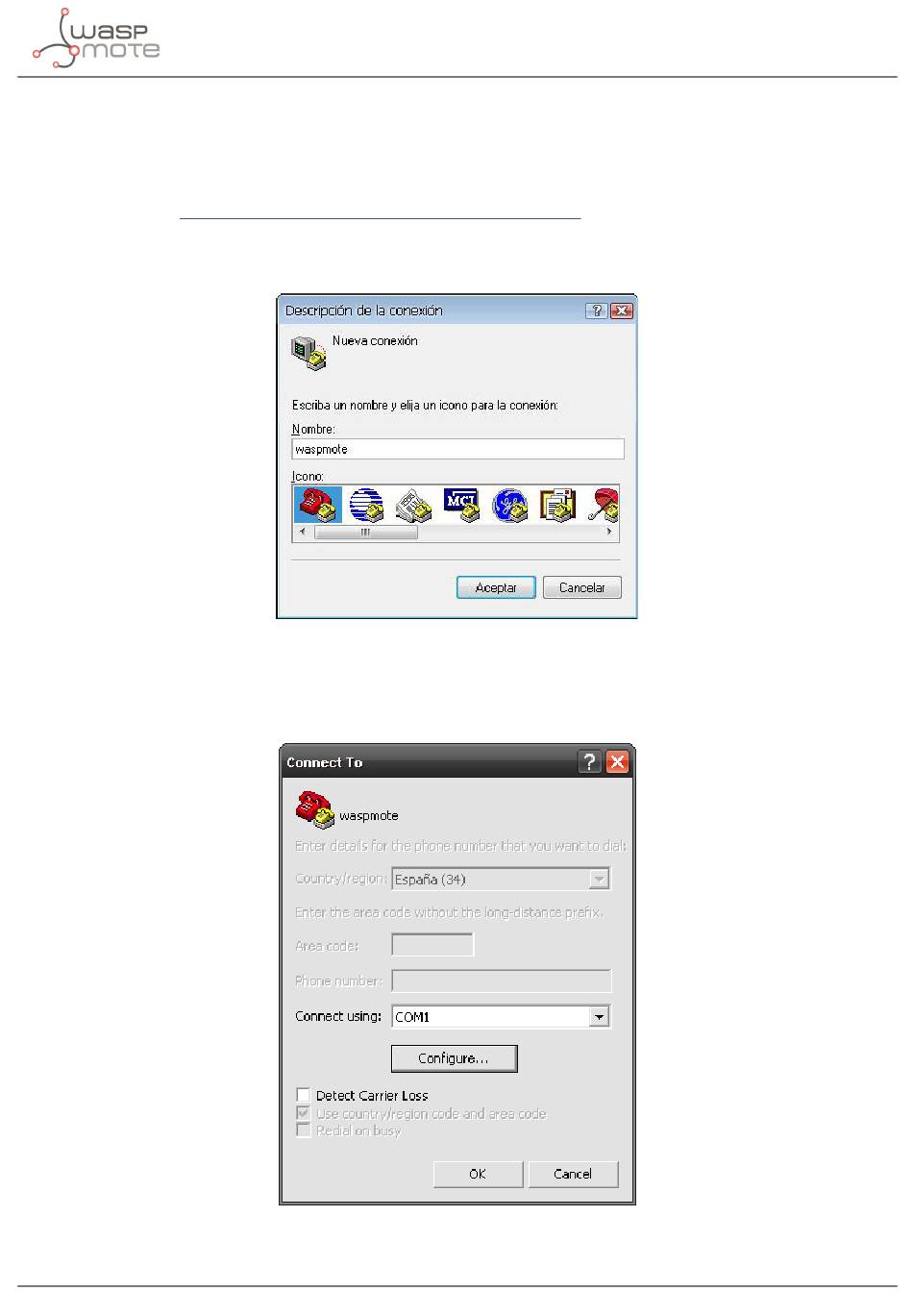

Figure: Step 1 of establishing connection
The next step is to specify the port on which Waspmote has been connected, in this case the system recognizes it as 'COM9' , (this
will vary on each computer):
Figure: Step 2 of establishing connection
-140- v6.3
