Local Data Base
Meshlium has a MySQL data base up and running which is used to store locally the information captured. In the "Local Data
Base" tab you can see the connection parameters.
Database:
•
Table:
• sensorParser
• IP:
• Port: 3306
User:
• root
Password:
•
You can change the password, see the "Users Manager" section.
(*) Depending on the parameters set in the "Interfaces" section.

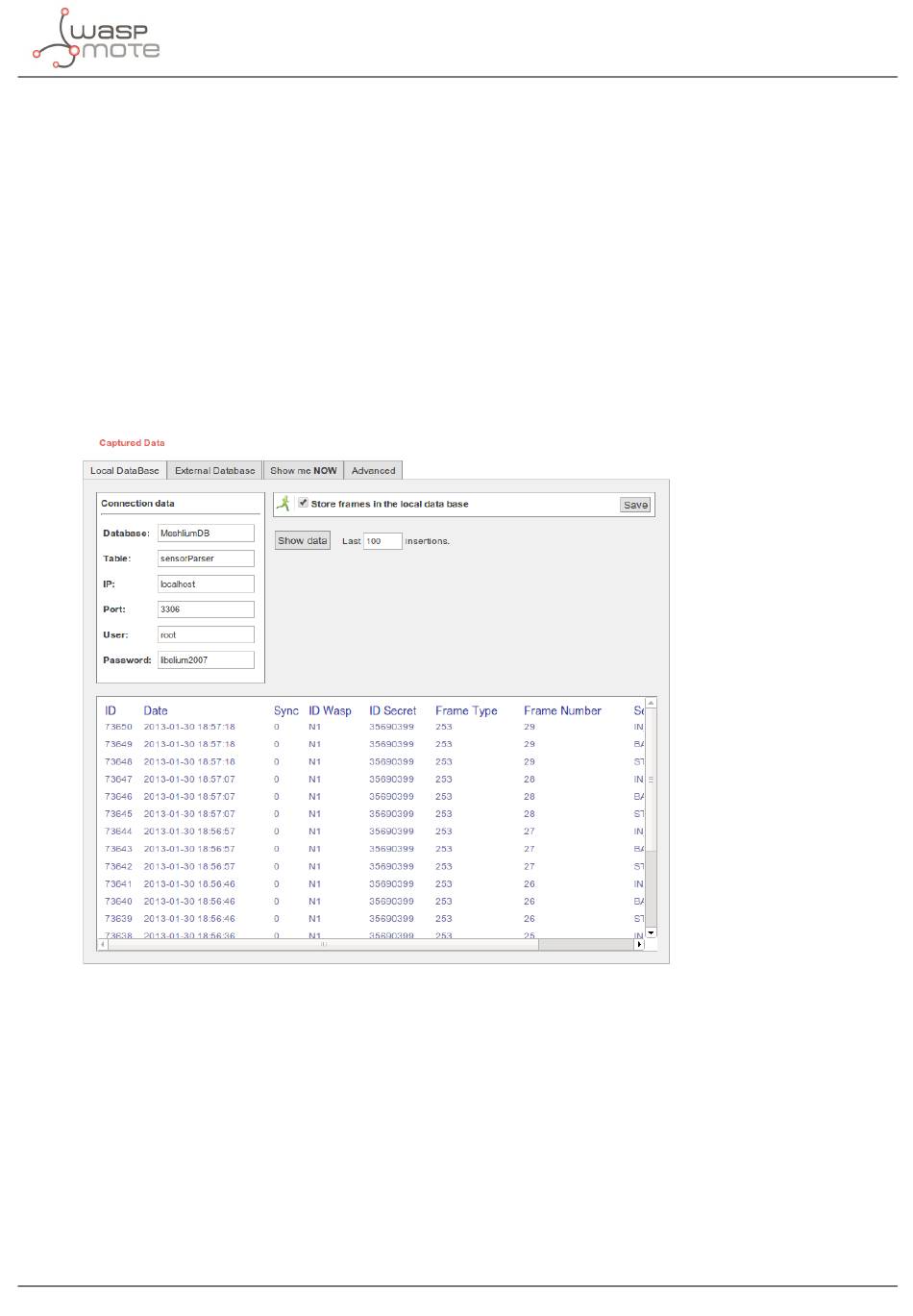

Figure: Local Data Base tab
Steps:
1. Set the check box "Store frames in the local data base" and press the "Save" button.
From this time Meshlium will automatically perform Scans and will store the results in the Local Data Base. This process will also
continue after restarting Meshlium.
At any time you can see the last "x" records stored. Just set how many insertions you want to see and press the "Show data"
button.
MeshliumDB
localhost / 10.10.10.1 *
libelium2007
