Libelium Waspmote Technical Manual page 38

Sensor sockets are configured as it is shown in figure below.
Sensor
Socket
A
B
C
D
E
F
Figure: Sensor sockets configuration for Ambient Control model

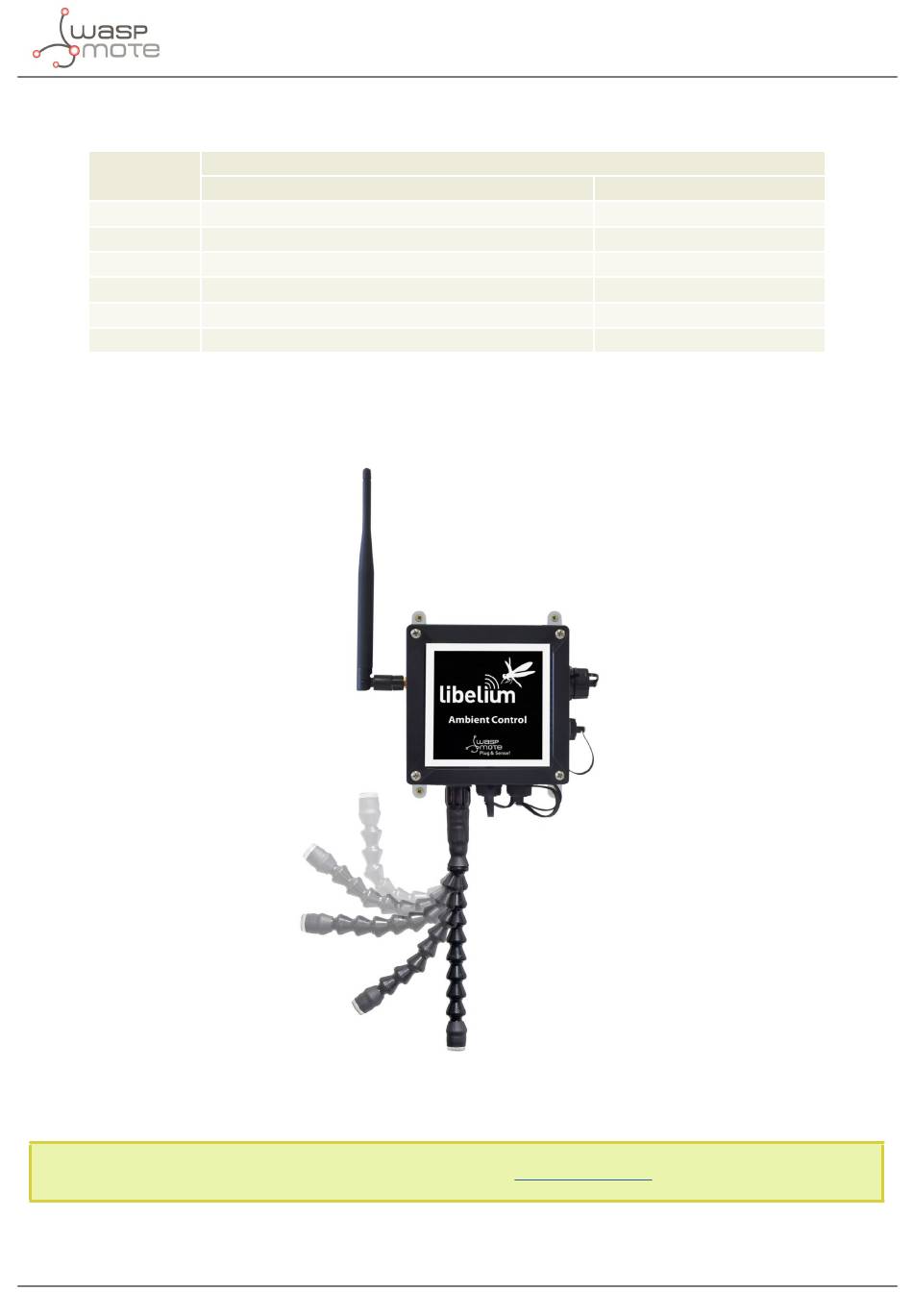

As we see in the figure below, thanks to the directionable probe, the Luminosity sensor (Luxes accuracy) probe may be placed
in different positions. The sensor can be focused directly to the light source we want to measure.
Figure: Configurations of the Luminosity sensor probe (luxes accuracy)
Note: For more technical information about each sensor probe go to the
Sensor probes allowed for each sensor socket
Parameter
Humidity + Temperature (Sensirion)
Luminosity (LDR)
Luminosity (Luxes accuracy)
Not used
Not used
Not used
Waspmote Plug & Sense! - Encapsulated Line
Reference
9247
9205
9325
-
-
-
Development section
-38-
in Libelium website.
v6.3
