Software version TC2.0
JULY 2009

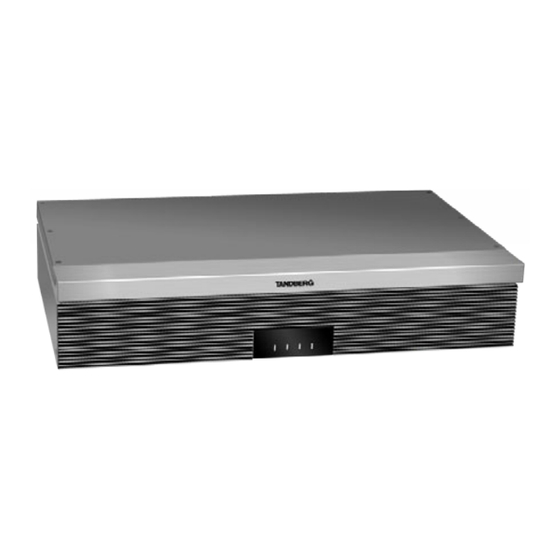

TANDBERG Codec C90

System Integrator Guide
D14128.03—JULY 2009
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C90 and is the answer not in the manual?

Questions and answers

Related Manuals for TANDBERG C90

Summary of Contents for TANDBERG C90

  • Page 1: Tandberg Codec C90

    Software version TC2.0 JULY 2009 TANDBERG Codec C90 System Integrator Guide D14128.03—JULY 2009...
  • Page 2 Basic Principles ..............34 The TANDBERG API-Engine ........... 34 Interfaces and sockets Structuring of Information ........... 34 Addressing Using XPath or TANDBERG SimplePath ..35 The front panel ................17 Feedback ................35 Rear panel sockets overview ............18 Connecting to the codec ............36 The Video Input Matrix ..............
  • Page 3 TANDBERG Remote Control TRC5 ........... 149 Description of the xConfiguration commands ......52 The Network status ............... 109 TANDBERG Remote Control TRC5 key map ......150 The Audio settings ..............52 The Camera Preset status .............111 The Camera settings ............... 54 The SIP status ................111...

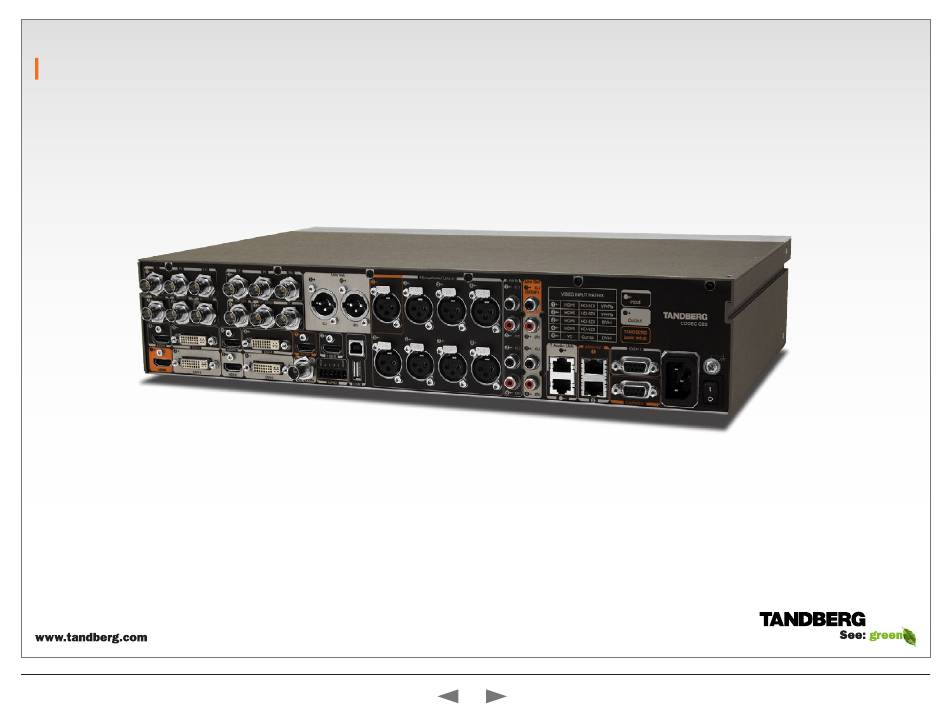

  • Page 4 Cameras Appendices Contact us Chapter 1 Introduction Thank you for choosing TANDBERG! In this chapter... Your TANDBERG Codec C90 has been Intellectual property rights designed to give you many years of safe, Trademark reliable operation. Copyright Disclaimer How to read this document...

  • Page 5: Patent Information

    The specifications for the Products and the information in this The products described in this manual are covered by one or more of contain information that is proprietary to TANDBERG and its licensors. document are subject to change at any time, without notice, by...
  • Page 6 • Do not attempt to service the apparatus Make sure the Codec yourself as opening or removing covers may C90 never rest on expose you to dangerous voltages or other the front panel. Dust hazards, and will void the warranty. Refer all Do not operate the apparatus in areas with high servicing to qualified service personnel.
  • Page 7 Directive (2002/96/EC) and the European RoHS Directive (2002/95/EC). Digital User Guides TANDBERG is pleased to announce that we have Waste Handling replaced the printed versions of our user guides In order to avoid the dissemination of hazardous with digital versions available on the TANDBERG...

  • Page 8: Getting Started

    Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Getting started Interfaces About the API xCommand xStatus Cameras Appendices Contact us Chapter 2 Getting started This chapter introduces you to the codec In this chapter...

  • Page 9: Assemble Your System

    Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Getting started Interfaces About the API xCommand xStatus Cameras Appendices Contact us Assemble your system...

  • Page 10: Using The Remote Control

    Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Getting started Interfaces About the API xCommand xStatus Cameras Appendices Contact us Using the Remote Control...
  • Page 11 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Getting started Interfaces About the API xCommand xStatus Cameras Appendices Contact us Using the Remote...

  • Page 12: Initial Configurations

    Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Getting started Interfaces About the API xCommand xStatus Cameras Appendices Contact us Initial configurations Password protection of the Advanced menu If a menu password has been set you will be asked to enter a password to get access to the Advanced menu.
  • Page 13 For SIP type of communication, similar type of information will be supplied. Navigate to Settings > System Information • For networks administrated through TMS (TANDBERG Management Suite), your TMS administrator will be able to assist you when configuring. Verify the previous configurations.
  • Page 14 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Getting started Interfaces About the API xCommand xStatus Cameras Appendices Contact us Setting a menu password It is highly recommended to define a password to access the Advanced menus.

  • Page 15: About Monitors

    1 or one of the other outputs which are HDMI 3, DVI-I 2 or DVI-I 4. When connecting to HDMI 1 When you connect the main monitor to the default video output on Codec C90 the menu, icons and other information on screen (OSD - on screen display) will show on this monitor. DVI-I 4...
  • Page 16 In this chapter you will find an in-depth In this chapter... presentation of the rear panel sockets and The front panel interface of the TANDBERG Codec C90, including audio signal levels and formats Rear panel overview supported. The video input matrix...
  • Page 17 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces Interfaces About the API xCommand xStatus Cameras Appendices Contact us The front panel There are four LED’s in the front of the Codec: •...
  • Page 18 The other sockets are: 4xHDMI 8xXLR Female - Microphone/Line In Ethernet 1 and Ethernet 2* The TANDBERG Codec C90 offers a great flexibility 4xHD-SDI 4xRCA - Line In (1 Left, 2 Right, 3 Left, 4 Right) COM - Serial data port...

  • Page 19: The Video Input Matrix

    Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces Interfaces About the API xCommand xStatus Cameras Appendices Contact us The Video Input Matrix...
  • Page 20 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces Interfaces About the API xCommand xStatus Cameras Appendices Contact us Video inputs (I) Video input formats...
  • Page 21 DVI-I - Digital Video Interface - Integrated (digital Pin: 19 DVI-D and analog DVI-A) Typical use. Two digital video inputs for PC presentations or used for the TANDBERG Pin: 18 PrecisionHD Camera. Main connector. The DVI-I 3 is the main connector for PC input.
  • Page 22 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces Interfaces About the API xCommand xStatus Cameras Appendices Contact us Video outputs Video output formats See the Technical specification section for a complete overview of the video output formats.
  • Page 23 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces Interfaces About the API xCommand xStatus Cameras Appendices Contact us Audio inputs (I) Unused, but connected audio inputs should be set to Off to avoid unwanted audio/noise.
  • Page 24 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces Interfaces About the API xCommand xStatus Cameras Appendices Contact us Audio inputs (II) Unused, but connected audio inputs should be set to Off to avoid unwanted audio/noise.
  • Page 25 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces Interfaces About the API xCommand xStatus Cameras Appendices Contact us Audio outputs (I) Line Out 5–6 (XLR) 2xBalanced XLR sockets, audio output 5–6.
  • Page 26 Out 2 (right) are the main connectors to the local loudspeaker system. The local loudspeaker system may or may not include the TANDBERG DNAM (Digital Natural Audio Module). Default configuration Line Out 1-2. In default configuration, Line Out 1 and 2 are configured as stereo speakers.
  • Page 27 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces Interfaces About the API xCommand xStatus Cameras Appendices Contact us Audio signal levels tables...
  • Page 28 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces Interfaces About the API xCommand xStatus Cameras Appendices Contact us Audio signal levels, cont...
  • Page 29 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces Interfaces About the API xCommand xStatus Cameras Appendices Contact us Network connectors Ethernet interface 2 ×...
  • Page 30 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces Interfaces About the API xCommand xStatus Cameras Appendices Contact us COM port and Camera...
  • Page 31 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces Interfaces About the API xCommand xStatus Cameras Appendices Contact us Power Power socket Power Cord Socket.
  • Page 32 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces Interfaces About the API xCommand xStatus Cameras Appendices Contact us Other connectors 1 × USB Host 1 ×...
  • Page 33 Cameras Appendices Contact us Chapter 4 About the TANDBERG API The heart of the API is the TANDBERG In this chapter... API-Engine. This is where all information is The TANDBERG API stored and processed. Connecting to the codec The API engine can be accessed by an...
  • Page 34 Accessing catalogues on a Windows computer executed. using the Command Prompt gives a different view The TANDBERG API-Engine is optimized for easy, yet advanced, machine-machine interaction between a than using Windows Explorer, but the information TANDBERG system and an external control application.
  • Page 35 Addressing Using XPath or TANDBERG SimplePath Feedback To address information in the hierarchic structure of Status and Feedback is an extremely powerful feature where the TANDBERG Configuration information, the TANDBERG systems support system actively returns updated status and configuration information abbreviated XML Path Language (XPath) and a proprietary notation to the user/control application whenever changes occur.
  • Page 36 COM port. The COM port (RS-232) is a 9-pin, female, D-sub connector located on the back of the TANDBERG Codec C90. See the illustration to the right. The port is configured as a DCE (Data Communications Equipment).
  • Page 37 Cable. A straight-through cable should be used between the To DCE 3 TD Transmit data, TXD 3 TD <— TANDBERG RS-232 port and the DTE. The lower table shows the recommended cable-wiring scheme when connecting the TANDBERG From DCE 4 DTR Data terminal ready, DTR 4 DTR <—...

  • Page 38: Value Types And Formats

    Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API About the API xCommand xStatus Cameras Appendices Contact us Value types and formats...

  • Page 39: Root Commands

    About the API xCommand xStatus Cameras Appendices Contact us Root commands By typing help after connecting to the TANDBERG Codec C90 - User Commands - using RS-232/Telnet/SSH, the system will list all supported root commands. help xconfiguration xfeedback xgetxml xhistory...
  • Page 40 IMPORTANT! This command has various settings SSH session for which it is specified. to define the formatting of the XACLI output. It is If connecting to the TANDBERG codec with therefore important to define settings to match multiple RS-232/Telnet/SSH sessions, each the parser used on the control system.
  • Page 41 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API About the API xCommand xStatus Cameras Appendices Contact us About xConfiguration...
  • Page 42 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API About the API xCommand xStatus Cameras Appendices Contact us xConfiguration operations...
  • Page 43 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API About the API xCommand xStatus Cameras Appendices Contact us About xCommand...
  • Page 44 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API About the API xCommand xStatus Cameras Appendices Contact us xCommand operations...
  • Page 45 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API About the API xCommand xStatus Cameras Appendices Contact us About xStatus commands...
  • Page 46 <address expression> To address status information enter the xStatus command followed by Example 1: Query all ongoing Call information: an address expression (XPath or TANDBERG SimplePath). xstatus call You can set up the xStatus read command to address all information or just some of it, see the examples to the right for illustrations.
  • Page 47 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API About the API xCommand xStatus Cameras Appendices Contact us About xHistory command...
  • Page 48 SSH for which it is specified. xFeedback Deregister XPathExpression - Deregisters feedback if resistered on XPathExpression If connecting to the TANDBERG codec with multiple RS-232/Telnet/ xFeedback List - Generate list of currently registered XPathExpressions SSH sessions, each session can define feedback individually.
  • Page 49 This command has various settings to define the formatting of the XACLI output. It is therefore important to define settings to match the parser used on the control system. XACLI is designed to make parsing of data from the TANDBERG Codec C90 very simple. xPreferences output mode: •...
  • Page 50 TANDBERG XML API service getxml TXAS is a service provided by TANDBERG units for transmitting and /getxml request returns an XML document based on the location parameter passed to the request. The elements (or complete document) receiving (transceiving) information encoded in XML format.
  • Page 51 Codec C90 System Integrator Guide xConfiguration Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Contact us Chapter 5 xConfiguration type commands This chapter gives a detailed description of In this chapter...

  • Page 52: Description Of The Xconfiguration Commands

    HDMI input. Example: xConfiguration Audio Input Line 1 Mode: On See the Audio Level tables in the Codec C90 System Integrators Guide for a complete overview of the menu values represented in dB. xConfiguration Audio Input Microphone [1..8] EchoControl Mode: Range: -24 to 0 dB <On/Off>...
  • Page 53 Audio Line output connector. On: Set to On to enable the microphone input. See the Audio Level tables in the Codec C90 System Integrator Guide for a complete overview of the menu Off: Set to Off to disable the microphone input.
  • Page 54 Applies to cameras which supports Flip mode. Enables the video on screen to be flipped upside down. Off. Addresses the specific camera. TANDBERG PrecisionHD 1080p camera auto detects if the camera is mounted upside down, hence flip mode is not necessary.
  • Page 55 Codec C90 System Integrator Guide xConfiguration Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Contact us xConfiguration Cameras Camera [1..7] Mirror: The Conference settings <On/Off>...
  • Page 56 Codec C90 System Integrator Guide xConfiguration Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Contact us xConfiguration Conference [1..1] Encryption Mode: The H323 Profile settings <Off/BestEffort>...
  • Page 57 Codec C90 System Integrator Guide xConfiguration Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Contact us xConfiguration H323 Profile [1..1] Gatekeeper Discovery: The Network settings <Manual/Auto>...
  • Page 58 Codec C90 System Integrator Guide xConfiguration Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Contact us xConfiguration Network [1..1] IEEE8021X Eap Peap: xConfiguration Network [1..1] IPv4 Gateway:...
  • Page 59 Format: String with a maximum of 64 characters. 10half: Force link to 10Mbps half-duplex. Example: 10full: Force link to 10Mbps full-duplex. xConfiguration NetworkServices NTP Address: “1.tandberg.pool.ntp.org” 100half: Force link to 100Mbps half-duplex. xConfiguration NetworkServices NTP Mode: <Auto/Manual> 100full: Force link to 100Mbps full-duplex.
  • Page 60 SNMP requests. SNMP requests must have a ‘password’ (case sensitive) in order to receive a response from the SNMP Agent in the codec. The default password is “public”. If you have the TANDBERG Management Suite (TMS) you must make sure the same SNMP Community is configured there too. Note! xConfiguration NetworkServices Telnet Mode: <On/Off>...
  • Page 61 TMS: If set to TMS the system will try to register with a TMS server as described in Provisioning Select the transport protocol to be used over the LAN. ExternalManager settings. TMS is short for TANDBERG Management System. Please contact your UDP: The system will always use UDP as the default transport method.
  • Page 62 Codec C90 System Integrator Guide xConfiguration Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Contact us xConfiguration SIP Profile [1..1] Outbound: The Standby settings <On/Off>...
  • Page 63 Codec C90 System Integrator Guide xConfiguration Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Contact us The System Unit settings...
  • Page 64 Visca chain. Addresses the specific video input source. Cascaded cameras and Visca commands are described in the PrecisionHD 1080p User Guide. The user guide is found at www.tandberg.com/docs Example: xConfiguration Video Input Source 1 CameraControl CameraId: 1...
  • Page 65 Codec C90 System Integrator Guide xConfiguration Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Contact us xConfiguration Video Input Source [1..5] CameraControl Mode: xConfiguration Video Input Source [5] Connector: <On/Off>...
  • Page 66 Codec C90 System Integrator Guide xConfiguration Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Contact us xConfiguration Video Layout ScaleToFrameTreshold: xConfiguration Video OSD Output: <0..100>...
  • Page 67 Codec C90 System Integrator Guide xConfiguration Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Contact us xConfiguration Video Output DVI [2, 4] Resolution: xConfiguration Video WallPaper: <Auto/640_480_60/800_600_60/1024...
  • Page 68 Cameras Appendices Contact us The Experimental menu We recommend you visit the TANDBERG web site regularly for updated versions of the manual. Go to: http://www.tandberg.com/docs The Advanced configurations menu has an option called Experimental. The settings within this menu can be used ‘as is’...
  • Page 69 Cameras Appendices Contact us The Experimental menu, We recommend you visit the TANDBERG web site regularly for updated versions of the manual. cont... Go to: http://www.tandberg.com/docs The Advanced configurations menu has an option called Experimental. The settings within this menu can be used ‘as is’...
  • Page 70 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xCommand xStatus Cameras Appendices Contact us Chapter 6 xCommand type commands Command type commands are used to In this chapter...
  • Page 71 In the following pages you will find a complete list of all xCommand type commands with parameters. xCommand Audio Sound Stop Stop playing audio sound. We recommend you visit the TANDBERG web site regularly for updated versions of the manual. Go to: http://www.tandberg.com/docs...
  • Page 72 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xCommand xStatus Cameras Appendices Contact us The Audio commands, The Audio commands, cont...
  • Page 73 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xCommand xStatus Cameras Appendices Contact us The Audio commands, The Audio commands, cont...
  • Page 74 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xCommand xStatus Cameras Appendices Contact us The Audio commands, The Audio commands, cont...
  • Page 75 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xCommand xStatus Cameras Appendices Contact us The Audio commands, The Boot command cont...
  • Page 76 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xCommand xStatus Cameras Appendices Contact us The Call commands The Call Log commands...
  • Page 77 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xCommand xStatus Cameras Appendices Contact us The Call Log commands, The Camera Control PiP command cont...
  • Page 78 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xCommand xStatus Cameras Appendices Contact us The Camera commands The Camera commands, cont...
  • Page 79 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xCommand xStatus Cameras Appendices Contact us The Camera commands, The Dial command cont...
  • Page 80 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xCommand xStatus Cameras Appendices Contact us The DTMF command The Far End Control commands, cont...
  • Page 81 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xCommand xStatus Cameras Appendices Contact us The HTTP Feedback commands...
  • Page 82 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xCommand xStatus Cameras Appendices Contact us The Phonebook commands The Phonebook commands, cont...
  • Page 83 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xCommand xStatus Cameras Appendices Contact us The Phonebook commands, The Presentation commands cont...
  • Page 84 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xCommand xStatus Cameras Appendices Contact us The Preset commands The SString Send command...
  • Page 85 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xCommand xStatus Cameras Appendices Contact us The Standby commands The System Unit commands...
  • Page 86 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xCommand xStatus Cameras Appendices Contact us The System Unit commands, The TString Send command cont...
  • Page 87 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xCommand xStatus Cameras Appendices Contact us The Video Layout commands The Video Layout commands, cont...
  • Page 88 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xCommand xStatus Cameras Appendices Contact us The Video Layout commands, The Video Layout commands, cont...
  • Page 89 Cameras Appendices Contact us The Experimental menu We recommend you visit the TANDBERG web site regularly for updated versions of the manual. The Experimental commands can be used ‘as is’ and will not be further documented. Go to: http://www.tandberg.com/docs NOTE! The Experimental commands WILL change.
  • Page 90 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us Chapter 7 xStatus type commands Status type commands returns information In this chapter...
  • Page 91 Value space: <On/Off> about the system and system processes. You can query all information or just some of it. Example: We recommend you visit the TANDBERG web site regularly for updated versions of the manual. xStatus Audio Microphones Mute Go to: http://www.tandberg.com/docs...
  • Page 92 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The Audio status, The Audio status, cont...
  • Page 93 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The Audio status, The Audio status, cont...
  • Page 94 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The Audio status, The Call status cont...
  • Page 95 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The Call status, The Call status, cont...
  • Page 96 *s Camera 1 Connected: True xStatus Call 28 PlacedOnHold *s Camera 1 HardwareID: “50000000” *s Call 28 PlacedOnHold: False *s Camera 1 Manufacturer: “TANDBERG” ** end *s Camera 1 Model: “PrecisionHD 1080p 12X” *s Camera 1 SoftwareID: “S01718-4.0FINAL [ID:40043] 2009-06-25”...
  • Page 97 Value space: <S: 0,.100> Value space: <-65535..65535> Example: Example: xStatus Camera 1 Manufacturer xStatus Camera 1 Position Tilt *s Camera 1 Manufacturer: “TANDBERG” *s Camera 1 Position Tilt: 142 ** end ** end xStatus Camera [1..7] Model xStatus Camera [1..7] Position Zoom States the camera model.
  • Page 98 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The Conference status The Conference status, cont...
  • Page 99 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The Diagnostics status The Diagnostics status, cont...
  • Page 100 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The Diagnostics status, The Diagnostics status, cont...
  • Page 101 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The Diagnostics status, The Diagnostics status, cont...
  • Page 102 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The Diagnostics status, The Diagnostics status, cont...
  • Page 103 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The Diagnostics status, The Diagnostics status, cont...
  • Page 104 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The Diagnostics status, The Diagnostics status, cont...
  • Page 105 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The H323 status The H323 status, cont...
  • Page 106 Value space: <N/A> Value space: <S: 0..256> Example: Example: xStatus HTTP xStatus HttpFeedback 1 Expression *s HttpFeedback 1 URL: “http://tmsrd.rd.tandberg.com/tms/public/feedback/code. *s HttpFeedback 1 Expression: “/History/CallLog/History” aspx” *s HttpFeedback 1 Expression: “/Status/Call[Status=’connected’]” *s HttpFeedback 1 Expression: “/History/CallLog/History” *s HttpFeedback 1 Expression: “/Status/H323/Gatekeeper”...
  • Page 107 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The Media Channel status The Media Channel status, cont...
  • Page 108 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The Media Channel status, The Media Channel status, cont...
  • Page 109 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The Media Channel status, The Network status cont...
  • Page 110 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The Network status, The Network status, cont...
  • Page 111 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The Camera Preset status...
  • Page 112 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The SIP status, The SIP status, cont...
  • Page 113 Value space: <S: 0,.100> xStatus SystemUnit Example: *s SystemUnit ProductType: “TANDBERG Codec” xStatus SystemUnit ProductId *s SystemUnit ProductId: “TANDBERG Codec C90” *s SystemUnit ProductId: “TANDBERG Codec C90” *s SystemUnit Uptime: 597095 ** end *s SystemUnit Software Application: “Endpoint” *s SystemUnit Software Version: “TC2.0.0”...
  • Page 114 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The System Unit status, The System Unit status, cont...
  • Page 115 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The System Unit status, The System Unit status, cont...
  • Page 116 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The System Unit status, The System Unit status, cont...
  • Page 117 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The Standby status The Video Input status...
  • Page 118 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The Video Input status, The Video Input status, cont...
  • Page 119 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The Video Output status The Video Output status, cont...
  • Page 120 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The Video Output status, The Video Layout status cont...
  • Page 121 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The Video Layout status, The Video Layout status, cont...
  • Page 122 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus xStatus Cameras Appendices Contact us The Video Layout status, The Video Layout status, cont...
  • Page 123 Cameras Appendices Contact us The Experimental menu We recommend you visit the TANDBERG web site regularly for updated versions of the manual. The Experimental commands can be used ‘as is’ and will not be further documented. Go to: http://www.tandberg.com/docs NOTE! The Experimental commands WILL change.
  • Page 124 Appendices Contact us The Experimental menu, cont... We recommend you visit the TANDBERG web site regularly for updated versions of the manual. The Experimental commands can be used ‘as is’ and will not be further documented. Go to: http://www.tandberg.com/docs NOTE! The Experimental commands WILL change.
  • Page 125 Camera has been designed to give you The PrecisionHD 1080p camera many years of safe, reliable operation. Connecting the camera Additional information about the camera is found in the TANDBERG PrecisionHD Best view—Face recognition 1080p User Guide. Video output formats Cameras in daisy chain...
  • Page 126 Camera port on the codec. When the camera is used with TANDBERG codecs power will be supplied through Camera Control The lens hood is detachable. cable. When used with non-TANDBERG Codecs, you may have to We recommend that you connect power separately.
  • Page 127 HDMI 1 In on the Codec. If you need to connect the camera to a TANDBERG Video Switch or to a system with a DVI-D socket, use the enclosed HDMI to DVI-D adapter. VISCA™ is a trademark of Sony Corporation...
  • Page 128 The PrecisionHD 1080p camera, cont... Best view—Face recognition This camera is capable of face recognition when used with TANDBERG C60/C90 Codecs. Consequently, the functionality is subject to change without prior notice in order to take advantage of further developments. NOTE: Observe that the Best view feature is still a preview feature.

  • Page 129: Video Output Formats

    Cameras Appendices Contact us Video output formats This section describes the video output formats for the TANDBERG PrecisionHD 1080p camera. DIP switch settings for video output formats The video output format for the camera is set by DIP switches. The DIP Switch table for video formats DIP switches are found on the bottom side of the camera.
  • Page 130 Cameras Cameras Appendices Contact us Cameras in daisy chain Example. Four daisy chained TANDBERG PrecisionHD 1080p cameras. A single daisy chain can have up to seven cameras. Cascaded cameras Power in Power in Power in 12V DC 12V DC...
  • Page 131 Cameras Cameras Appendices Contact us The PrecisionHD 720p camera TANDBERG Precision HD camera This page describes the TANDBERG PrecisionHD 720p camera. TANDBERG Precision HD camera Description Ranges Connecting the camera 0..816 Video out. For video out signals, connect from the HDMI on the Tilt 0..89...
  • Page 132 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Appendices Contact us Chapter 9 Appendices In this chapter...

  • Page 133: Dynamic Audio Api

    Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Appendices Contact us Dynamic audio API Example 1:...

  • Page 134: The Equalizer

    Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Appendices Contact us The equalizer There is a set of experimental API commands for the The system has 8 user defined equalizers, each made up of audio equalizer and audio input/output.

  • Page 135: Microphone Reinforcement

    Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Appendices Contact us Microphone reinforcement Using microphone reinforcement in a large room To improve speech intelligibility in a large room, the local microphones are played out on speakers locally as well as being sent to far end.
  • Page 136 Stereo in Multisite Stereo in Multisite on Codec C90 The TANDBERG Codec C90 also sends and receives stereo signals in multisite. Stereo in Multisite on Codec C60 Presentation...

  • Page 137: Password Protection

    When a password is set, the password is required to get access to Reboot the codec. the Advanced menu on screen. Contact your TANDBERG representative if you have Login to the codec forgotten the password. How to change the menu password •...

  • Page 138: Startup Script

    Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Appendices Contact us Startup script Adding a startup script...

  • Page 139: The Web Interface

    Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Appendices Contact us The web interface The system info page The web interface allows for remote administration of the system.
  • Page 140 Logs • Add release key How to upgrade the software on the codec: Contact your TANDBERG representative to obtain the software upgrade file. Click Browse... and locate the upgrade file (.PKG) Click the Upgrade button to start the installation. Leave the system to allow the installation process to complete.
  • Page 141 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Appendices Contact us The web interface, cont...
  • Page 142 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Appendices Contact us The web interface, cont...
  • Page 143 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Appendices Contact us The web interface, cont...
  • Page 144 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Appendices Contact us The web interface, cont...
  • Page 145 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Appendices Contact us The web interface, cont...
  • Page 146 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Appendices Contact us The web interface, cont...
  • Page 147 System info • Upgrade software • Advanced configuration The log files • Wallpaper The log files are TANDBERG specific debug • Call files which may be required by TANDBERG in the need of technical support. • Upload certificates • XML files •...
  • Page 148 Advanced configuration • Wallpaper • Call • Upload certificates • XML files • Logs Enter the release key and press the Add button. • Add release key The release key Contact your TANDBERG representative to obtain the release key. D14128.03—JULY 2009...

  • Page 149: Tandberg Remote Control Trc5

    Interfaces About the API xCommand xStatus Cameras Appendices Appendices Contact us TANDBERG Remote Control TRC5 Function keys: Represents shortcuts and advanced functions. Each key reflects a soft key on screen. Presentation: Press the key to show/hide a presentation. Microphone: Press the key to toggle the microphones on/off.
  • Page 150 Button codes - Remote control TRC5 IR Signal parameters Address Button name Address Button name Name Description The TANDBERG Remote control TRC5 has the Protocol following button codes and IR signal parameters. Number 1 Call Reference frequency End call Number 2...

  • Page 151: Supported Rfcs In Sip

    Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Appendices Contact us Supported RFCs in SIP Current RFCs and drafts supported in SIP •...

  • Page 152: China Rohs Table

    Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Appendices Contact us China RoHS table This product complies with the Chineese RoHS.
  • Page 153 Appendices Appendices Contact us CE Declaration for Codec C90 For an official, signed version of this document, or details regarding documentation from the technical construction file, please contact TANDBERG. EC Declaration of conformity MANUFACTURER: TANDBERG Telecom AS PRODUCT NAME: TANDBERG Codec C90...
  • Page 154 About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Appendices Contact us TANDBERG Codec C90 dimensions Dimensions in mm. Front view Left side view Top view D14128.03—JULY 2009...

  • Page 155: Precisionhd 1080P Camera Dimensions

    Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Appendices Contact us PrecisionHD 1080p camera dimensions...
  • Page 156 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Appendices Contact us PrecisionHD camera dimensions D14128.03—JULY 2009...

  • Page 157: Technical Specifications

    Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Appendices Contact us Technical specifications • 720 x 576@50 Hz (576p50) •...
  • Page 158 • Directive 2006/95/EC (Low Voltage Directive)— • H.323 • 1920 x 1080@50 Hz (HDMI only) trademarks of TANDBERG in the U.S. and other countries. Standard EN 60950-1 • • 1920 x 1080@30 Hz • Directive 2004/108/EC (EMC Directive)— Standard EN All other trademarks are property of their respective •...
  • Page 159 Codec C90 System Integrator Guide Contents Introduction Getting Started Interfaces About the API xConfiguration xConfiguration xCommand xStatus Cameras Appendices Contact us Contents Introduction Getting started Interfaces About the API xCommand xStatus Cameras Appendices Contact us Contact us U.S. HEADQUARTERS EUROPEAN HEADQUARTERS...

Table of Contents
