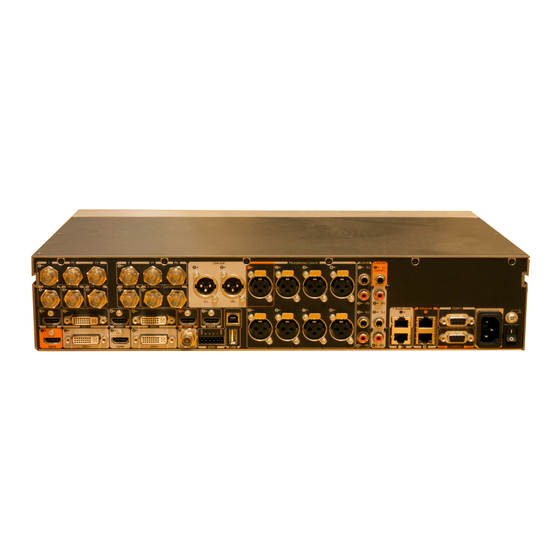

TANDBERG Codec C90 Administrator's Manual

Hide thumbs Also See for Codec C90:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
TANDBERG Codec C90 and Profiles using C90

Administrator guide

Contents
Contents
Introduction
Introduction
Advanced configuration
Advanced configuration
Password protection
Password protection
About monitors
About monitors
Audio matters
Audio matters
Appendices
Appendices
Contact us
Contact us
Software version TC3.1
MAY 2010
Administrator guide
For TANDBERG Codec C90 and Profile 65" Dual using C90
1
www.tandberg.com
D14635.03—MAY 2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Codec C90 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TANDBERG Codec C90

Summary of Contents for TANDBERG Codec C90

  • Page 1: Administrator Guide

    Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us Software version TC3.1 MAY 2010 Administrator guide For TANDBERG Codec C90 and Profile 65” Dual using C90 www.tandberg.com D14635.03—MAY 2010...

  • Page 2: Table Of Contents

    About monitors We recommend you visit the TANDBERG What’s new in this version ............6 About monitors when you have a Codec C90 ...... 41 web site regularly for updated versions of this Software release notes ............6 The main monitor .............. 41 guide.
  • Page 3 TANDBERG Codec C90 and Profiles using C90 Administrator guide Contents Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us The Video Input Matrix ............49 About the matrix ...............
  • Page 4 TANDBERG Codec C90 and Profiles using C90 Administrator guide Introduction Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us Chapter 1 Introduction www.tandberg.com www.tandberg.com...

  • Page 5: Introduction Introduction

    • Administrator guide for Profiles using Codec C60 and Codec C60/C40 changes to this document, please feed them back • Administrator guide for Profiles using Codec C90 and Codec C90 to TANDBERG through your TANDBERG Authorized Service Representative. • Camera user guide for PrecisionHD 1080p/720p If you need technical support, please contact your •...

  • Page 6: What's New In This Version

    (when the IP traffic goes through a NAT Series and Codec C Series. To help you find the information you router). need, TANDBERG has split the guides into smaller and more accessible parts. Settings that have changed OLD: Provisioning Mode: <Off/TMS>...
  • Page 7 Optimized DNAM for TANDBERG Profile providing crystal clear and natural audio. Microphones Remote control 3 x Microphones 3 x Microphones with cables Remote control • TANDBERG Remote Control TRC5 with 4 x AAA batteries Foot stand Floor standing foot plate www.tandberg.com D14635.03—MAY 2010...

  • Page 8: Tandberg Codec C90 At A Glance

    Contact us TANDBERG Codec C90 at a glance Design Features Integrator package The integrator package of the TANDBERG Codec C90 comes • The best, most powerful codec available with the ultimate The TANDBERG Codec C90 is used in telepresence and...

  • Page 9: Advanced Configuration Settings

    TANDBERG Codec C90 and Profiles using C90 Administrator guide Advanced config. Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us Chapter 2 Advanced configuration settings www.tandberg.com...

  • Page 10: Description Of The Advanced Configuration Settings

    TANDBERG Codec C90 and Profiles using C90 Administrator guide Advanced config. Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us Description of the advanced configuration settings The Audio settings, continued...
  • Page 11 TANDBERG Codec C90 and Profiles using C90 Administrator guide Advanced config. Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us The Audio settings, The Audio settings, cont...
  • Page 12 TANDBERG Codec C90 and Profiles using C90 Administrator guide Advanced config. Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us The Audio settings, The Audio settings, cont...
  • Page 13 Determines if the Audio Line output connector is an analog or digital type output. Volume 0 = Off. Value space: <Auto/SPDIF> Value space: <0..100> Auto: If a TANDBERG Digital NAM is detected then SPDIF mode will be selected, otherwise analog Range: Select a value from 0 to 100. mode will be selected. Example: Audio Volume: 70 SPDIF: Set to SPDIF when you want the line output to be in digital mode.

  • Page 14: The Camera Settings

    The Camera settings, cont... Cameras PowerLine Frequency Cameras Camera [1..7] Whitebalance Level Applies to cameras supporting PowerLine frequency anti-flickering, i.e TANDBERG PrecisionHD 1080p Set the whitebalance level. NOTE! Requires the Camera Whitebalance Mode to be set to Manual. cameras. Value space: <1..16>...
  • Page 15 The IR sensor LED is located in the front of the camera and flickers when the IR sensor is activated from the remote control. Both the TANDBERG camera and codec has an IR sensor. You would normally choose just one of them to be active at a time.

  • Page 16: The Conference Settings

    TANDBERG Codec C90 and Profiles using C90 Administrator guide Advanced config. Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us The Conference settings The Conference settings, cont...
  • Page 17 TANDBERG Codec C90 and Profiles using C90 Administrator guide Advanced config. Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us The Conference settings, The Conference settings, cont...

  • Page 18: The Gpio Settings

    The four GPIO pins are configured individually. The state can be retrieved by “xStatus GPIO Pin [1..4] The TANDBERG firewall traversal technology creates a secure path through the firewall barrier, and State”. The default pin state is High (+12V). When activated as output, they are set to 0V. To activate them enables proper exchange of audio/video data when connected to an external video conferencing as input, they must be pulled down to 0V.
  • Page 19 TANDBERG Codec C90 and Profiles using C90 Administrator guide Advanced config. Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us The H323 settings, The H323 settings, cont...

  • Page 20: The Network Settings

    TANDBERG Codec C90 and Profiles using C90 Administrator guide Advanced config. Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us The H323 settings, The Network settings cont...
  • Page 21 TANDBERG Codec C90 and Profiles using C90 Administrator guide Advanced config. Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us The Network settings, The Network settings, cont...
  • Page 22 TANDBERG Codec C90 and Profiles using C90 Administrator guide Advanced config. Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us The Network settings, The Network settings, cont...

  • Page 23: The Networkservices Settings

    TANDBERG Codec C90 and Profiles using C90 Administrator guide Advanced config. Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us The Network settings, The NetworkServices settings cont...
  • Page 24 SNMP Agent in the codec. The default password is “public”. If you have the Off: Disable the possibility to place and receive SIP calls. TANDBERG Management Suite (TMS) you must make sure the same SNMP Community is configured there too. NOTE! The SNMP Community password is case sensitive.

  • Page 25: The Phonebook Settings

    Value space: <VCS/TMS/Callway> On: The Telnet protocol is enabled. VCS: Select VCS if the phonebook is located on the TANDBERG Video Communication Server. Off: The Telnet protocol is disabled. This is the factory setting. TMS: Select TMS if the phonebook is located on the TANDBERG Management Suite server.

  • Page 26: The Provisioning Settings

    Off: The system will not try to register to any management system. NetworkServices HTTP Mode setting. TMS: If set to TMS (TANDBERG Management System) the system will try to register with a TMS server. HTTPS: Set to HTTPS to enable secure management. Requires HTTPS to be enabled in the Contact your TANDBERG representative for more information.

  • Page 27: The Serialport Settings

    TANDBERG Codec C90 and Profiles using C90 Administrator guide Advanced config. Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us The SerialPort settings...

  • Page 28: The Standby Settings

    TANDBERG Codec C90 and Profiles using C90 Administrator guide Advanced config. Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us The SIP settings, The Standby settings cont...

  • Page 29: The Systemunit Settings

    Off: Disable the IR sensor on the codec. Auto: Both the TANDBERG codec and camera has an IR sensor. The system will automatically disable the IR sensor on the codec if the IR sensor at camera is enabled. Otherwise the IR sensor on the codec will be enabled.

  • Page 30: The Time Settings

    TANDBERG Codec C90 and Profiles using C90 Administrator guide Advanced config. Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us The Time settings The Time settings, cont...

  • Page 31: The Video Settings

    TANDBERG Codec C90 and Profiles using C90 Administrator guide Advanced config. Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us The Video settings The Video settings, cont...
  • Page 32 The CameraId represents the camera’s position in the Visca chain. NOTE! Requires the Video Input Source CameraControl Mode to be enabled. Read more about cascaded cameras and Visca commands in the TANDBERG PrecisionHD 1080p User Table 1: Optimal definition, for systems supporting 1080p Guide.
  • Page 33 TANDBERG Codec C90 and Profiles using C90 Administrator guide Advanced config. Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us The Video settings, The Video settings, cont...
  • Page 34 Cyrillic characters can be entered using the remote control. NOTE! Requires a TANDBERG Remote Using the TANDBERG Remote Control TRC5: Press the Disconnect key followed by: * # * # 0 x # (where x Control TRC5 with Cyrillic fonts.
  • Page 35 TANDBERG Codec C90 and Profiles using C90 Administrator guide Advanced config. Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us The Video settings, The Video settings, cont...
  • Page 36 TANDBERG Codec C90 and Profiles using C90 Administrator guide Advanced config. Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us The Video settings, cont...

  • Page 37: The Experimental Menu

    TANDBERG Codec C90 and Profiles using C90 Administrator guide Advanced config. Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us The Experimental menu The Advanced configurations menu has an option called Experimental.

  • Page 38: Password Protection

    TANDBERG Codec C90 and Profiles using C90 Administrator guide Password protection Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us Chapter 3 Password protection www.tandberg.com...

  • Page 39: Setting The Codec Administrator Password

    TANDBERG Codec C90 and Profiles using C90 Administrator guide Password protection Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us Password protection Setting the codec administrator password...

  • Page 40: About Monitors

    TANDBERG Codec C90 and Profiles using C90 Administrator guide About monitors Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us Chapter 4 About monitors www.tandberg.com...

  • Page 41: About Monitors When You Have A Codec C90

    TANDBERG Codec C90 and Profiles using C90 Administrator guide About monitors Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us About monitors when you have a...

  • Page 42: Audio Matters

    TANDBERG Codec C90 and Profiles using C90 Administrator guide Audio matters Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us Chapter 5 Audio matters www.tandberg.com...

  • Page 43: Dynamic Audio Api

    TANDBERG Codec C90 and Profiles using C90 Administrator guide Audio matters Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us Dynamic audio API...

  • Page 44: The Equalizer

    Highpass filter The Audio Console application We recommend using the Audio Console, with the build in equalizer GUI, to modify the equalizers. The Audio Console application is found at the TANDBERG Developer Zone web page. Go to: http://developer.tandberg.com/web/guest/tools/ integrators/audio-console The equalizer filter parameters Frequency (Hz) Each section (1 …...

  • Page 45: Microphone Reinforcement

    TANDBERG Codec C90 and Profiles using C90 Administrator guide Audio matters Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us Microphone reinforcement Using microphone reinforcement in a large room...

  • Page 46: Stereo

    (see local stereo circuit example). In addition, there must be a signal on one of the connectors connected to the local input. Stereo in Multisite • The TANDBERG Codec C90 sends and receives stereo signals in multisite. Presentation Recorder •...
  • Page 47 TANDBERG Codec C90 and Profiles using C90 Administrator guide Appendices Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us Chapter 6 Appendices www.tandberg.com www.tandberg.com...

  • Page 48: Optimal Definition Profiles

    TANDBERG Codec C90 and Profiles using C90 Administrator guide Appendices Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us Optimal Definition Profiles Under ideal lighting conditions the bandwidth requirements can be substantial reduced with the optimal definitions profiles.

  • Page 49: The Video Input Matrix

    TANDBERG Codec C90 and Profiles using C90 Administrator guide Appendices Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us The Video Input Matrix...

  • Page 50: Tandberg Dnam For Profile 65

    TANDBERG Codec C90 and Profiles using C90 Administrator guide Appendices Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us TANDBERG DNAM for The DNAM Amplifier DNAM Loudspeaker Profile 65”...

  • Page 51: Ce Declarations

    TANDBERG Codec C90 and Profiles using C90 Administrator guide Appendices Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us CE Declarations TANDBERG Codec C90...

  • Page 52: China Rohs Table

    TANDBERG Codec C90 and Profiles using C90 Administrator guide Appendices Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us China RoHS table This products described in this guide complies with the Chineese RoHS.

  • Page 53: Supported Rfcs In Sip

    TANDBERG Codec C90 and Profiles using C90 Administrator guide Appendices Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us Supported RFCs in SIP Current RFCs and drafts supported in SIP •...

  • Page 54: Technical Specifications

    TANDBERG Codec C90 and Profiles using C90 Administrator guide Appendices Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us Technical specifications 800 x 600@56, 60, 72, 75, 85 Hz (SVGA)
  • Page 55 TANDBERG and Expressway are registered trademarks or USB host for future usage 4-way High Definition SIP/H.323 MultiSite trademarks of TANDBERG in the U.S. and other countries. Max rating – 1400 Watts USB device for future usage Full Individual audio and video transcoding up to 1080p30 All other trademarks are property of their respective Normal operation –...

  • Page 56: Tandberg Codec C90

    TANDBERG Codec C90 and Profiles using C90 Administrator guide Appendices Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us Technical specifications 848 x 480@60 Hz...
  • Page 57 175 watts max. for codec and main camera TANDBERG and Expressway are registered trademarks or IP Downspeeding 43.5° vertical field of view trademarks of TANDBERG in the U.S. and other countries. OPERATING TEMPERATURE AND HUMIDITY Dial in/Dial out 72° horizontal field of view All other trademarks are property of their respective 0°...
  • Page 58 TANDBERG Codec C90 and Profiles using C90 Administrator guide Contact us Contents Contents Introduction Introduction Advanced configuration Advanced configuration Password protection Password protection About monitors About monitors Audio matters Audio matters Appendices Appendices Contact us Contact us U.S. HEADQUARTERS EUROPEAN HEADQUARTERS...
