Controls and indicators

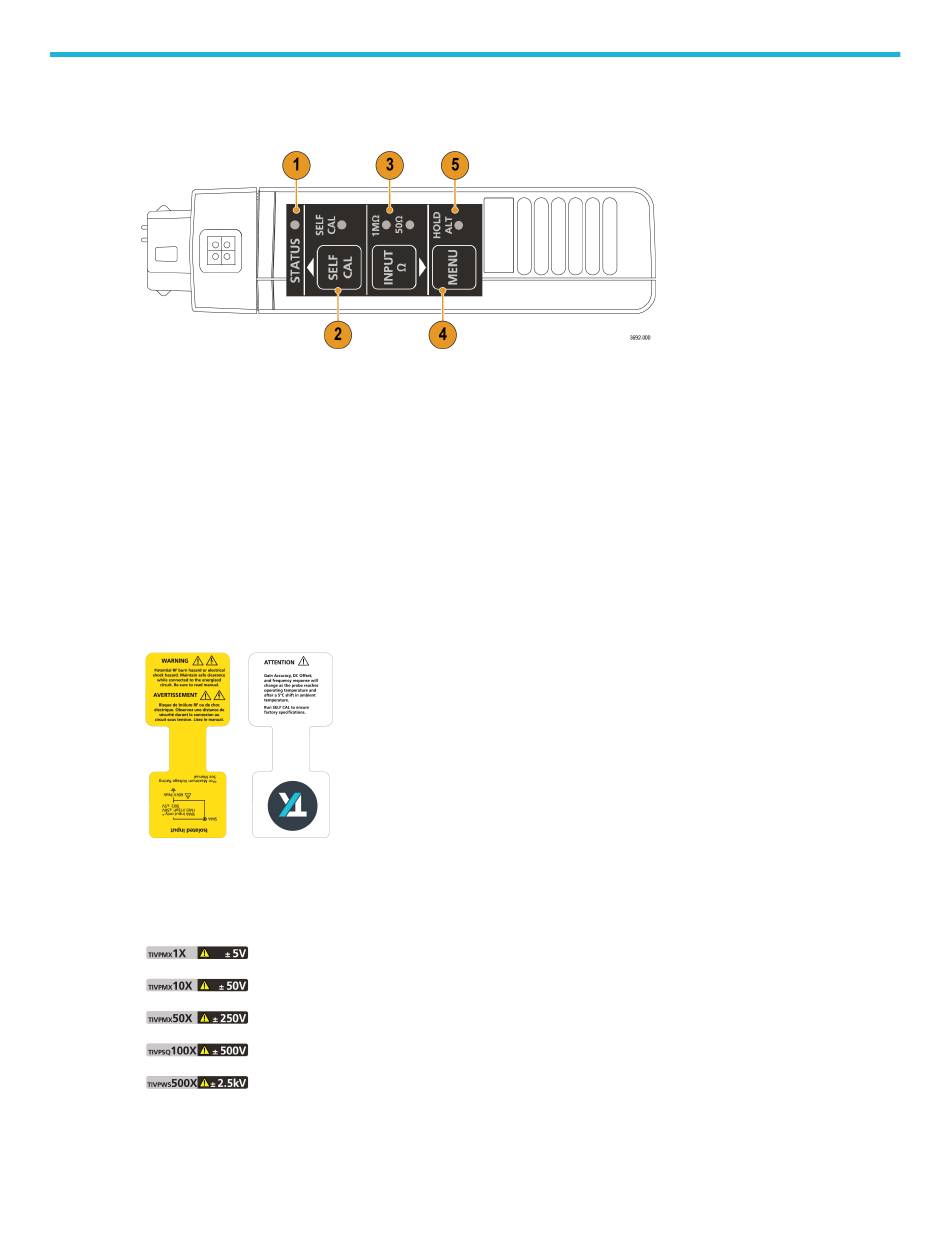

A description of the controls and indicators on the compensation box.
1. STATUS indicator. For more information on the state of the LED, see
2. SELF CAL button and LED indicator: Press to start self-calibration routine. For more information on the state of the
LED, see Table 8: SELF CAL LED descriptions
3. INPUT Termination button and LED indicator: With no tip attached, press to toggle the sensor head between 50 Ω and 1
MΩ termination. For more information on the state of the LED, see
4. MENU button: Press to open the Probe Vertical menu on the oscilloscope.
5. ALT mode indicator: Displays special information about the probe. For more information, see
description

Cable flags

Flags on the cable provide high-level specifications for connecting to the DUT. They also provide a potential RF burn
hazards warning and a self-calibration notification.

Sensor tip cable

Each sensor tip cable has a label that provides the maximum dynamic range and displays the attenuation factor.
