Submenu
Setting
Copy From
Select from the following items to copy
the white balance data of the selected
color temperature.
D65 (Default value)
D93
D61
D55
DCI
User1
User2
User3
User4
User5
DCI XYZ
Notes
If "Password Lock" has been turned
"On," the "User1" value is protected
by a password. To change the
values, enter the password.
The color temperature data is used
commonly regardless of the signal
format or the EOTF setting. When
the color temperature is adjusted
under certain conditions, the
adjusted result is reflected in all
displays on which the same color
temperature data is set.

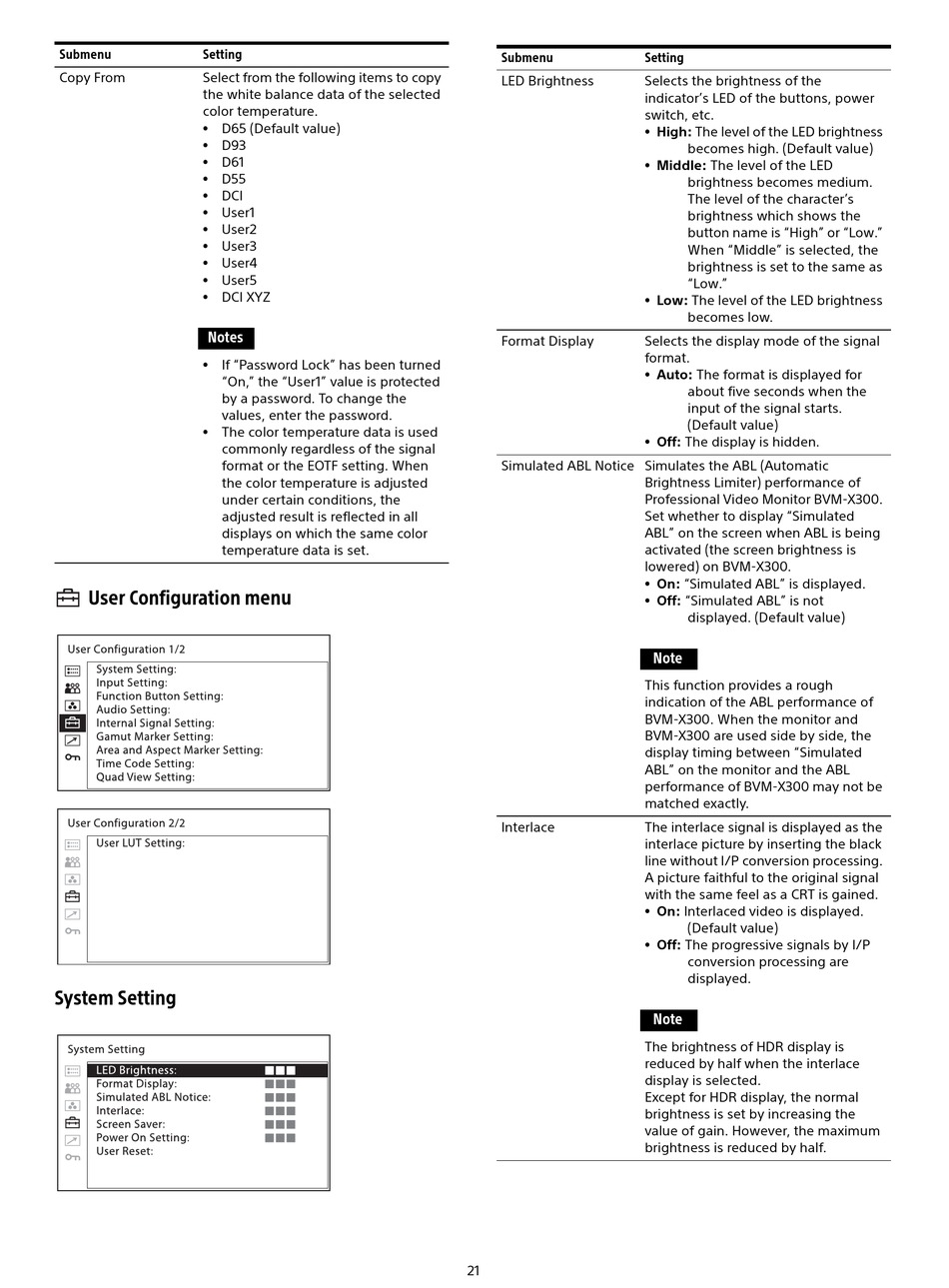

User Configuration menu

System Setting

Submenu
Setting
LED Brightness
Selects the brightness of the
indicator's LED of the buttons, power
switch, etc.
Format Display
Selects the display mode of the signal
format.
Simulated ABL Notice Simulates the ABL (Automatic
Brightness Limiter) performance of
Professional Video Monitor BVM-X300.
Set whether to display "Simulated
ABL" on the screen when ABL is being
activated (the screen brightness is
lowered) on BVM-X300.
This function provides a rough
indication of the ABL performance of
BVM-X300. When the monitor and
BVM-X300 are used side by side, the
display timing between "Simulated
ABL" on the monitor and the ABL
performance of BVM-X300 may not be
matched exactly.
Interlace
The interlace signal is displayed as the
interlace picture by inserting the black
line without I/P conversion processing.
A picture faithful to the original signal
with the same feel as a CRT is gained.
The brightness of HDR display is
reduced by half when the interlace
display is selected.
Except for HDR display, the normal
brightness is set by increasing the
value of gain. However, the maximum
brightness is reduced by half.
21
High: The level of the LED brightness
becomes high. (Default value)
Middle: The level of the LED
brightness becomes medium.
The level of the character's
brightness which shows the
button name is "High" or "Low."
When "Middle" is selected, the
brightness is set to the same as
"Low."
Low: The level of the LED brightness
becomes low.
Auto: The format is displayed for
about five seconds when the
input of the signal starts.
(Default value)
Off: The display is hidden.
On: "Simulated ABL" is displayed.
Off: "Simulated ABL" is not
displayed. (Default value)
Note
On: Interlaced video is displayed.
(Default value)
Off: The progressive signals by I/P
conversion processing are
displayed.
Note
