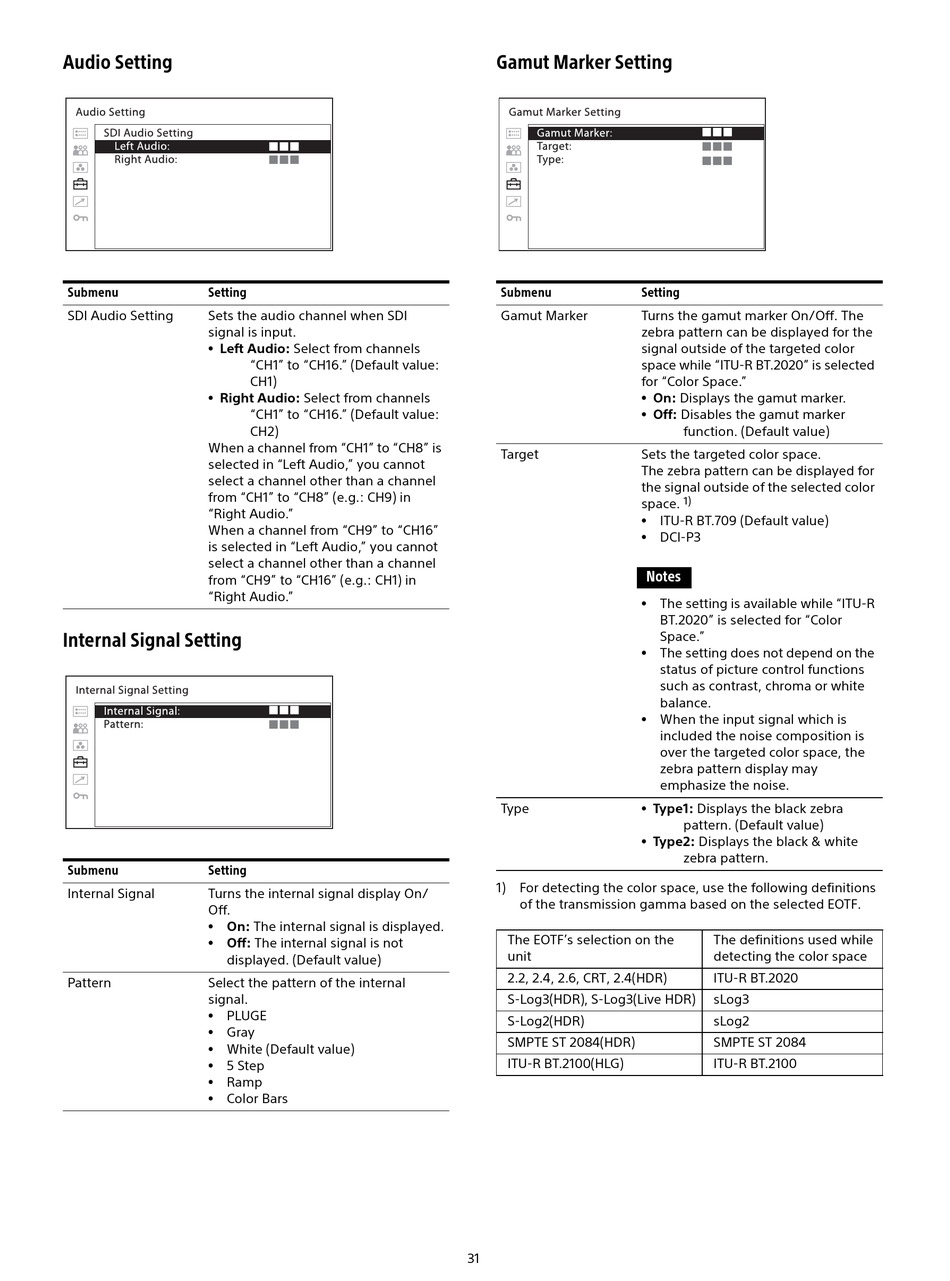

Audio Setting

Submenu
Setting
SDI Audio Setting
Sets the audio channel when SDI
signal is input.
Left Audio: Select from channels
Right Audio: Select from channels
When a channel from "CH1" to "CH8" is
selected in "Left Audio," you cannot
select a channel other than a channel
from "CH1" to "CH8" (e.g.: CH9) in
"Right Audio."
When a channel from "CH9" to "CH16"
is selected in "Left Audio," you cannot
select a channel other than a channel
from "CH9" to "CH16" (e.g.: CH1) in
"Right Audio."
Internal Signal Setting
Submenu
Setting
Internal Signal
Turns the internal signal display On/
Off.
On: The internal signal is displayed.
Off: The internal signal is not
displayed. (Default value)
Pattern
Select the pattern of the internal
signal.
PLUGE
Gray
White (Default value)
5 Step
Ramp
Color Bars
"CH1" to "CH16." (Default value:
CH1)
"CH1" to "CH16." (Default value:
CH2)
Gamut Marker Setting
Submenu
Setting
Gamut Marker
Turns the gamut marker On/Off. The
zebra pattern can be displayed for the
signal outside of the targeted color
space while "ITU-R BT.2020" is selected
for "Color Space."
Target
Sets the targeted color space.
The zebra pattern can be displayed for
the signal outside of the selected color
space.
Type
1)
For detecting the color space, use the following definitions
of the transmission gamma based on the selected EOTF.
The EOTF's selection on the
unit
2.2, 2.4, 2.6, CRT, 2.4(HDR)
S-Log3(HDR), S-Log3(Live HDR)
S-Log2(HDR)
SMPTE ST 2084(HDR)
ITU-R BT.2100(HLG)
31
On: Displays the gamut marker.
Off: Disables the gamut marker
function. (Default value)
1)
ITU-R BT.709 (Default value)
DCI-P3
Notes
The setting is available while "ITU-R
BT.2020" is selected for "Color
Space."
The setting does not depend on the
status of picture control functions
such as contrast, chroma or white
balance.
When the input signal which is
included the noise composition is
over the targeted color space, the
zebra pattern display may
emphasize the noise.
Type1: Displays the black zebra
pattern. (Default value)
Type2: Displays the black & white
zebra pattern.
The definitions used while
detecting the color space
ITU-R BT.2020
sLog3
sLog2
SMPTE ST 2084
ITU-R BT.2100
