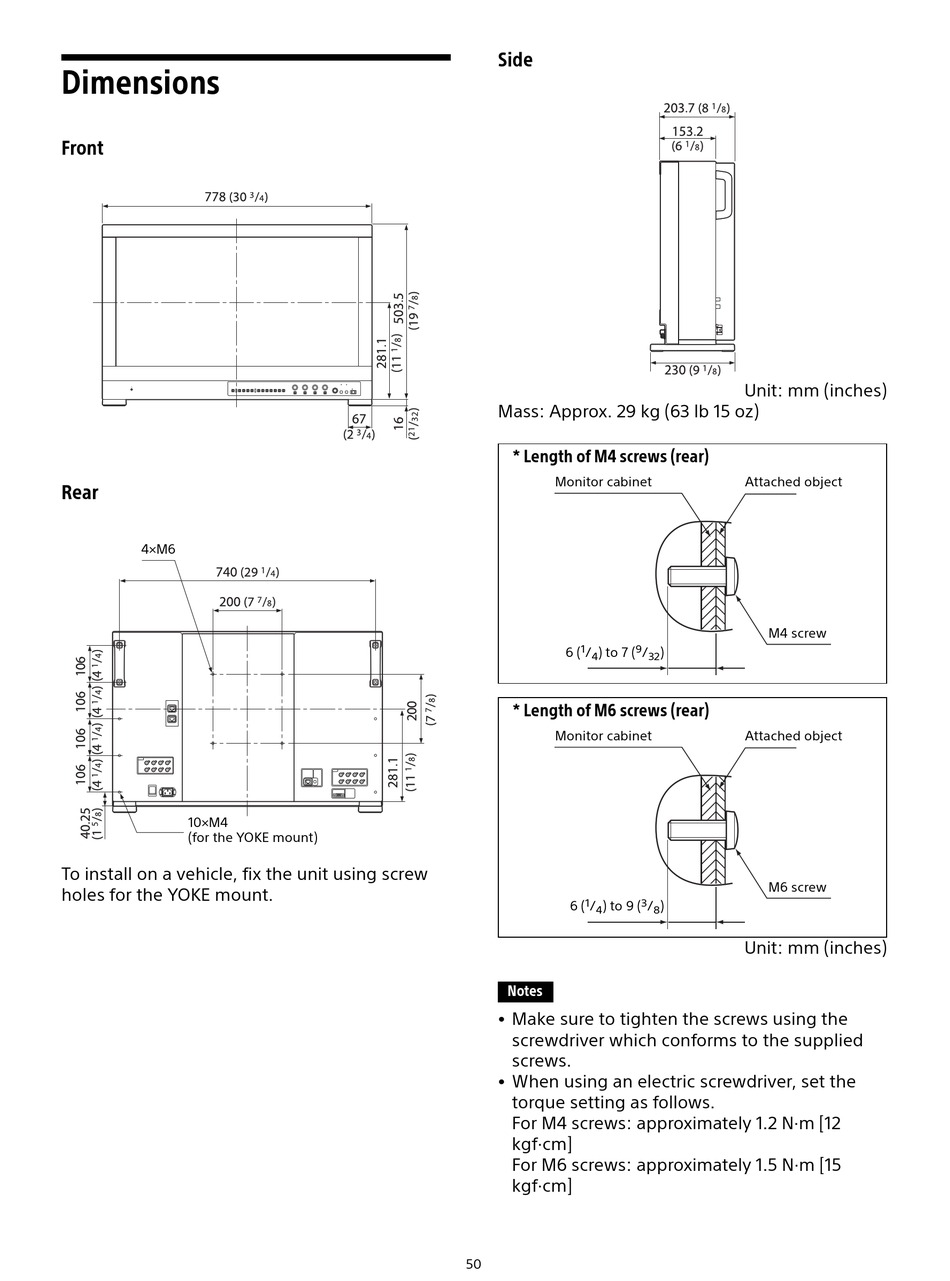

Dimensions

Front
Rear
4×M6
10×M4
(for the YOKE mount)
To install on a vehicle, fix the unit using screw
holes for the YOKE mount.
Side
Mass: Approx. 29 kg (63 lb 15 oz)
* Length of M4 screws (rear)
Monitor cabinet
1
9
6 (
/
) to 7 (
/
4
* Length of M6 screws (rear)
Monitor cabinet
1
3
6 (
/
) to 9 (
4
Notes
Make sure to tighten the screws using the
screwdriver which conforms to the supplied
screws.
When using an electric screwdriver, set the
torque setting as follows.
For M4 screws: approximately 1.2 N·m [12
kgf·cm]
For M6 screws: approximately 1.5 N·m [15
kgf·cm]
50
Unit: mm (inches)
Attached object
M4 screw
)
32
Attached object
M6 screw
/
)
8
Unit: mm (inches)
