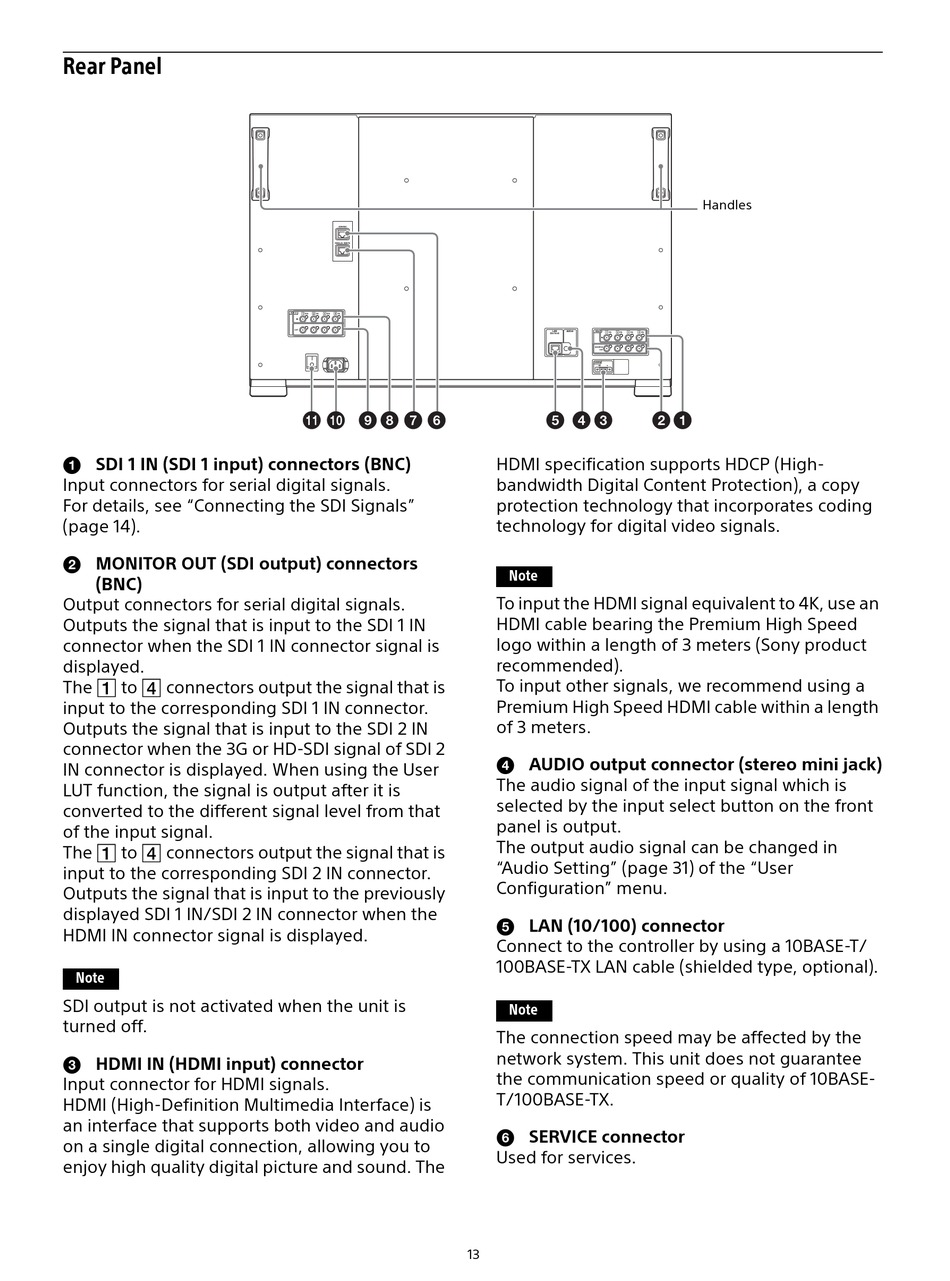

Rear Panel

 SDI 1 IN (SDI 1 input) connectors (BNC)
Input connectors for serial digital signals.
For details, see "Connecting the SDI Signals"
(page 14).
 MONITOR OUT (SDI output) connectors
(BNC)
Output connectors for serial digital signals.
Outputs the signal that is input to the SDI 1 IN
connector when the SDI 1 IN connector signal is
displayed.
The  to  connectors output the signal that is
input to the corresponding SDI 1 IN connector.
Outputs the signal that is input to the SDI 2 IN
connector when the 3G or HD-SDI signal of SDI 2
IN connector is displayed. When using the User
LUT function, the signal is output after it is
converted to the different signal level from that
of the input signal.
The  to  connectors output the signal that is
input to the corresponding SDI 2 IN connector.
Outputs the signal that is input to the previously
displayed SDI 1 IN/SDI 2 IN connector when the
HDMI IN connector signal is displayed.
Note
SDI output is not activated when the unit is
turned off.
 HDMI IN (HDMI input) connector
Input connector for HDMI signals.
HDMI (High-Definition Multimedia Interface) is
an interface that supports both video and audio
on a single digital connection, allowing you to
enjoy high quality digital picture and sound. The
HDMI specification supports HDCP (High-
bandwidth Digital Content Protection), a copy
protection technology that incorporates coding
technology for digital video signals.
Note
To input the HDMI signal equivalent to 4K, use an
HDMI cable bearing the Premium High Speed
logo within a length of 3 meters (Sony product
recommended).
To input other signals, we recommend using a
Premium High Speed HDMI cable within a length
of 3 meters.
 AUDIO output connector (stereo mini jack)
The audio signal of the input signal which is
selected by the input select button on the front
panel is output.
The output audio signal can be changed in
"Audio Setting" (page 31) of the "User
Configuration" menu.
 LAN (10/100) connector
Connect to the controller by using a 10BASE-T/
100BASE-TX LAN cable (shielded type, optional).
Note
The connection speed may be affected by the
network system. This unit does not guarantee
the communication speed or quality of 10BASE-
T/100BASE-TX.
 SERVICE connector
Used for services.
13
Handles
