Dosing Pump Settings - Agrowtek GrowControl GC-Pro Operation Manual

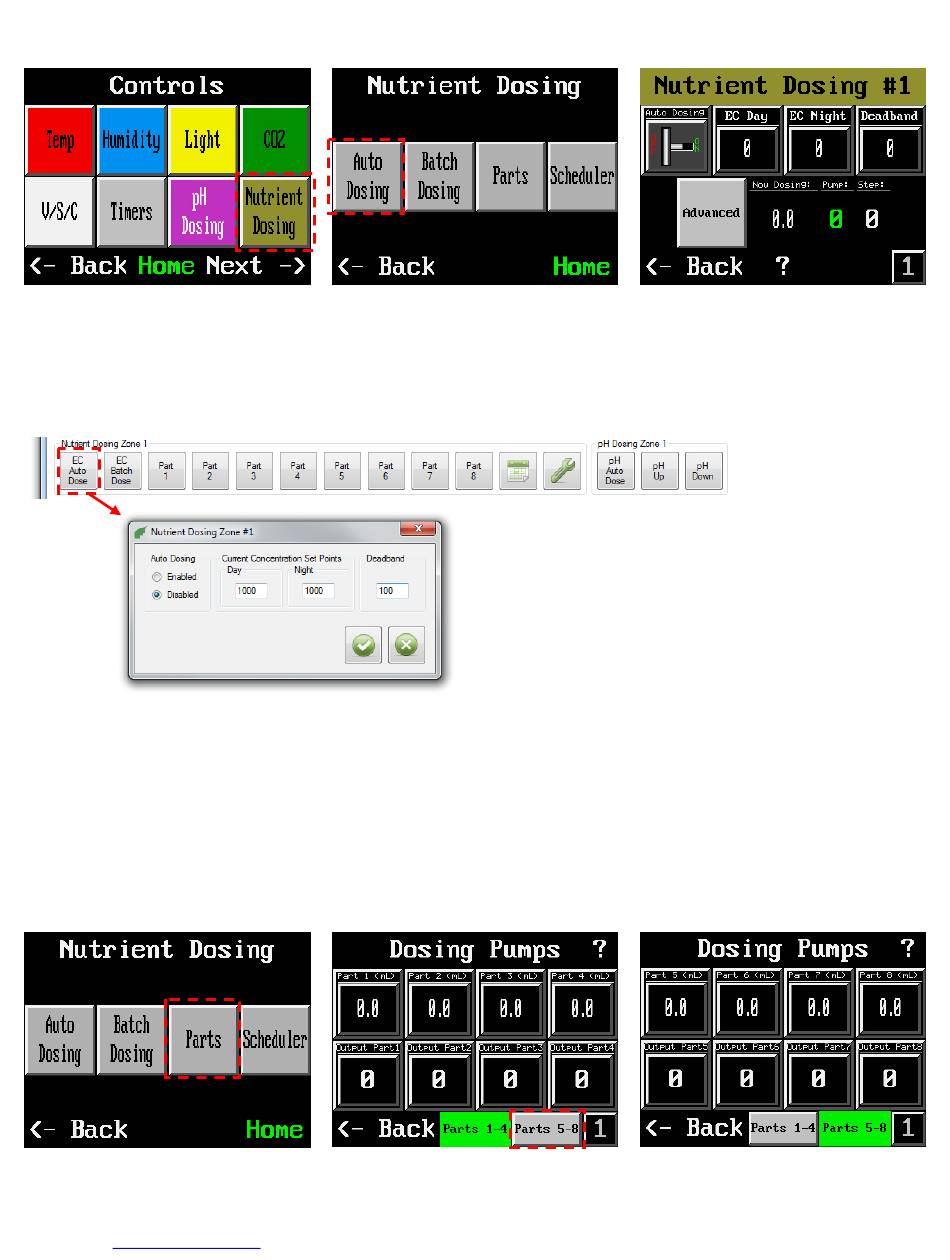

Touch Panel
The auto dosing controls are located in the main controls menu.
Press "Nutrient Dosing" button to access
the nutrient dosing menu.
Software
The nutrient dosing settings are accessed via the controls tab under the "Nutrient Dosing" group. If the controller is in multi-
zone mode, there will be two dosing groups; 1 & 2.
Dosing Parts / Pumps
The GC-Pro can operate up to eight (8) dosing pumps each with their own dose volume (or time.)
Part 1-8: (mL/Gal or seconds) In 'batch' mode, the part ratio (mL/Gal) is multiplied by the total batch size to find the total
dose amount for each part. In 'auto' mode the controller will add this amount (for one gallon) of each part in repeating cycles
until the concentration set point has been met.
Output Pump 1-8: The output numbers to assign to the respective dosing pumps.
Touch Panel
The dosing pumps and part ratios are found under the nutrient dosing main menu.
Press "Parts" button to access the
nutrient part ratios and pump outputs.
www.agrowtek.com
Press "Auto Dosing" button to access the
automatic nutrient dosing menu.
Set nutrient part ratios and pump output
assignments.
© 2013 Agrowtek Inc.
| 83 Ambrogio Dr Suite H Gurnee, IL 60031 | agrowtek@agrowtek.com
Press the number values to enter or
adjust with the numeric key pad.
Press "1" to toggle zone 1 to zone 2
(multi-zone mode only.)
Press "1" to toggle zone 1 to zone 2
(multi-zone mode only.)
