Inputs & Outputs (I/O)
Outputs
The controller turns equipment on and off by controlling outputs. Each control function (thermostats, timers, etc.) is
programmed to one of the available outputs as desired.
The controller comes with twelve (12) programmable outputs (GC-Pro-xD is equipped with 20 outputs.) The user names each
output for reference then assigns control functions to the outputs as required.
Note: "Output Sequence Delay Timer" may delay the activation of any output by the delay time. This prevents multiple
outputs from activating simultaneously thereby reducing electrical load spikes.
Inputs
Four (4) "Digital" inputs are available to connect switch type sensors (float switches, door switches, leak sensors, smoke
detectors, etc.) Digital inputs can be programmed to act in a variety of different ways including turning an output device on or
off when the input it tripped.
Touch Panel

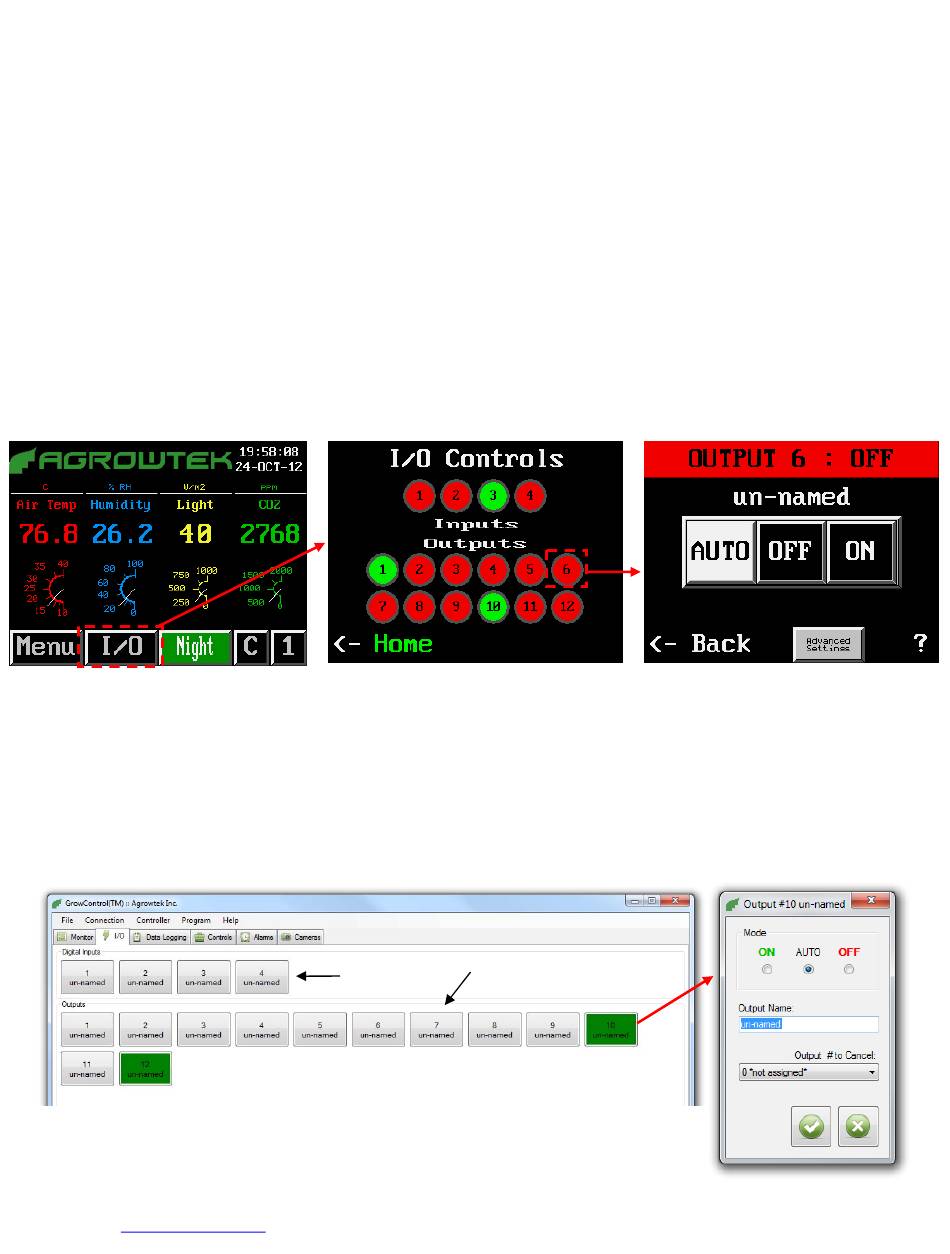

The I/O controls menu displays the current status of all the digital inputs and outputs. An input or output will be green when
activated, and red when inactive. Touching any of the input or output numbers will display the settings for that input or
output.
Status button indicates run or stopped,
and day or night (if in run mode.)
Software
The PC software contains the I/O controls on the 'IO' tab. If an input or output is activated, it will be shown in green.
Click an input or output button to start, stop or set to automatic mode, change the name or set the interlock/interrupt
output#.
9
www.agrowtek.com
Inputs and outputs that are on are
shown in green; off are shown in red.
Pressing an input or output number
displays the control functions for the
input or output.
Outputs
Inputs
© 2013 Agrowtek Inc.
| 83 Ambrogio Dr Suite H Gurnee, IL 60031 | agrowtek@agrowtek.com
Output can be named for reference,
manually operated or disabled, and be
programmed to disable another output
when on (advanced settings.)
