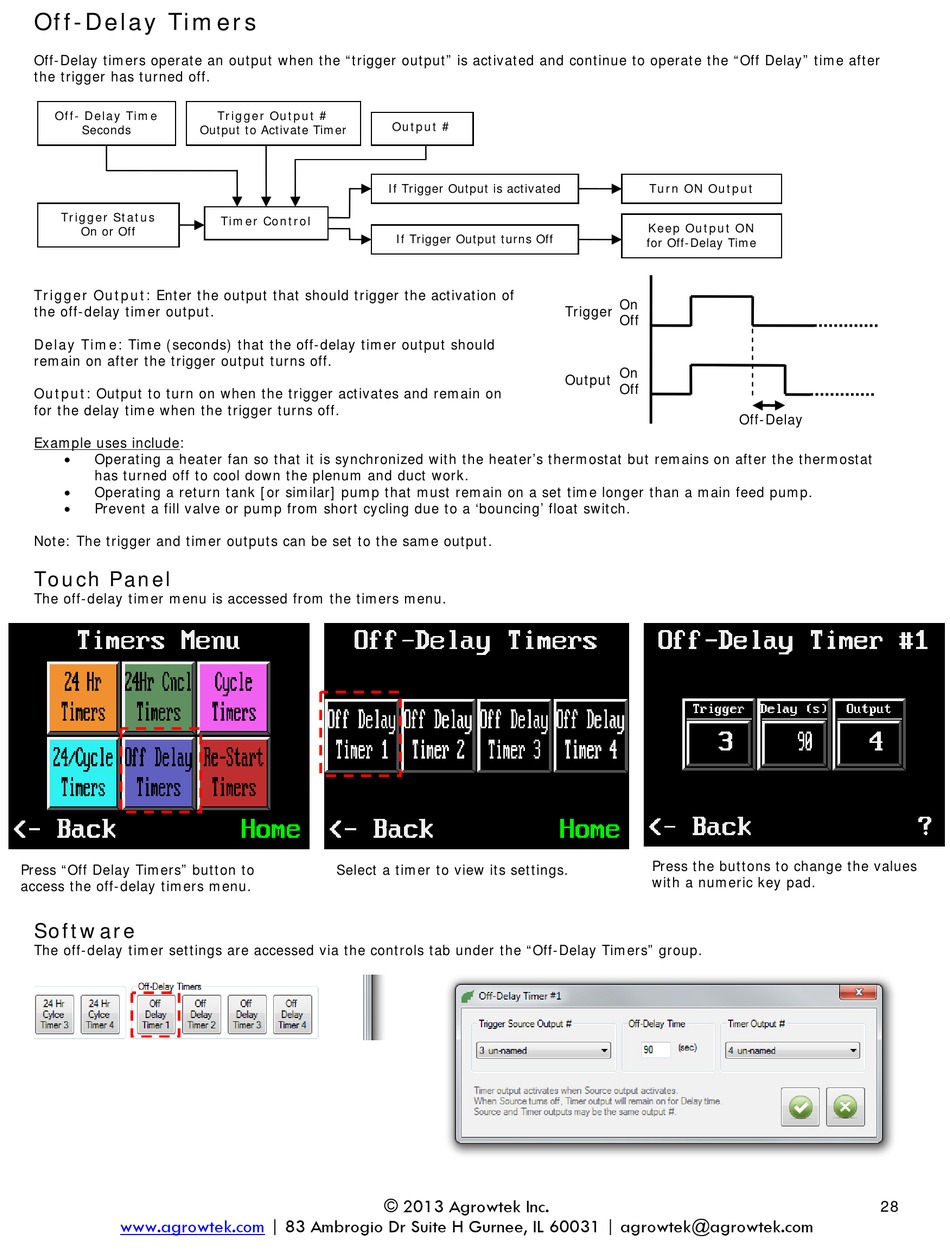

Off-Delay Timers

Off-Delay timers operate an output when the "trigger output" is activated and continue to operate the "Off Delay" time after
the trigger has turned off.
Off- Delay Time
Seconds Output to Activate Timer
Trigger Status
On or Off
Trigger Output: Enter the output that should trigger the activation of
the off-delay timer output.
Delay Time: Time (seconds) that the off-delay timer output should
remain on after the trigger output turns off.
Output: Output to turn on when the trigger activates and remain on
for the delay time when the trigger turns off.
Example uses include:
 Operating a heater fan so that it is synchronized with the heater's thermostat but remains on after the thermostat
has turned off to cool down the plenum and duct work.
 Operating a return tank [or similar] pump that must remain on a set time longer than a main feed pump.
 Prevent a fill valve or pump from short cycling due to a 'bouncing' float switch.
Note: The trigger and timer outputs can be set to the same output.
Touch Panel
The off-delay timer menu is accessed from the timers menu.
Press "Off Delay Timers" button to
access the off-delay timers menu.
Software
The off-delay timer settings are accessed via the controls tab under the "Off-Delay Timers" group.
www.agrowtek.com
Trigger Output #
Output #
If Trigger Output is activated
Timer Control
If Trigger Output turns Off
Select a timer to view its settings.
© 2013 Agrowtek Inc.
| 83 Ambrogio Dr Suite H Gurnee, IL 60031 | agrowtek@agrowtek.com
Turn ON Output
Keep Output ON
for Off-Delay Time
On
Trigger
Off
On
Output
Off
Off-Delay
Press the buttons to change the values
with a numeric key pad.
