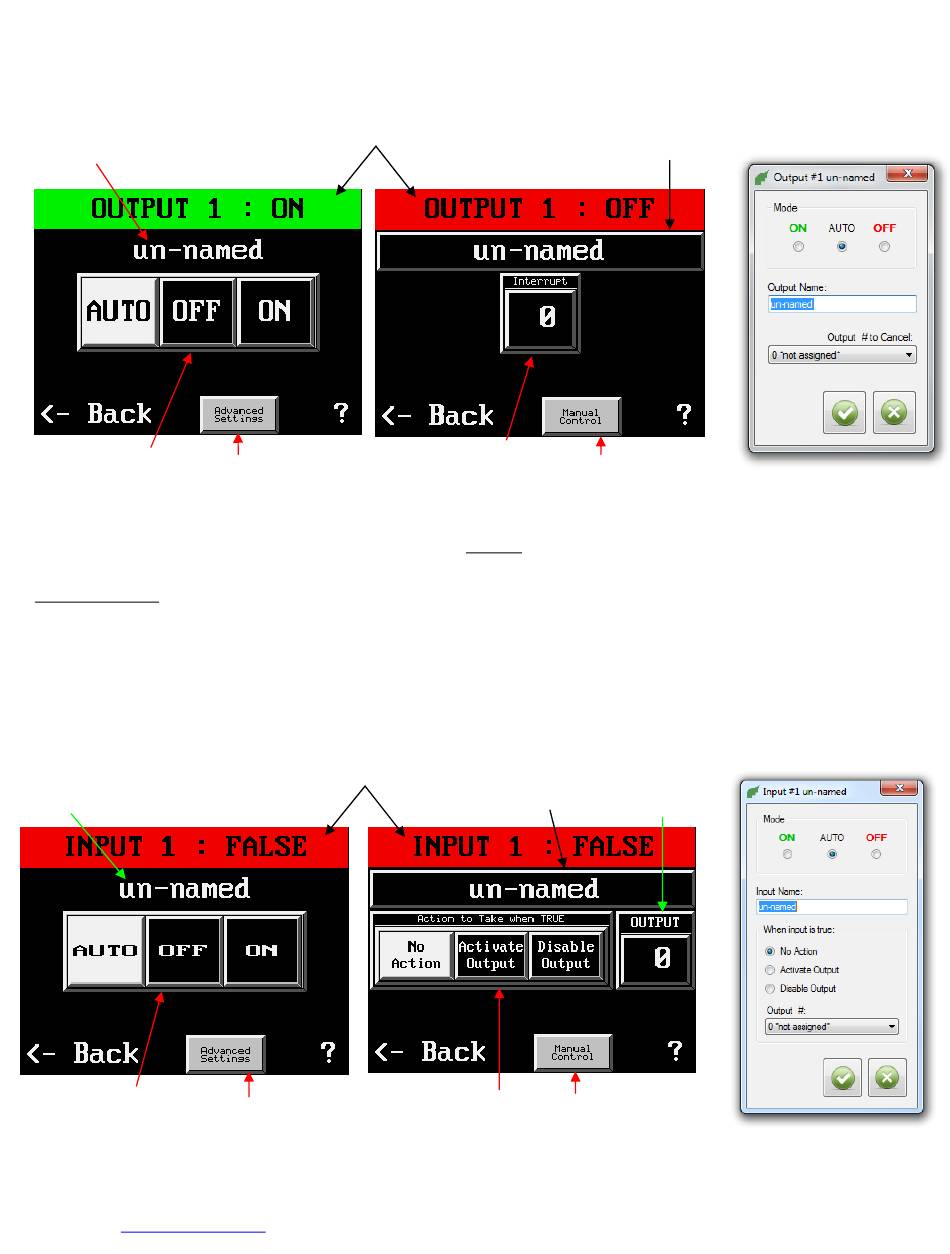

Output Settings

Outputs are devices that the controller turn on or off as required (such as lights, fans, pumps, etc.) Each output has its
operation designated by the controls functions, (described later) but the output can be manually operated or disabled, and can
utilize an 'interrupt' function.
Output status; green when on, red when off.
Output name
Manual over-ride or
Show advanced
automatic control.
Output Interrupts
The interrupt function causes a selected output number to be disabled any time the parent output is activated. This function
is most typically used to prevent CO2 outputs from activating when ventilation stages are active.
Interrupt Example: If the output shown above (output #1) is assigned to ventilation fans, and output #2 is assigned to CO2,
enter "2" in the interrupt value of output 1. (Also see temperature limit functions to cancel CO2 in anticipation of ventilation or
to prevent combustion generators from operating above a set limit temperature.)

Input Settings

Digital Inputs are those that act like switches (float switches, leak sensors, motion sensors, smoke detectors, etc.)
Digital inputs can be assigned to perform specific tasks when activated such as activate or disable an output.
Input status; green when on, red when off.
Input
name
Manual over-ride
Show advanced settings.
or automatic
control.
www.agrowtek.com
Output # to cancel when
the output (#1) is on.
Modify input name
Select action to take
when this input is true.
© 2013 Agrowtek Inc.
| 83 Ambrogio Dr Suite H Gurnee, IL 60031 | agrowtek@agrowtek.com
Modify output name
Show manual over-
ride controls.
Output # to take
action on when
input is true (on.)
Show manual over-
ride controls.
