Agrowtek GrowControl GC-Pro Operation Manual page 23

Touch Panel

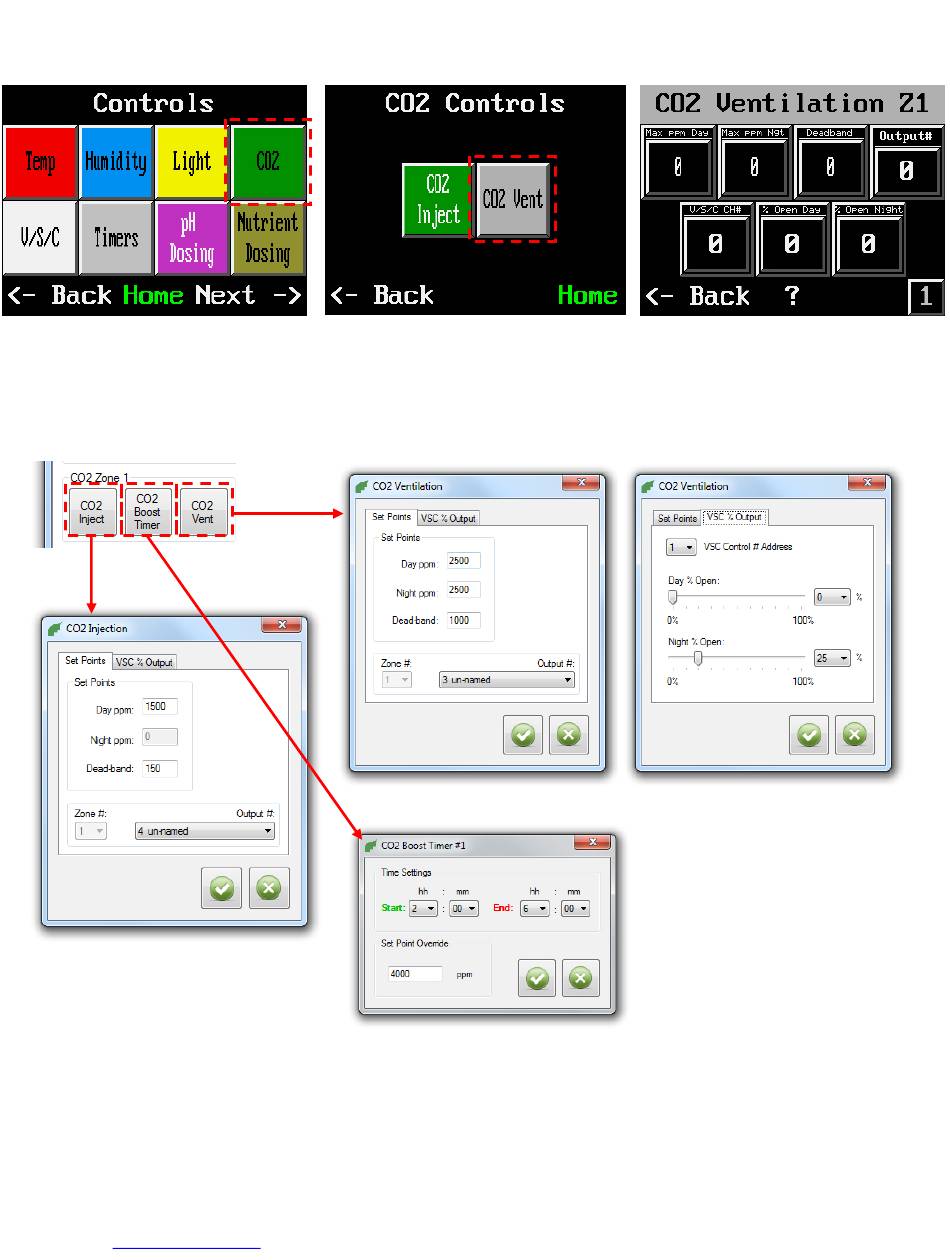

The CO controls are accessed from the "Controls" menu by touching the "CO2" button. Select between injection and
2
ventilation controls.
Press "CO2" button to access the CO
controls.
Software
The CO ventilation controls are accessed from the "CO2" controls group on the "Controls" tab.
2
Only settings applicable to injection
are shown.
www.agrowtek.com
Select ventilation settings.
2
Control set points and on/off
output selection.
© 2013 Agrowtek Inc.
| 83 Ambrogio Dr Suite H Gurnee, IL 60031 | agrowtek@agrowtek.com
Enter maximum ppm values, dead-
band, on/off output and/or VSC # and
minimum % open settings for VSC.
VSC % output settings.
Over-ride standard CO2 set-point
during the time interval.
22
