Operating concept

Display elements

Operating elements

Additional functionality

On-site operation

38

Human interface

Operator-oriented menu structure for user-specific tasks
• Commissioning
• Operation
• Diagnostics
• Expert level
Quick and safe commissioning
• Guided menus ("Make-it-run" wizards) for applications
• Menu guidance with brief explanations of the individual parameter functions
Reliable operation
• Local operation in several languages possible (® Product structure ® Feature 500 ® Additional Operation
Language)
• Standardized operation at the device and in the operating tools
Efficient diagnostics increase measurement reliability
• Remedy information is integrated in plain text
• Diverse simulation options and line recorder functions
• 4-line display
• Format for displaying measured values and status variables can be individually configured
• Permitted ambient temperature for the display: –20 to +70 °C (–4 to +158 °F)
The readability of the display may be impaired at temperatures outside the temperature range.
• Local operation with 3 push buttons ( ,
• Operating elements also accessible in various hazardous areas
The display module offers:
• Data backup function
The device configuration can be saved in the display module.
• Data comparison function
The device configuration saved in the display module can be compared to the current device configuration.
• Data transfer function
The transmitter configuration can be transmitted to another device using the display module.
1
2
2.1
2.2

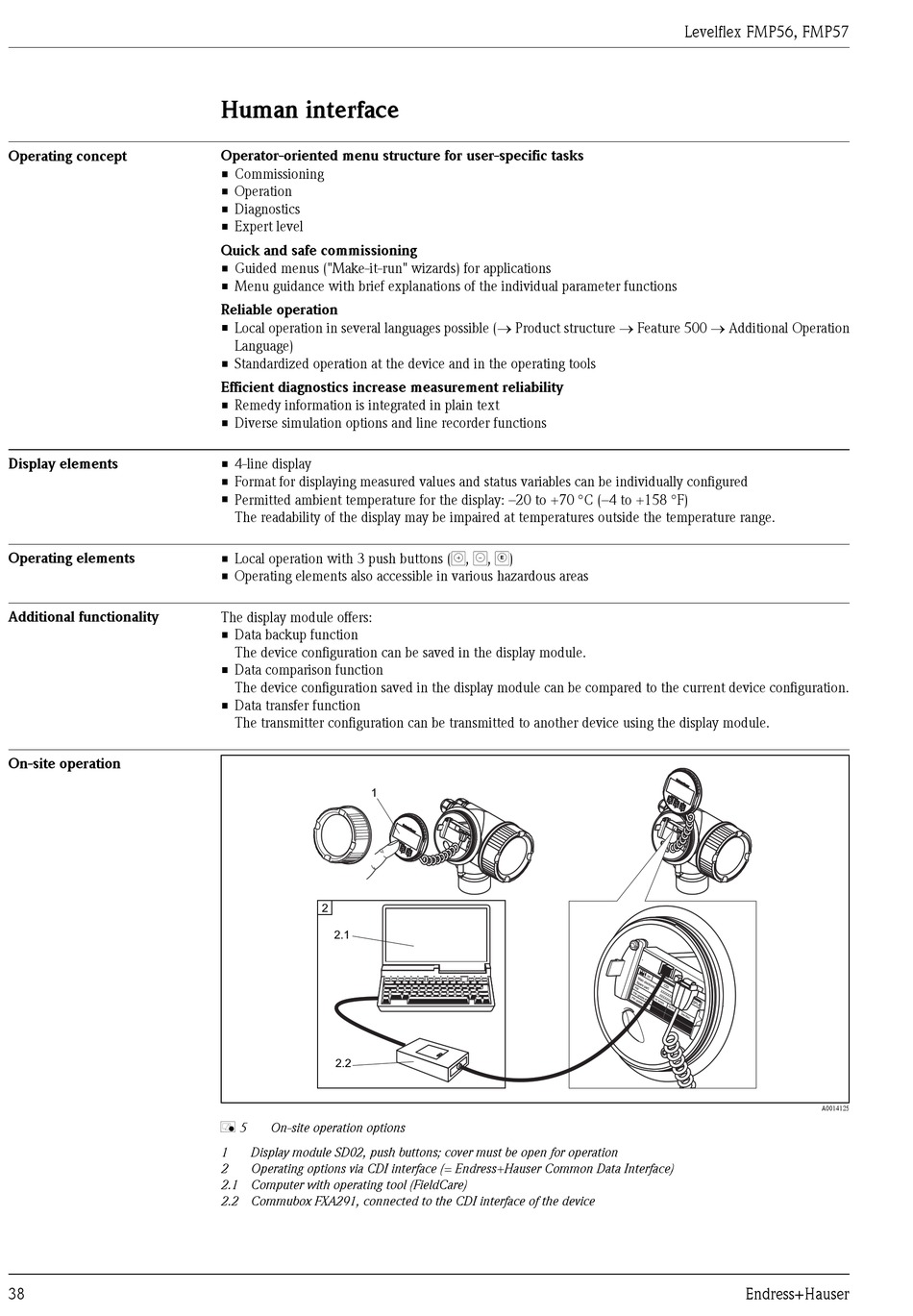

å 5 On-site operation options
1 Display module SD02, push buttons; cover must be open for operation
2 Operating options via CDI interface (= Endress+Hauser Common Data Interface)
2.1 Computer with operating tool (FieldCare)
2.2 Commubox FXA291, connected to the CDI interface of the device
, )
E
Levelflex FMP56, FMP57
A0014125
