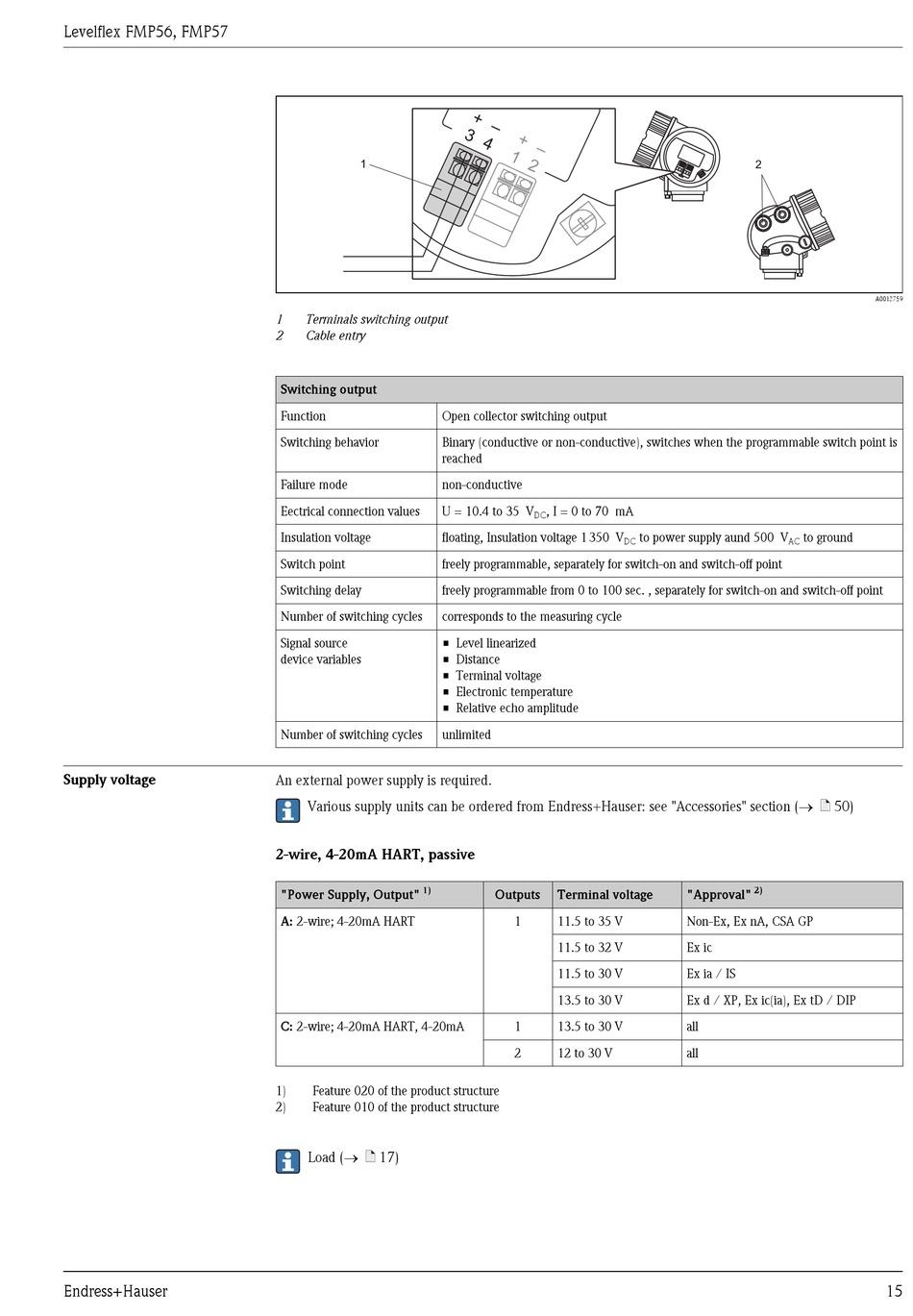

Levelflex FMP56, FMP57

Supply voltage

Endress+Hauser
1
1
Terminals switching output
2
Cable entry
Switching output
Function
Open collector switching output
Switching behavior
Binary (conductive or non-conductive), switches when the programmable switch point is
reached
Failure mode
non-conductive
Eectrical connection values
U = 10.4 to 35 V
Insulation voltage
floating, Insulation voltage 1 350 V
Switch point
freely programmable, separately for switch-on and switch-off point
Switching delay
freely programmable from 0 to 100 sec. , separately for switch-on and switch-off point
Number of switching cycles
corresponds to the measuring cycle
Signal source
• Level linearized
device variables
• Distance
• Terminal voltage
• Electronic temperature
• Relative echo amplitude
Number of switching cycles
unlimited
An external power supply is required.
Various supply units can be ordered from Endress+Hauser: see "Accessories" section (® ä 50)
2-wire, 4-20mA HART, passive
1)
"Power Supply, Output"
A: 2-wire; 4-20mA HART
C: 2-wire; 4-20mA HART, 4-20mA
1)
Feature 020 of the product structure
2)
Feature 010 of the product structure
Load (® ä 17)
, I = 0 to 70 mA
DC
to power supply aund 500 V
DC
Outputs
Terminal voltage
1
11.5 to 35 V
11.5 to 32 V
11.5 to 30 V
13.5 to 30 V
1
13.5 to 30 V
2
12 to 30 V
2
to ground
AC
2)
"Approval"
Non-Ex, Ex nA, CSA GP
Ex ic
Ex ia / IS
Ex d / XP, Ex ic(ia), Ex tD / DIP
all
all
A0013759
15
