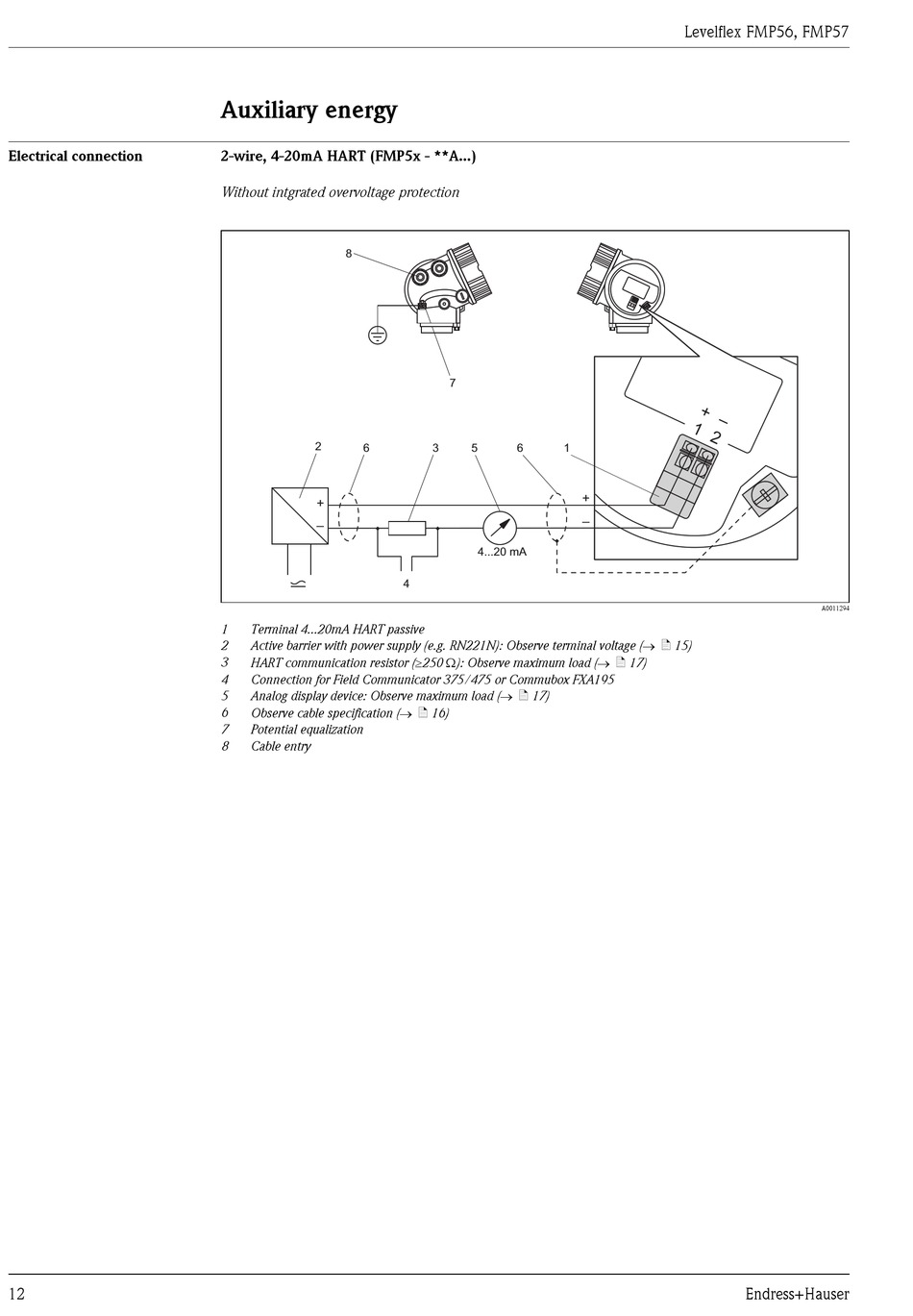

Electrical connection
12
Auxiliary energy
2-wire, 4-20mA HART (FMP5x - **A...)
Without intgrated overvoltage protection
8
2
6
+
–
1
Terminal 4...20mA HART passive
2
Active barrier with power supply (e.g. RN221N): Observe terminal voltage (® ä 15)
3
HART communication resistor (³250 W): Observe maximum load (® ä 17)
4
Connection for Field Communicator 375/475 or Commubox FXA195
5
Analog display device: Observe maximum load (® ä 17)
6
Observe cable specification (® ä 16)
7
Potential equalization
8
Cable entry
7
3
5
6
1
4...20 mA
4
Levelflex FMP56, FMP57
+
–
Endress+Hauser
A0011294
