System integration
40
System integration via PROFIBUS PA
A maximum of 32 devices (8 if mounted in an explosion hazardous location EEx ia IIC according to FISCO-
model) can be connected to the bus. The segment coupler provides the operating voltage to the bus. Both on-
site as well as remote operation are possible.
2
1
ENDRESS + HAUSER
PROFIBUS PA
Micropilot
å 7

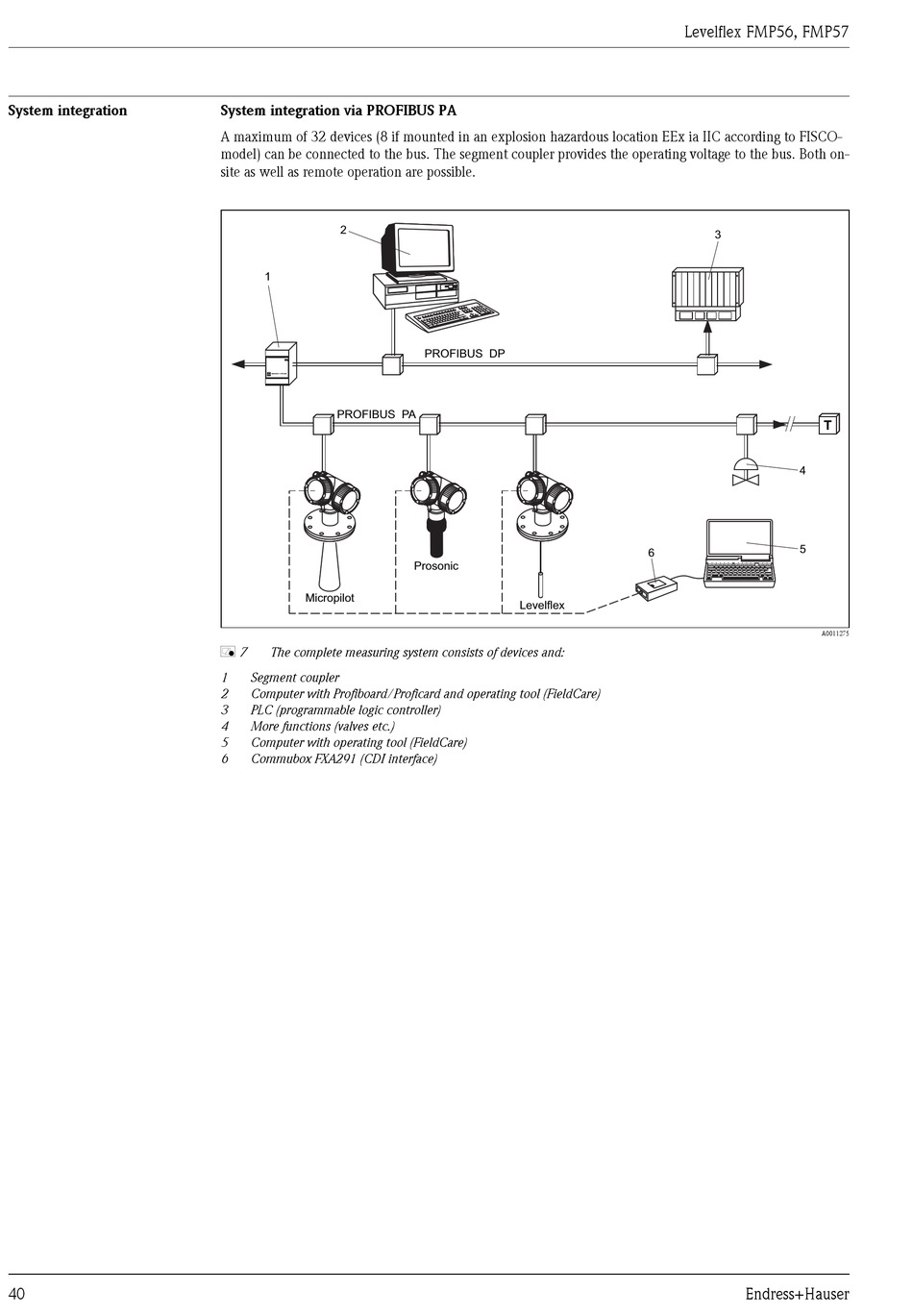

The complete measuring system consists of devices and:
1
Segment coupler
2
Computer with Profiboard/Proficard and operating tool (FieldCare)
3
PLC (programmable logic controller)
4
More functions (valves etc.)
5
Computer with operating tool (FieldCare)
6
Commubox FXA291 (CDI interface)
PROFIBUS DP
Prosonic
Levelflex
Levelflex FMP56, FMP57
3
4
5
6
Endress+Hauser
T
A0011275
