Integrated in tank gauging system
The Endress+Hauser Tank Side Monitor NRF590 provides integrated communications for sites with multiple
tanks, each with one or more sensors on the tank, such as radar, spot or average temperature, capacitive probe
for water detection and/or pressure sensors. Multiple protocols out of the Tank Side Monitor guarantee
connectivity to nearly any of the existing industry standard tank gauging protocols. Optional connectivity of
analog 4...20 mA sensors, digital I/O and analog output simplify full tank sensor integration. Use of the proven
concept of the intrinsically safe HART bus for all on-tank sensors yields extremely low wiring costs, while at
the same time providing maximum safety, reliability and data availability.
1
8

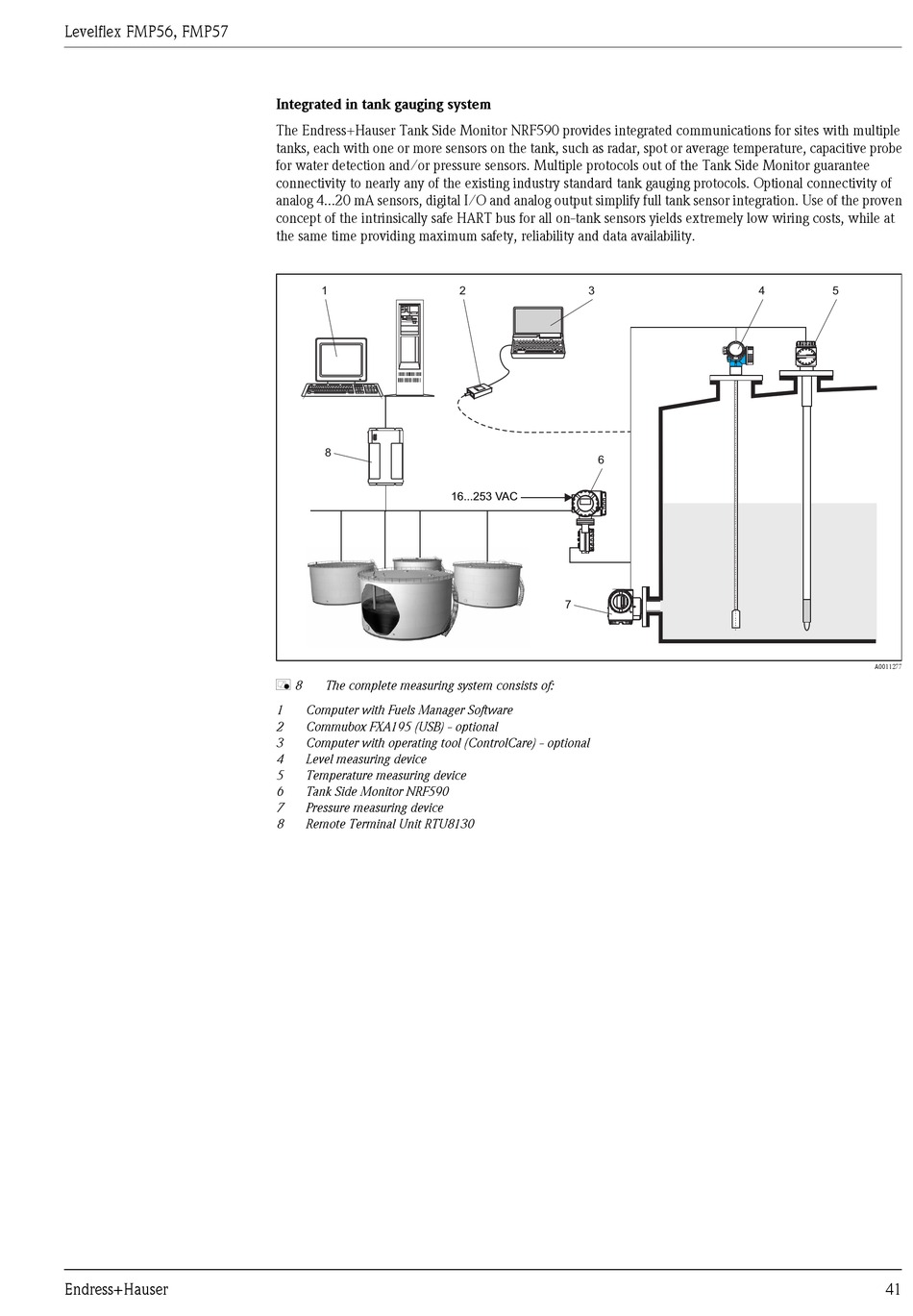

å 8 The complete measuring system consists of:
1 Computer with Fuels Manager Software
2 Commubox FXA195 (USB) - optional
3 Computer with operating tool (ControlCare) - optional
4 Level measuring device
5 Temperature measuring device
6 Tank Side Monitor NRF590
7 Pressure measuring device
8 Remote Terminal Unit RTU8130
