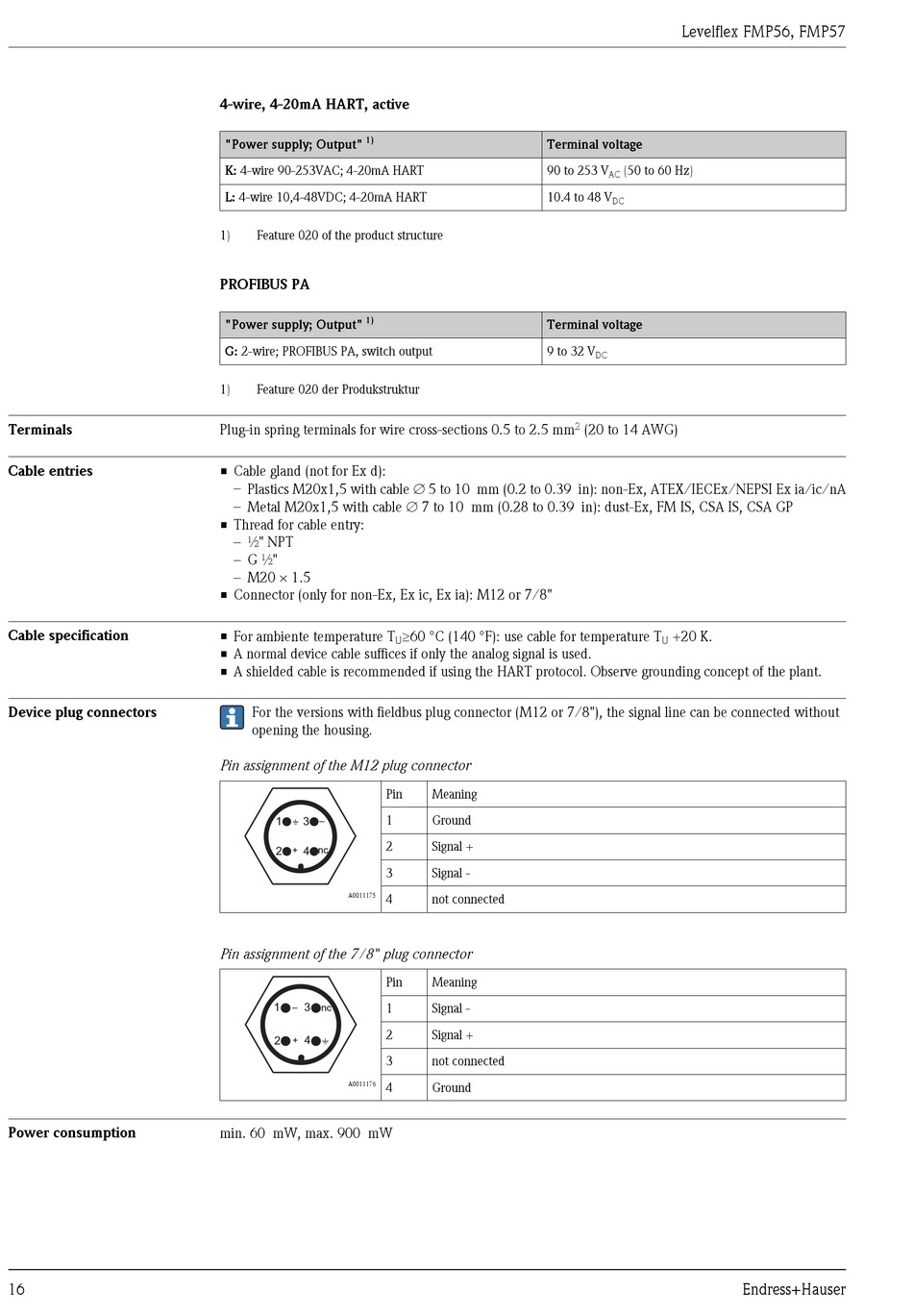

Terminals; Cable Entries; Cable Specification; Device Plug Connectors - Endress+Hauser Levelflex FMP56 Manual

Terminals

Cable entries

Cable specification

Device plug connectors

Power consumption

16
4-wire, 4-20mA HART, active
1)
"Power supply; Output"
K: 4-wire 90-253VAC; 4-20mA HART
L: 4-wire 10,4-48VDC; 4-20mA HART
1) Feature 020 of the product structure
PROFIBUS PA
1)
"Power supply; Output"
G: 2-wire; PROFIBUS PA, switch output
1) Feature 020 der Produkstruktur
Plug-in spring terminals for wire cross-sections 0.5 to 2.5 mm
• Cable gland (not for Ex d):
– Plastics M20x1,5 with cable Æ 5 to 10 mm (0.2 to 0.39 in): non-Ex, ATEX/IECEx/NEPSI Ex ia/ic/nA
– Metal M20x1,5 with cable Æ 7 to 10 mm (0.28 to 0.39 in): dust-Ex, FM IS, CSA IS, CSA GP
• Thread for cable entry:
– ½" NPT
– G ½"
– M20 × 1.5
• Connector (only for non-Ex, Ex ic, Ex ia): M12 or 7/8"
• For ambiente temperature T
• A normal device cable suffices if only the analog signal is used.
• A shielded cable is recommended if using the HART protocol. Observe grounding concept of the plant.
For the versions with fieldbus plug connector (M12 or 7/8"), the signal line can be connected without
opening the housing.
Pin assignment of the M12 plug connector
Pin
1
1 3
–
2
2 nc
+ 4
3
4
A0011175
Pin assignment of the 7/8" plug connector
Pin
1
1 3
– nc
2
2 4
+
3
A0011176 4
min. 60 mW, max. 900 mW
Terminal voltage
90 to 253 V
10.4 to 48 V
Terminal voltage
9 to 32 V
³60 °C (140 °F): use cable for temperature T
U
Meaning
Ground
Signal +
Signal -
not connected
Meaning
Signal -
Signal +
not connected
Ground
Levelflex FMP56, FMP57
(50 to 60 Hz)
AC
DC
DC
2 (20 to 14 AWG)
+20 K.
U
Endress+Hauser
