26

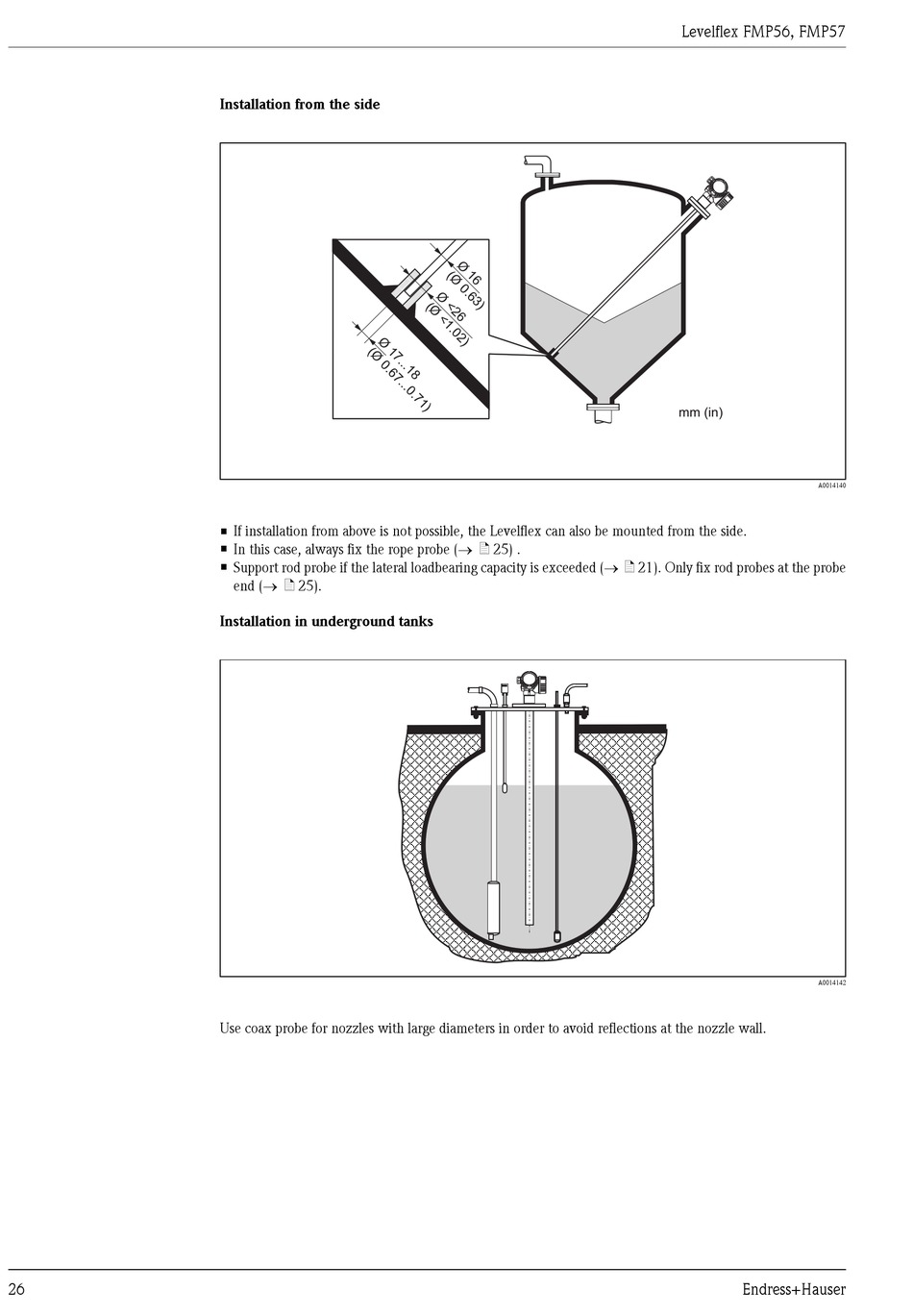

Installation from the side
• If installation from above is not possible, the Levelflex can also be mounted from the side.
• In this case, always fix the rope probe (® ä 25) .
• Support rod probe if the lateral loadbearing capacity is exceeded (® ä 21). Only fix rod probes at the probe
end (® ä 25).
Installation in underground tanks
Use coax probe for nozzles with large diameters in order to avoid reflections at the nozzle wall.
Levelflex FMP56, FMP57
mm (in)
A0014140
A0014142
Endress+Hauser
