24

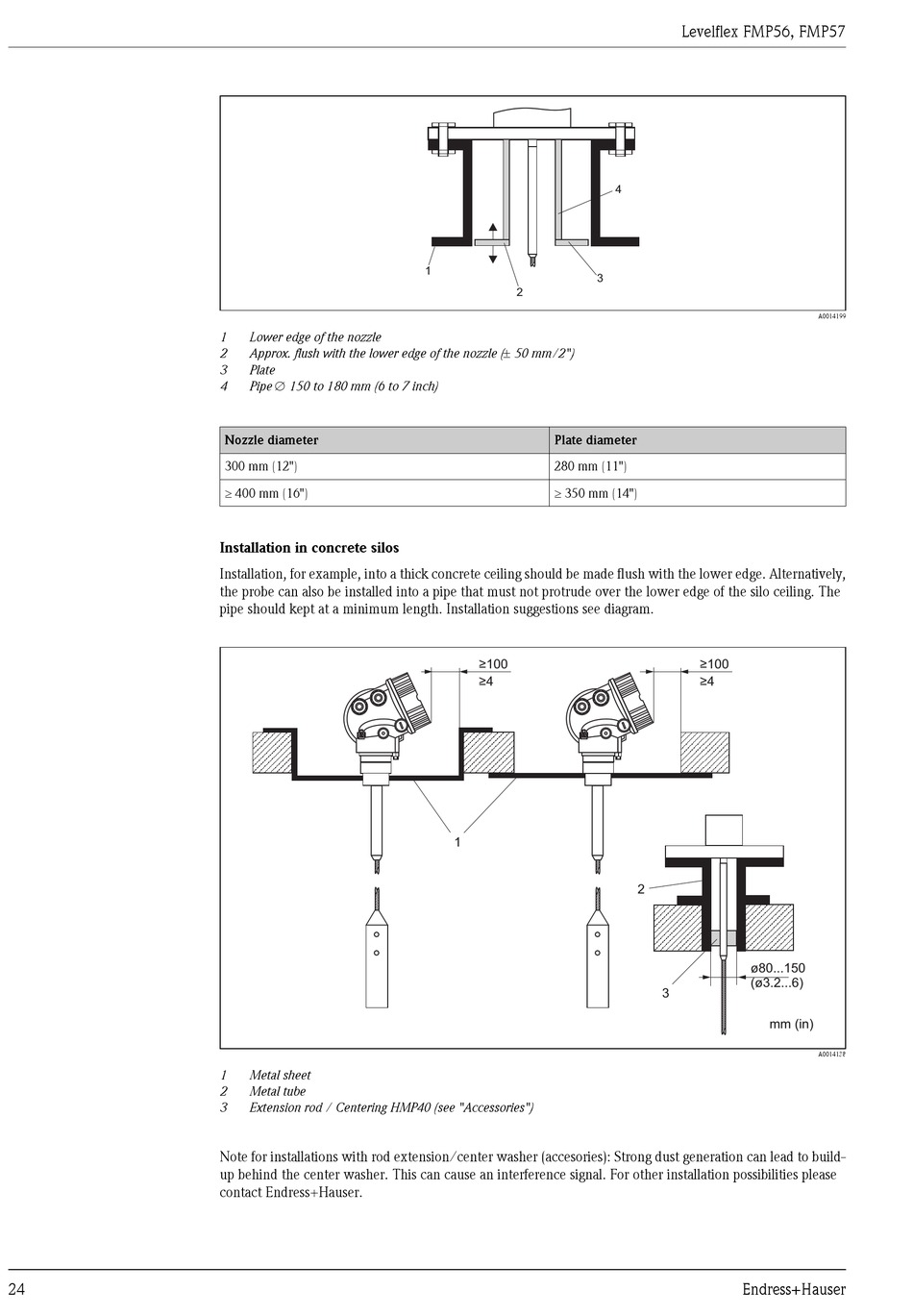

1 Lower edge of the nozzle
2 Approx. flush with the lower edge of the nozzle (± 50 mm/2")
3 Plate
4 Pipe Æ 150 to 180 mm (6 to 7 inch)
Nozzle diameter
300 mm (12")
³ 400 mm (16")
Installation in concrete silos
Installation, for example, into a thick concrete ceiling should be made flush with the lower edge. Alternatively,
the probe can also be installed into a pipe that must not protrude over the lower edge of the silo ceiling. The
pipe should kept at a minimum length. Installation suggestions see diagram.
1 Metal sheet
2 Metal tube
3 Extension rod / Centering HMP40 (see "Accessories")
Note for installations with rod extension/center washer (accesories): Strong dust generation can lead to build-
up behind the center washer. This can cause an interference signal. For other installation possibilities please
contact Endress+Hauser.
1
2
Plate diameter
280 mm (11")
³ 350 mm (14")
100
≥
4
≥
1
Levelflex FMP56, FMP57
4
3
100
≥
4
≥
2
ø80...150
(ø3.2...6)
3
Endress+Hauser
A0014199
mm (in)
A0014138
