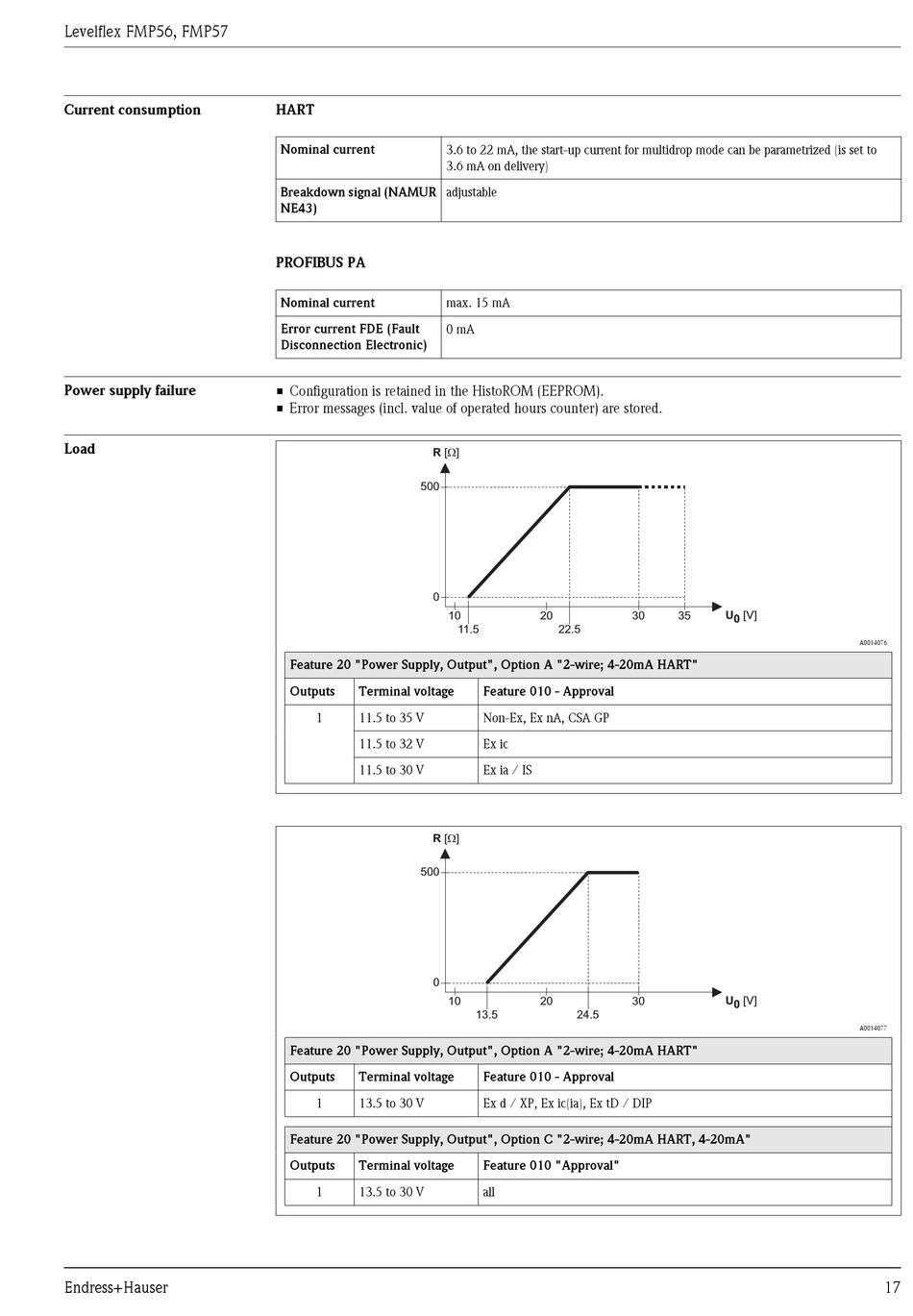

Current consumption

Power supply failure

Load

Endress+Hauser
HART
Nominal current 3.6 to 22 mA, the start-up current for multidrop mode can be parametrized (is set to
3.6 mA on delivery)
Breakdown signal (NAMUR adjustable
NE43)
PROFIBUS PA
Nominal current
max. 15 mA
Error current FDE (Fault 0 mA
Disconnection Electronic)
• Configuration is retained in the HistoROM (EEPROM).
• Error messages (incl. value of operated hours counter) are stored.
R [ ] W
500
0
Feature 20 "Power Supply, Output", Option A "2-wire; 4-20mA HART"
Outputs Terminal voltage
1 11.5 to 35 V
11.5 to 32 V
11.5 to 30 V
R [ ] W
500
0
Feature 20 "Power Supply, Output", Option A "2-wire; 4-20mA HART"
Outputs Terminal voltage
1 13.5 to 30 V
Feature 20 "Power Supply, Output", Option C "2-wire; 4-20mA HART, 4-20mA"
Outputs Terminal voltage
1 13.5 to 30 V
10 20
11.5 22.5
Feature 010 - Approval
Non-Ex, Ex nA, CSA GP
Ex ic
Ex ia / IS
10 20
13.5 24.5
Feature 010 - Approval
Ex d / XP, Ex ic(ia), Ex tD / DIP
Feature 010 "Approval"
all
30 35 U 0 [V]
U 0 [V]
30
