Loading Tickets into Feeding Mechanism

When loading new ticket stacks, be sure that there is power to the printer. The first ticket
of the stack must be inserted into the printer by hand. The Epic Edge™ printers' ticket
tray is integrated with a guide to direct the ticket into the printer mechanism. Once the
leading ticket enters the Top of Form sensor, the ticket will be automatically fed into the
Printer Mechanism.

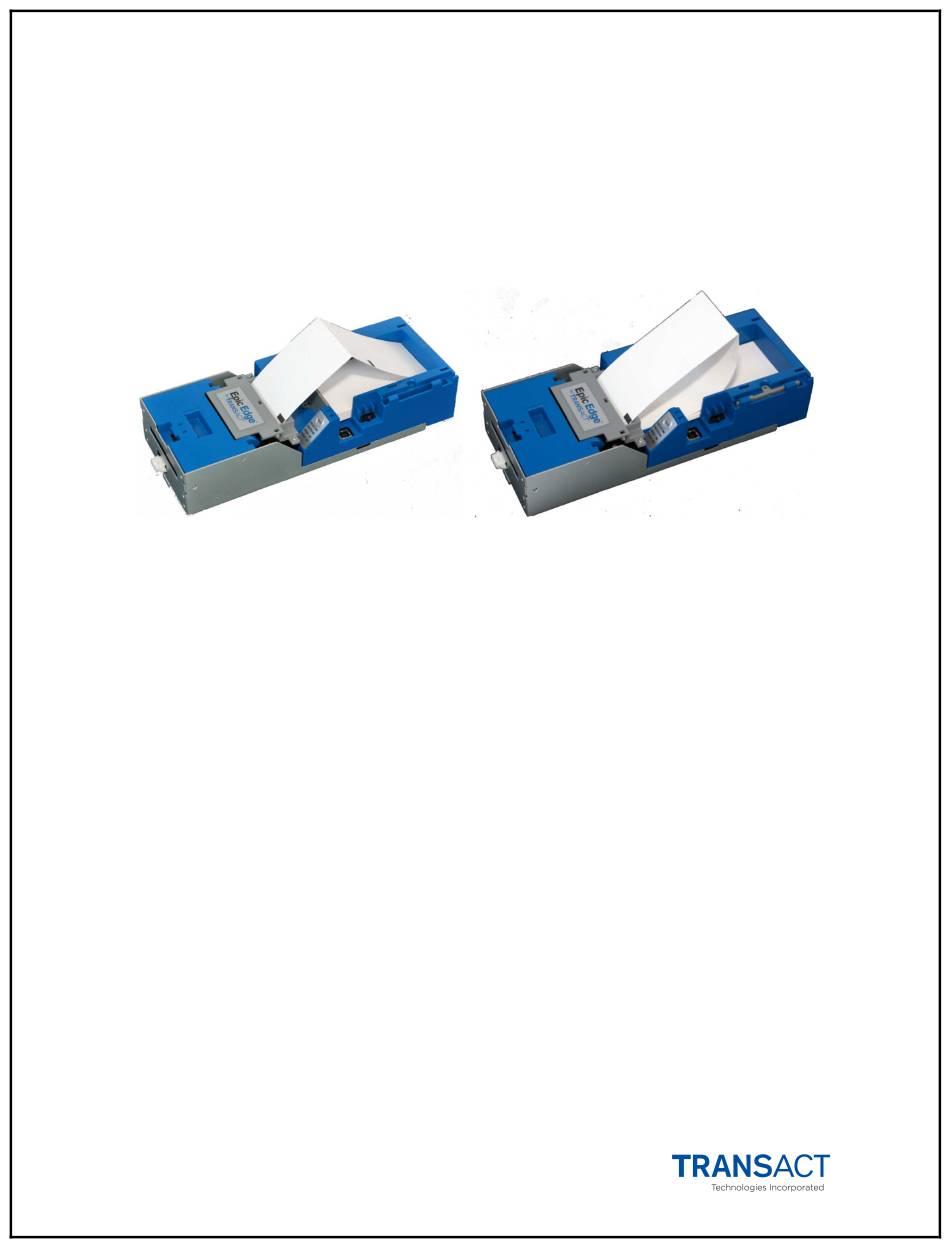

Figure 16. Ticket Loading and Ticket Feed Mechanism

Loading tickets into the ticket supply box: (Refer to the label on printer)
•
Load tickets into the ticket supply tray, making sure that the Black Dot is
positioned as shown in Figure 16.
•
Orient the tickets so that the Black Dot is towards the leading edge of the ticket.
Feeding tickets into the Printer Mechanism: (Refer to the label on printer)
•
Check to ensure that the tickets have been placed in the ticket tray with the
proper black dot orientation.
•
Insert the leading ticket into the Printer Mechanism's insertion guide area. The
ticket should be fed about a ½" into the mechanism; the printer will automatically
detect the presence of the ticket and will automatically complete the loading
process.
•
If printer has been slid out from rack, make sure that the inner chassis is returned
to the closed position. .
•
The printer is ready to receive information.
